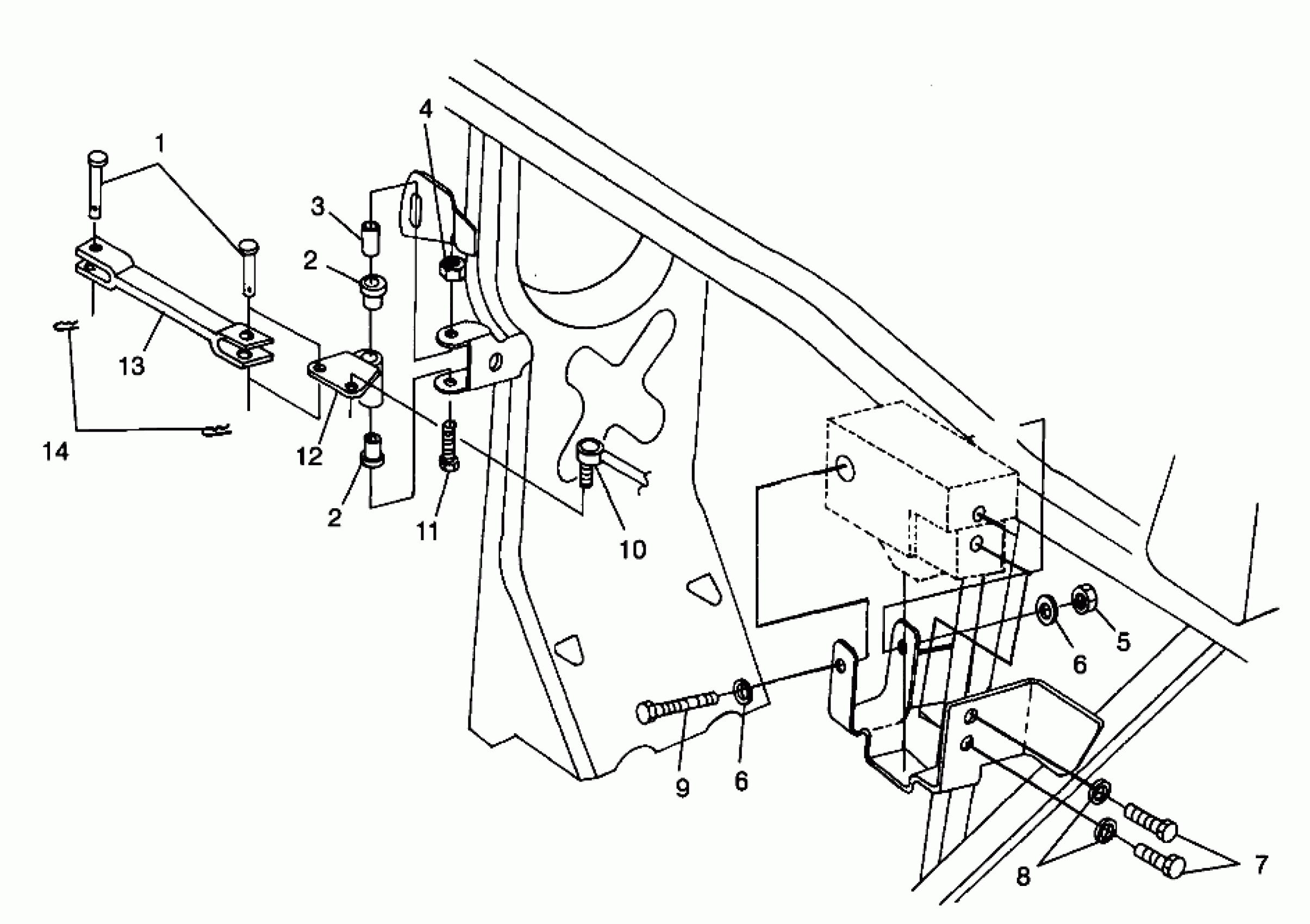

Polaris SPORTSMAN 500 - W98CH50AB FRAME MOUNTING - W98CH50A (4945714571c002) Diagram

#

Description
Price

1

PIN,CLEVIS

7661013

$5.59

2

BUSHING-PEDAL PIVOT

5431107

$8.79

2

BUSHING-PEDAL PIVOT

5431107

$8.79

3

TUBE,PIVOT,(INTERNAL)

5020850

$39.99

4

NUT(10)

7542124

Unavailable

5

NUT-LOCK(10)

7542122

$1.49

6

WASHER(10)

7558301

$1.49

6

WASHER(10)

7558301

$1.49

7

BOLT(10)

7512269

Unavailable

8

WASHER(10)

7552605

$5.27

9

BOLT(10)

7512249

Unavailable

10

Rod End, LH (See Footnote) (See Gear Selector Pg. C14, Ref. 20)

-------

Unavailable

11

SCREW(10)

7512144

Unavailable

12

PIVOT,SHIFT,BLK

1040494-067

Unavailable

13

ARM, SHIFT,(MACH)

5131277

Unavailable

14

PIN, COTTER(10)

7661103

$4.99
