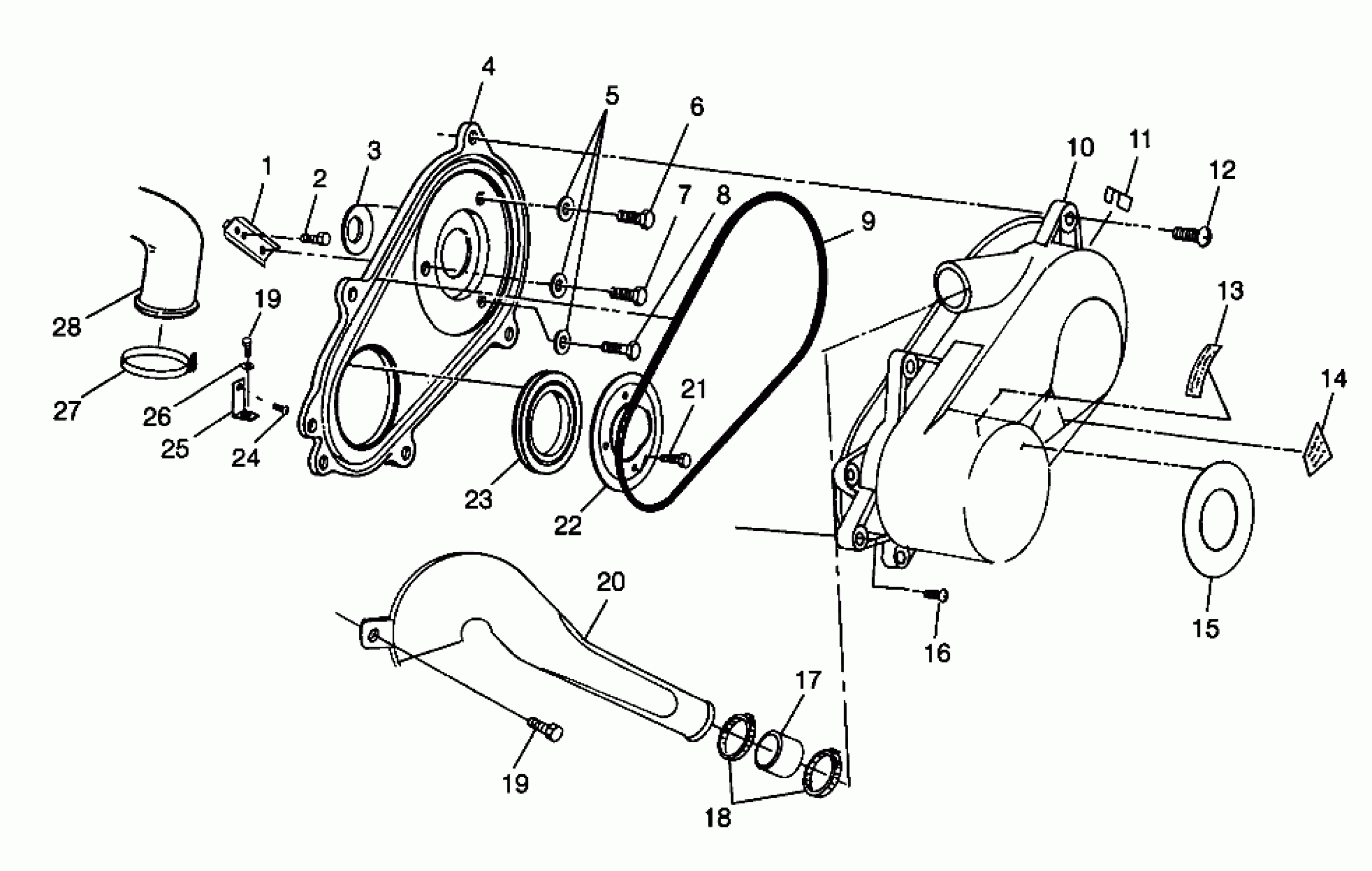

Polaris SPORTSMAN 500 - W98CH50AB CLUTCH COVER - W98CH50A (4945714571c006) Diagram

#

Description
Price

1

BRKT,R.CLUTCH CVR,BLK.

1040519-067

Unavailable

2

BOLT(10)

7512240

$3.97

3

SEAL,COVER CASE

5410489

$13.75

4

KIT,CVR,IN.CLUTCH,(500) Substituted by 2201160 (Incl. 12,16,24)

2200793

Unavailable

5

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

6

BOLT(10)

7512247

Unavailable

7

BOLT(10)

7512277

$4.76

8

BOLT(10)

7512278

Unavailable

9

SEAL,CLUTCHCOVER

5521301

$32.37

10

COVER,CLUTCH,FRONT Substituted by 5433542

5431961

$190.22

11

CLIP,CLUTCH COVER(10)

7670051

Unavailable

12

SCREW(10)

7512093

$1.19

13

DECAL,CLUTCH COVER Substituted by 7078689

7074946

Unavailable

14

DECAL,ENG/CLUTCH MOD. Substituted by 7078689

7077377

Unavailable

15

DECAL,AUTO.TRANSMISSION

7074782

Unavailable

16

SCREW(10)

7512094

$1.59

17

BOOT,CLUTCH INTAKE

5410421

$11.32

18

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

19

BOLT(10)

7512232

$1.19

19

BOLT(10)

7512232

$1.19

20

DUCT,OUTLET,CLUTCH

5432145

Unavailable

21

Screw & Washer (See Crankcase Pg. D4, Ref. 6)

----

Unavailable

22

BRKT,RETAINER SEAL,BLK. Substituted by 5242046-067

5240409-067

$36.41

23

Seal, Cover Case

5410575

$44.51

24

SCREW(10)

7512095

$4.76

25

BRKT-CLUTCH COVER,BLK

5241156-067

Unavailable

26

WASHER(10)

7555935

$2.38

27

CLAMP, NARROW BAND(10)

7080511

$4.76

28

Duct, Air Inlet, Clutch (See Air Box Pg. B3, Ref. 13)

----

Unavailable
