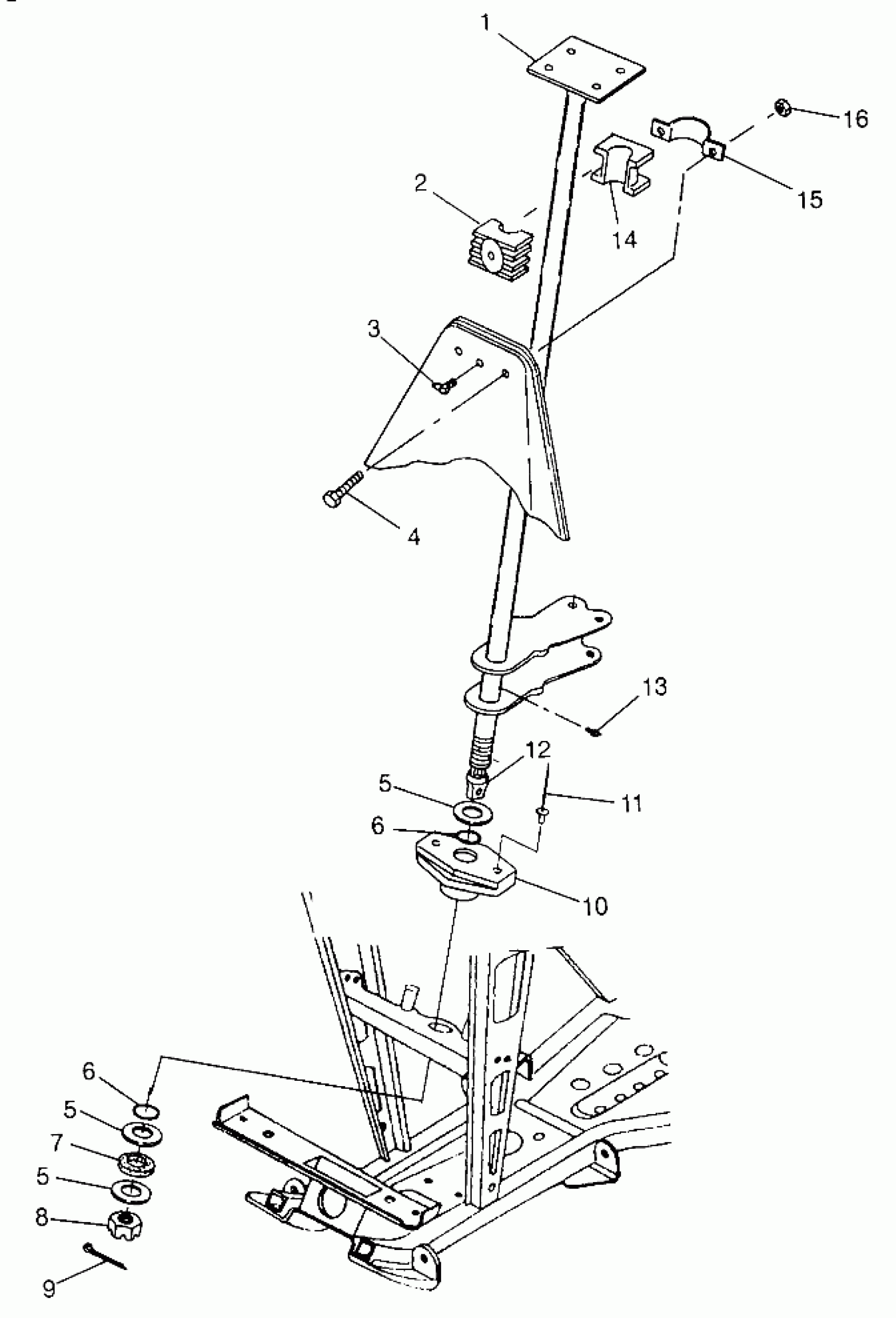

Polaris SPORTSMAN 500 - W97CH50A STEERING POST SPORTSMAN 500 W97CH50A (4939993999B013) Diagram

#

Description
Price

1

POST,STRG.ASM. (Incl. 12, 13)

1843051

Unavailable

2

BUSHING,STRG.CONSOLE Substituted by 5433415

5431573

$8.48

3

FITTING-LUBRICATION 1/4-28

7080424

$4.79

4

SCREW(10)

7512310

$2.39

5

PIN, COTTER(10)

7661633

Unavailable

5

PIN, COTTER(10)

7661633

Unavailable

5

PIN, COTTER(10)

7661633

Unavailable

6

BUSHING(10)

7555878

$7.19

6

BUSHING(10)

7555878

$7.19

7

O-RING

5410772

$5.59

8

SPACER, STRG.POST

5431571

Unavailable

9

NUT, HEX, SLOTTED(10)

7543203

$9.59

10

BUSHING,LOWER STRG.

5431570

$44.99

11

RIVET, MONOBOLT (50)

7661632

$4.79

12

PLUG,GREASE,STRG.

5431574

Unavailable

13

ZERK,FITTING,THREADED(10)

7080433

$1.49

14

BUSHING,STRG.CONSOLE Substituted by 5433416

5431572

$8.73

15

BRKT,UP.STRG.BUSH,BLK.

5222999-067

$32.37

16

NUT-5/16-18 NYLOK-Y

7542324

$1.49
