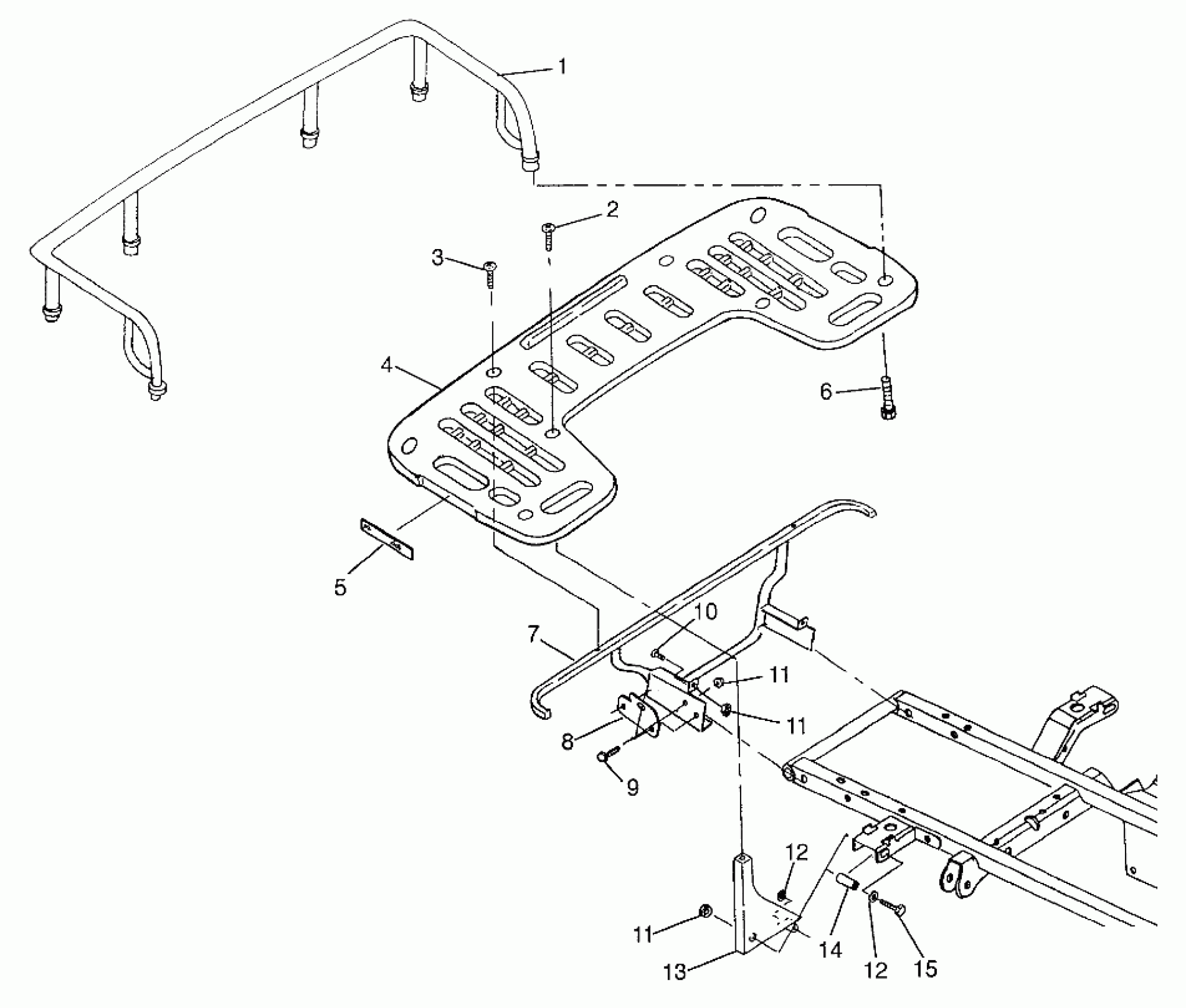

Polaris SPORTSMAN 500 - W97CH50A REAR RACK MOUNTING SPORTSMAN 500 W97CH50A (4939993999A008) Diagram

#

Description
Price

1

RACK EXT,REAR,GENIV,3.5" (Incl. 6)

2871501

$73.95

2

SCREW(10)

7515193

$1.59

3

SCREW(10) Substituted by 7517685

7515194

$1.59

4

RACK ASM,REAR Substituted by 2670174-070 (Incl. Ref. 5 & Warning Decal)

2670174

Unavailable

5

REFLECTOR RED

2670070

$9.84

6

SCREW(10)

7512307

$3.97

7

SUPPORT,R.RACK,(500),BLK

1040490-067

Unavailable

8

BRKT,SILENCER,FRAME,BLK

5241663-067

$10.51

9

BOLT(10)

7512329

$3.97

10

Screw

7517264

$3.97

11

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

11

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

11

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

12

WASHER(10) Substituted by 7558402

7555770

$0.99

12

WASHER(10) Substituted by 7558402

7555770

$0.99

13

MNT,LH.FRT,R.RACK,BLK

1040524-067

Unavailable

13

MNT,RH.FRT,R.RACK,BLK.

1040525-067

Unavailable

14

Spacer

5333332-067

$6.59

15

SCREW(10)

7515385

$5.56
