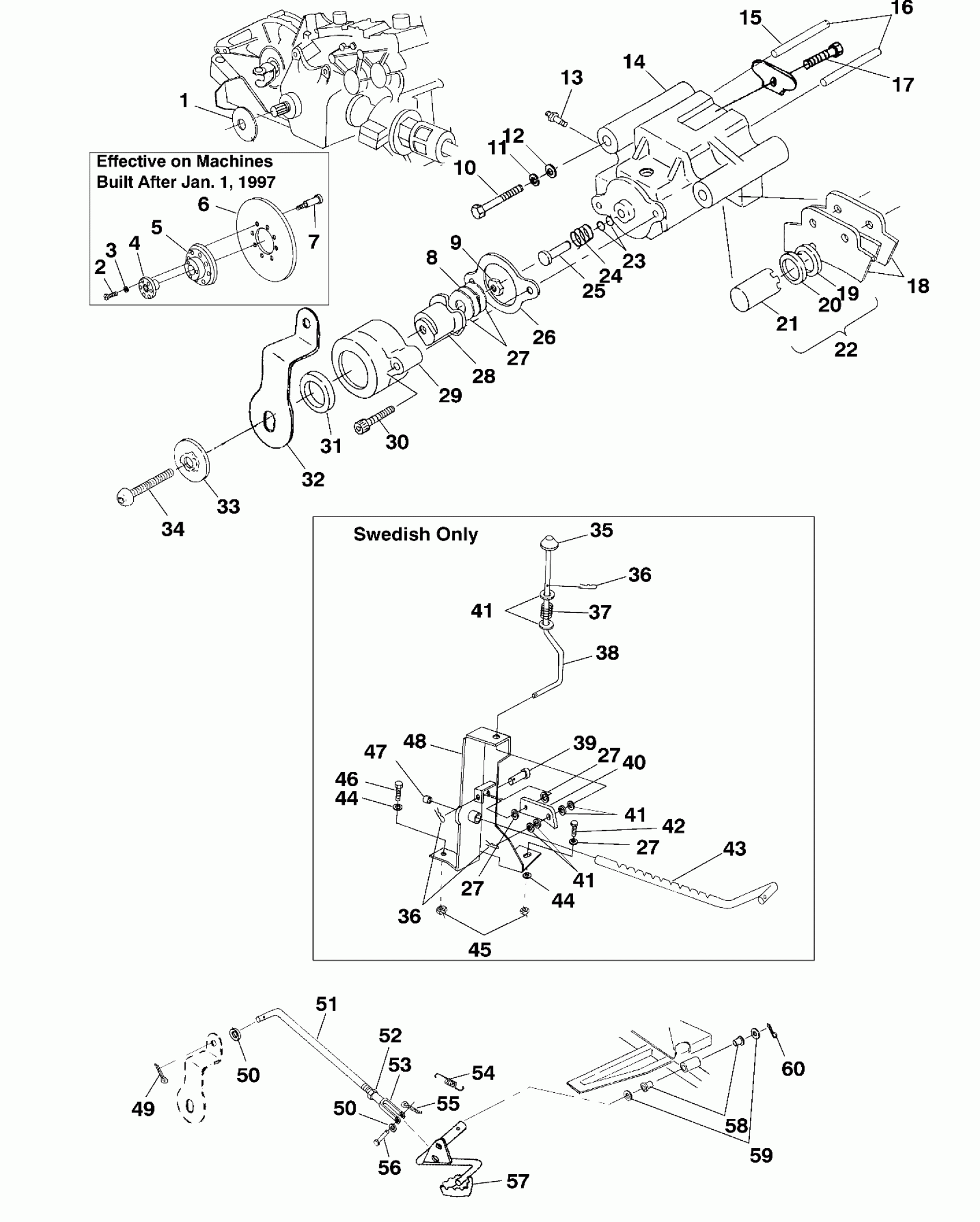

Polaris SPORTSMAN 500 - W97CH50A REAR BRAKE - W97CH50A (4939993999C007) Diagram

#

Description
Price

1

DISC ASM,BRAKE (Incl. 2-7)

1910188

Unavailable

2

SCREW

7517372

$2.22

3

LOCK WASHER(10)

7552801

$1.59

4

HUB,LOCKING

5131675

$55.09

5

HUB,FLOATING DISC

5131676

Unavailable

6

DISC,BRAKE,FLOAT.HUB

5211835

$205.99

7

PIN,FLOATING DISC Substituted by 5020960

5020939

Unavailable

8

WASHER(10)

7555921

Unavailable

9

NUT, LH(10)

7542149

$5.40

10

BOLT(10)

7515345

$5.56

11

LOCK WASHER(10)

7552901

$1.19

12

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

13

SCREW,BLEEDER

7080352

$3.17

14

CALIPER ASM,R.BRAKE (Incl. 8,9,13,14,17,19,20,24,26-34)

1910225

Unavailable

14

CALIPER,R.BRAKE,MACH

5131260

Unavailable

15

PLATE,BRAKE CALIPER

5211668

Unavailable

16

PIN, DOWEL(10)

7661820

$13.99

17

SCREW, SEMS(10)

7512020

$2.38

18

KIT,BRAKEPAD,REAR

2200464

$66.65

18

KIT,R.BRAKEPAD,HVY.DUTY

2200899

Unavailable

19

SQUARE RING-MOLDED (.134) (.134 Sq.)

5410766

$12.13

20

RING, SQUARE,(1''DIAM.) Substituted by 2200463 (.099 Sq.)

5410767

$97.76

21

PISTON,BRAKE Substituted by 2200463

5020667

$97.76

22

KIT-PISTON & SEAL (Incl. 19-21)

2200463

$97.76

23

O RING-.364X.504X.07

5410542

$4.84

24

SPRING,BRAKE,COMP.

7041219

Unavailable

25

PIN,BRAKE CALIPER

5020791

Unavailable

26

GASKET, BRAKE

5830009

Unavailable

27

WASHER(10)

7555827

$3.97

27

WASHER(10)

7555827

$3.97

27

WASHER(10)

7555827

$3.97

27

WASHER(10)

7555827

$3.97

28

RAMP,MOVE.BRAKE(THRD PIN)

5630650

Unavailable

29

RAMP,STAT.BRAKE(D/C)

5630652

Unavailable

30

SCREW(10)

7512173

Unavailable

31

SEAL, BRAKE

3610026

Unavailable

32

ARM,BRAKE CALIPER

5241458

Unavailable

33

WASHER(10)

7571632

Unavailable

34

BOLT,LH SOC/HD.

7515160

Unavailable

35

PUSHNUT, RED(10) (SWED)

7670063

Unavailable

36

PIN, COTTER(10) (SWED)

7661010

$1.19

36

PIN, COTTER(10) (SWED)

7661010

$1.19

37

SPRING (SWED)

7041365

Unavailable

38

ROD,BRAKE LOCK (SWED)

5224759

Unavailable

39

PIN,CLEVIS (SWED)

7661014

$3.81

40

PAWL,BRAKE,SWEDISH (SWED)

5241794

Unavailable

41

WASHER, FLAT(10) (SWED)

7558201

$5.79

41

WASHER, FLAT(10) (SWED)

7558201

$5.79

41

WASHER, FLAT(10) (SWED)

7558201

$5.79

42

SCREW, SEMS(10) (SWED)

7512283

$3.97

43

ROD,RATCHET (SWED)

5241795

$19.05

44

WASHER, FLAT(10) (SWED)

7555859

$1.19

44

WASHER, FLAT(10) (SWED)

7555859

$1.19

45

NUT(10) (SWED)

7542124

$1.19

46

BOLT(10) (SWED)

7512232

$1.19

47

BUSHING,OPEN/CLOSE(10) (SWED)

7080399

Unavailable

48

DESC NOT_AVAILABLE (SWED)

1910218-067

Unavailable

49

PIN COTTER(10)

7661203

$1.19

50

WASHER(10)

7555806

$0.79

50

WASHER(10)

7555806

$0.79

51

BRAKE ASM,LINK.ROD (Incl. 31,32,34)

1910208

Unavailable

51

ROD, BRAKE Substituted by 1910208

5224648

Unavailable

52

NUT(10)

7546701

$3.97

53

CLEVIS,THREADED

7080545

$2.19

54

SPRING, EXHAUST(10)

7042031

$6.46

55

PIN, COTTER(10)

7661103

Unavailable

56

CLEVIS(10) (US Only)

7661843

$2.38

57

BRAKE,FOOT,BLK

1910190-067

Unavailable

58

BUSHING-PEDAL PIVOT

5431107

$8.73

59

WASHER(10)

7555919

$4.99

60

COTTER PIN(10)

7661401

$0.79
