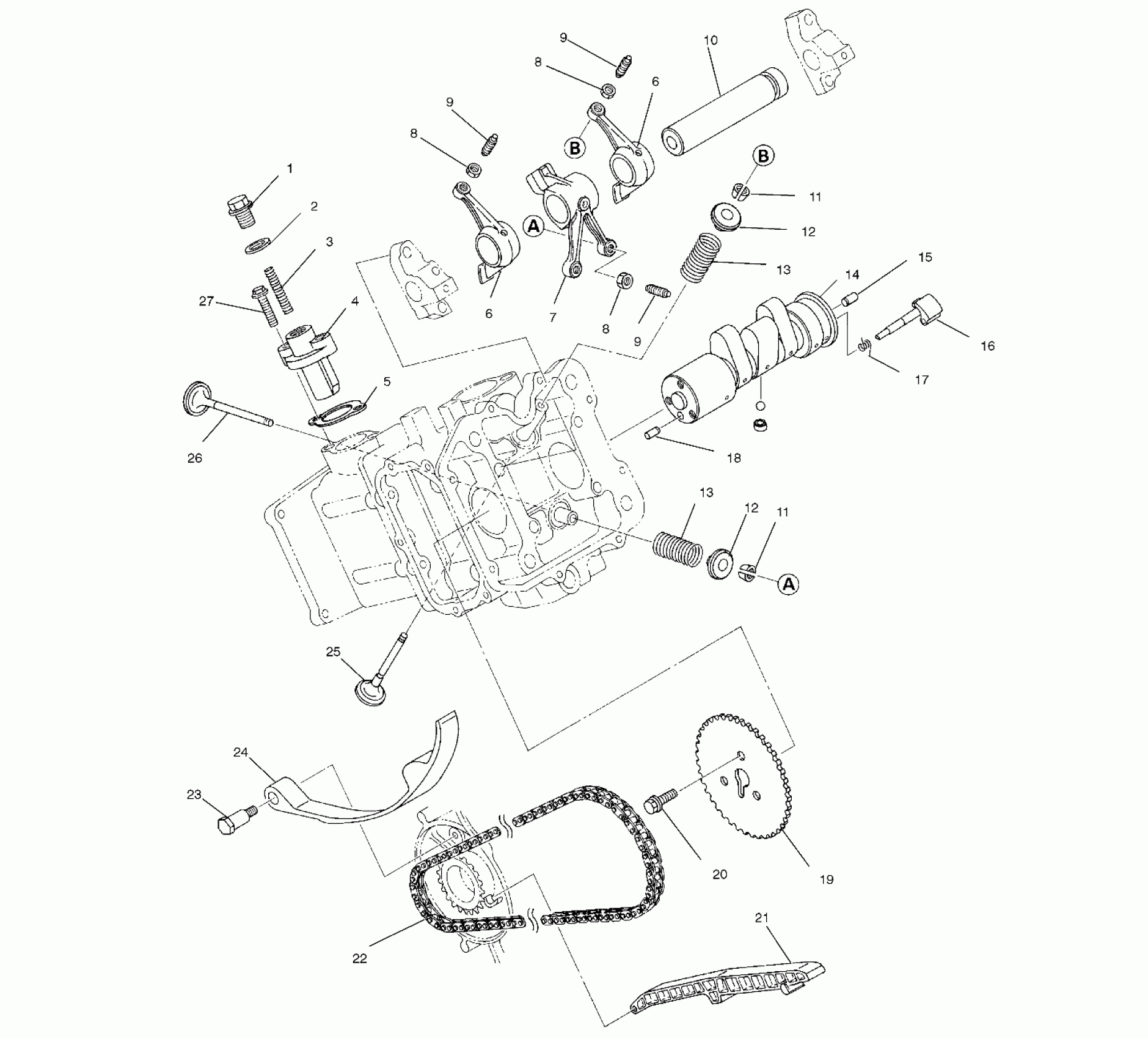

Polaris SPORTSMAN 500 - W97CH50A INTAKE and EXHAUST - W97CH50A (4939993999D007) Diagram

#

Description
Price

1

PLUG

3084845

Unavailable

2

Gasket, Plug

3084920

Unavailable

3

SPRING,TENSIONER

3084919

Unavailable

4

TENSIONER ASM. (Incl. 1-3)

3084918

Unavailable

5

GASKET,TENSIONER

3084922

Unavailable

6

ROCKERARM ASM,INTAKE * (Incl. 8,9)

3084910

$125.46

6

ROCKERARM ASM,INTAKE * (Incl. 8,9)

3084910

$125.46

7

ROCKERARM ASM,EXHAUST * (Incl. 8,9)

3084913

$166.24

8

NUT(10)

3084912

$3.97

8

NUT(10)

3084912

$3.97

8

NUT(10)

3084912

$3.97

9

SCREW, ADJ.

3084911

$9.52

9

SCREW, ADJ.

3084911

$9.52

9

SCREW, ADJ.

3084911

$9.52

10

SHAFT,ROCKER

3084909

$52.60

11

COLLET,VALVE

3084908

$4.84

11

COLLET,VALVE

3084908

$4.84

12

RETAINER,SPRING Substituted by 3086893

3084907

Unavailable

12

RETAINER,SPRING Substituted by 3086893

3084907

Unavailable

13

SPRING,VALVE Substituted by 3086892

3084906

$28.32

13

SPRING,VALVE Substituted by 3086892

3084906

$28.32

14

CAMSHAFT Substituted by 3086212 (Incl. 15-18)

3084898

$379.99

15

PIN, DOWEL Substituted by 3086838

3080103

$7.14

16

LEVER, RELEASE

3085348

Unavailable

17

SPRING,RETURN

3085076

Unavailable

18

PIN,DOWEL

3084899

$7.14

19

SPROCKET 2

3084914

Unavailable

20

BOLT&WASHER ASM.

3081657

$4.76

21

GUIDE,CHAIN

3084916

Unavailable

22

CHAIN, TIMING *

3084915

$101.17

23

BOLT,PIVOT,LEVER

3084924

Unavailable

24

LEVER

3084917

Unavailable

25

VALVE,INTAKE

3085349

$68.79

26

VALVE,EXHAUST Substituted by 3085412

3084905

$93.08

27

BOLT, FLANGE

3084874

Unavailable
