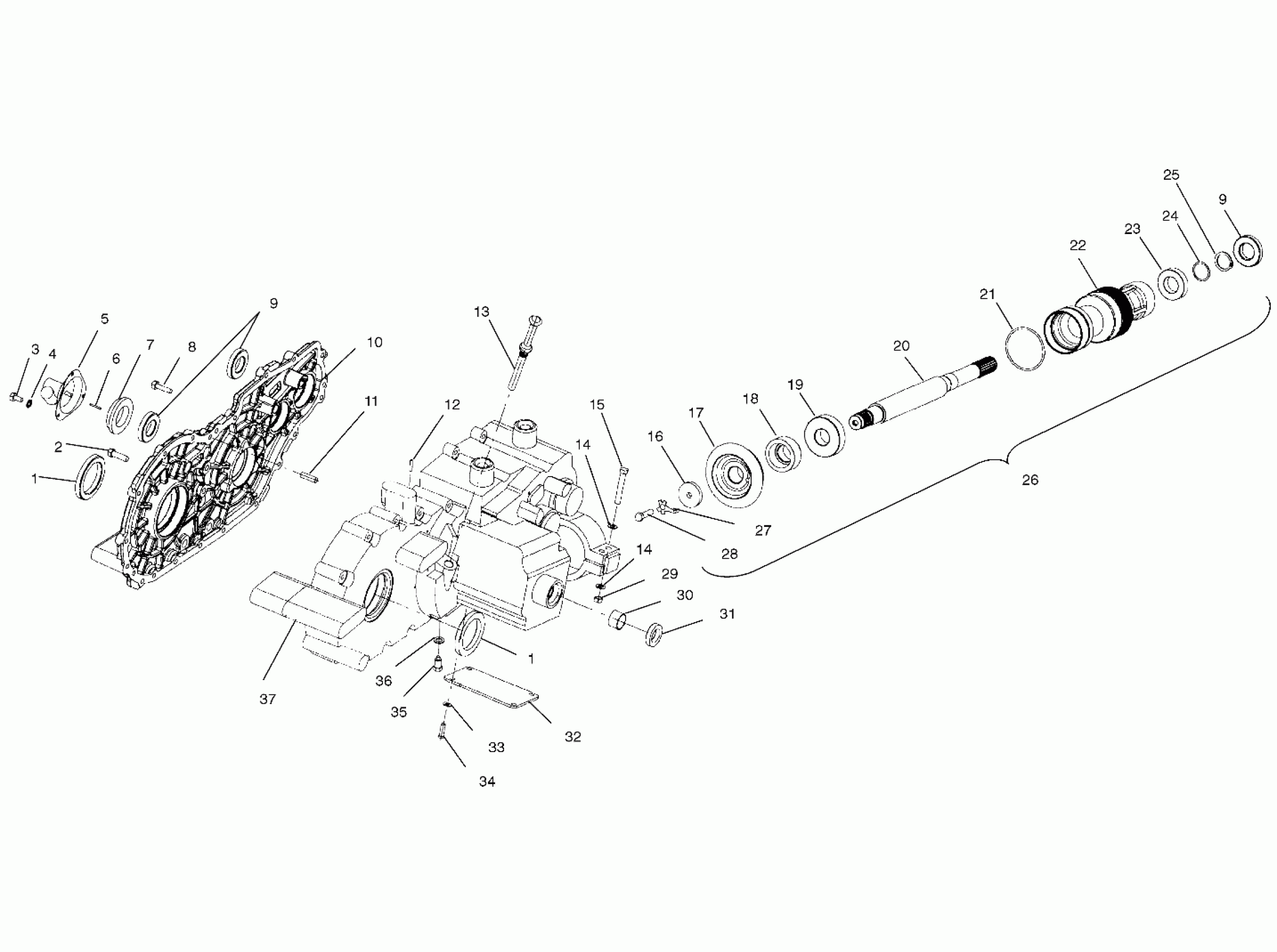

Polaris SPORTSMAN 500 - W97CH50A GEARCASE (Cases and Snorkel) - W97CH50A (4939993999D002) Diagram

#

Description
Price

1

Seal

3233256

Unavailable

1

Seal

3233256

Unavailable

2

Screw

3233252

$5.27

3

BOLT(10)

7515378

$1.98

4

WASHER(10)

7555725

Unavailable

5

ADAPTER,DRIVE(1:1.2)

3280219

Unavailable

6

KEY,SPEEDO.DRIVE

3280217

Unavailable

7

SEAL,ANGLE DRIVE

3280164

Unavailable

8

Screw

3233026

$6.46

8

NUT,FLEXLOCK

3233289

$9.59

9

Seal

3233248

$30.88

9

Seal

3233248

$30.88

10

GEARCASE,LH

3233473

Unavailable

11

PIN, DOWEL

3233247

$7.19

12

Vent

3233037

Unavailable

13

DIPSTICK ASM.

3233443

Unavailable

14

Washer, Flat (See Pg. C14 Ref. 10)

-------

Unavailable

14

Washer, Flat (See Pg. C14 Ref. 10)

-------

Unavailable

15

BOLT

3233442

$2.23

16

Washer

3233352

$1.83

17

GEAR,31T,(SNORKEL)

3233299

Unavailable

18

SPACER,SNORKEL

3233445

Unavailable

19

Ball Bearing (See Pg. C14, Ref. 35)

-------

Unavailable

20

SHAFT,SNORKEL

3233446

Unavailable

21

O-Ring

3233302

Unavailable

22

SNORKEL

3233303

Unavailable

23

BEARING,BALL

3233305

$31.99

24

SPACER (1.180x.995x.008) NOTE: Ref. 24 indicates choices, may also be used in combinations.

3233357

$21.99

24

SPACER (1.180x.995x.040)

3233355

$2.63

24

SPACER (1.180x.995x.010)

3233353

$2.55

24

SPACER (1.180x.995x.025)

3233354

$2.55

24

SPACER (1.180x.995x.005)

3233356

$2.62

25

RING,RETAINING

3233306

$4.79

26

Asm., Gearcase (Incl. 9,16-25,27,28) (See Pg. C14 for Details)

-------

Unavailable

27

BOLT,LOCK SNORKEL GEAR

3233444

$2.39

28

Bolt

3233351

$1.99

29

NUT,FLEXLOCK

3233291

$3.03

30

Bushing

3233292

$31.99

31

Seal

3233293

Unavailable

32

PLATE,COVER

3233294

$11.59

33

WASHER,LOCK

3233295

$1.99

34

Screw

3233296

Unavailable

35

PLUG, DRAIN Substituted by 3233777

3233253

$34.99

36

PLUG, WASHER

3233254

$7.99

37

GEARCASE,RH,TAPPED

3233441

Unavailable
