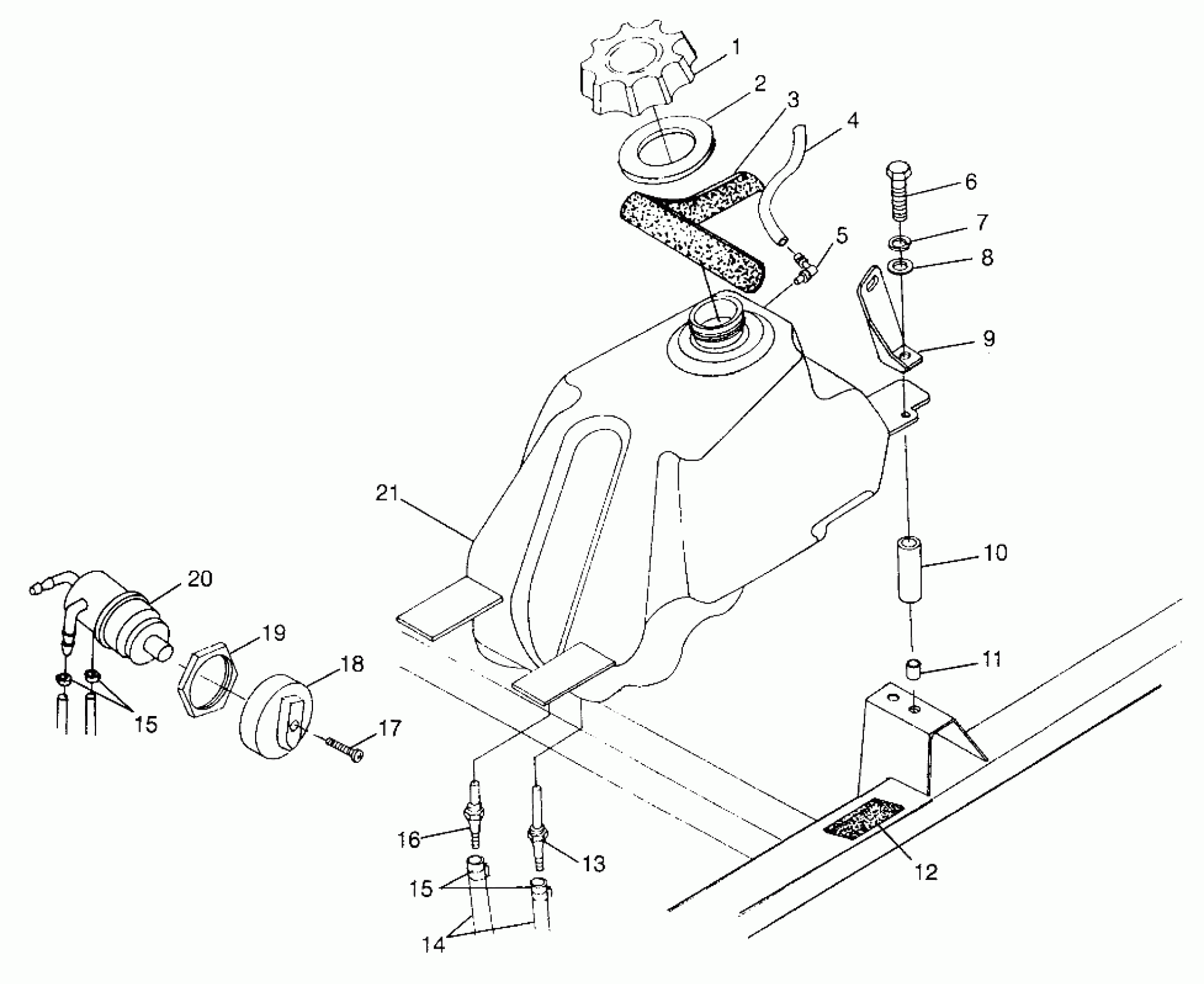

Polaris SPORTSMAN 500 - W97CH50A FUEL TANK SPORTSMAN 500 W97CH50A (4939993999B001) Diagram

#

Description
Price

1

CAP, GAS, (BLACK)

5430725

$24.27

2

GASKET-GAS CAP

5810144

$5.59

3

SEAL-FOAM,21 IN

5811310

Unavailable

4

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

5

Vent, Tank

5431053

$19.99

6

SCREW(10)

7515349

Unavailable

7

LOCK WASHER(10)

7552901

$1.49

8

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

9

BRKT,LH.R.FUELCOVER,BLK.

5222154-067

Unavailable

9

BRKT,RH.R.FUELCOVER,BLK.

5222155-067

Unavailable

10

Spacer

5332457

Unavailable

11

INSERT,(10)

7542143

$5.59

12

PAD,FUELTANK BRKT. Substituted by 8360026

5810317

Unavailable

13

FITTING,FUEL OUT,MAIN,4",Y

7052150

$27.99

14

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

15

HOSE CLAMP, RED

7080003

$1.49

15

HOSE CLAMP, RED

7080003

$1.49

16

FITTING,FUEL OUT,RES.,Z

7052149

$23.99

17

SCREW, S.S.(10)

7516302

$3.99

18

KNOB,FUEL VALVE

5432559

$10.39

19

NUT,FUELVALVE,ATV

5432733

Unavailable

20

VALVE,3-WAY

7052161

$39.99

21

FUELTANK ASM. Substituted by 2520144

2511265

Unavailable
