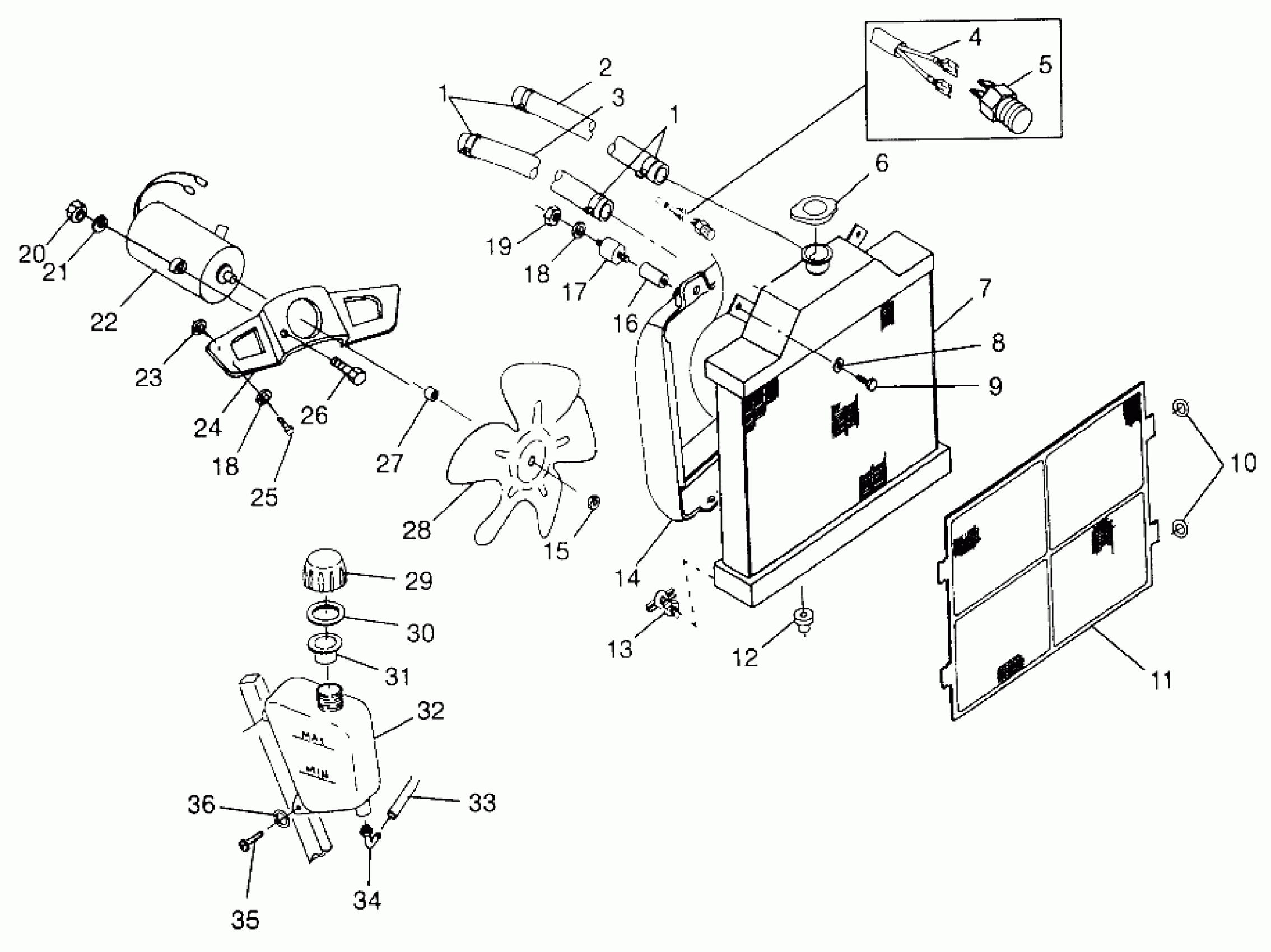

Polaris SPORTSMAN 500 - W97CH50A COOLING SYSTEM SPORTSMAN 500 W97CH50A (4939993999A013) Diagram

#

Description
Price

1

CLAMP,HOSE,(10)

7080614

$7.19

1

CLAMP,HOSE,(10)

7080614

$7.19

2

HOSE,WATER,305 CM.

8450050-305

Unavailable

3

HOSE-LOWER ENGINE

5411072

Unavailable

4

HARNESS,FAN/THERM.SWITCH

2460515

Unavailable

5

SWITCH,THERMAL,FAN,L/C

4110225

Unavailable

6

CAP, RADIATOR Substituted by 2511270

2511189

Unavailable

7

RADIATOR,"U"FLOW

1240015

Unavailable

8

WASHER(10)

7552605

$5.27

9

SCREW(10)

7512113

$3.99

10

O RING

5410607

$5.99

11

COVER,RADIATOR,W/MESH

5431760

Unavailable

12

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

13

VALVE,DRAIN COCK

7052181

Unavailable

14

SHROUD, FAN,(ATV) Substituted by 5432593

5432356

Unavailable

15

NUT

7542154

Unavailable

16

Spacer, Mount

5020572

$8.79

17

Mount, Rubber

3110032

$7.99

18

WASHER(10)

7558301

$1.49

18

WASHER(10)

7558301

$1.49

19

NUT-LOCK(10)

7542122

$1.49

20

NUT(10)

7541915

Unavailable

21

WASHER, FLAT(10)

7558201

$5.79

22

MOTOR,FAN,LIQ.COOLED (Incl. 15, 27)

4170009

Unavailable

23

Nut

7547004

$4.79

24

BRKT.COOL.FAN,BLK

5241355-067

Unavailable

25

BOLT(10)

7512232

$1.49

26

SCREW(10)

7511875

$4.79

27

SPACER

5333457

Unavailable

28

BLADE, FAN

5240822

$57.59

29

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

30

GASKET-OVERFLOW CAP

5810279

$2.41

31

PLUG,CAP Substituted by 5433774

5431895

Unavailable

32

Tank, Surge

5431673

Unavailable

33

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$84.99

34

FITTING,90 DEGREE

7052065

$7.19

35

SCREW,(10)

7512024

$4.79

36

WASHER(10) Substituted by 7558201

7555799

Unavailable
