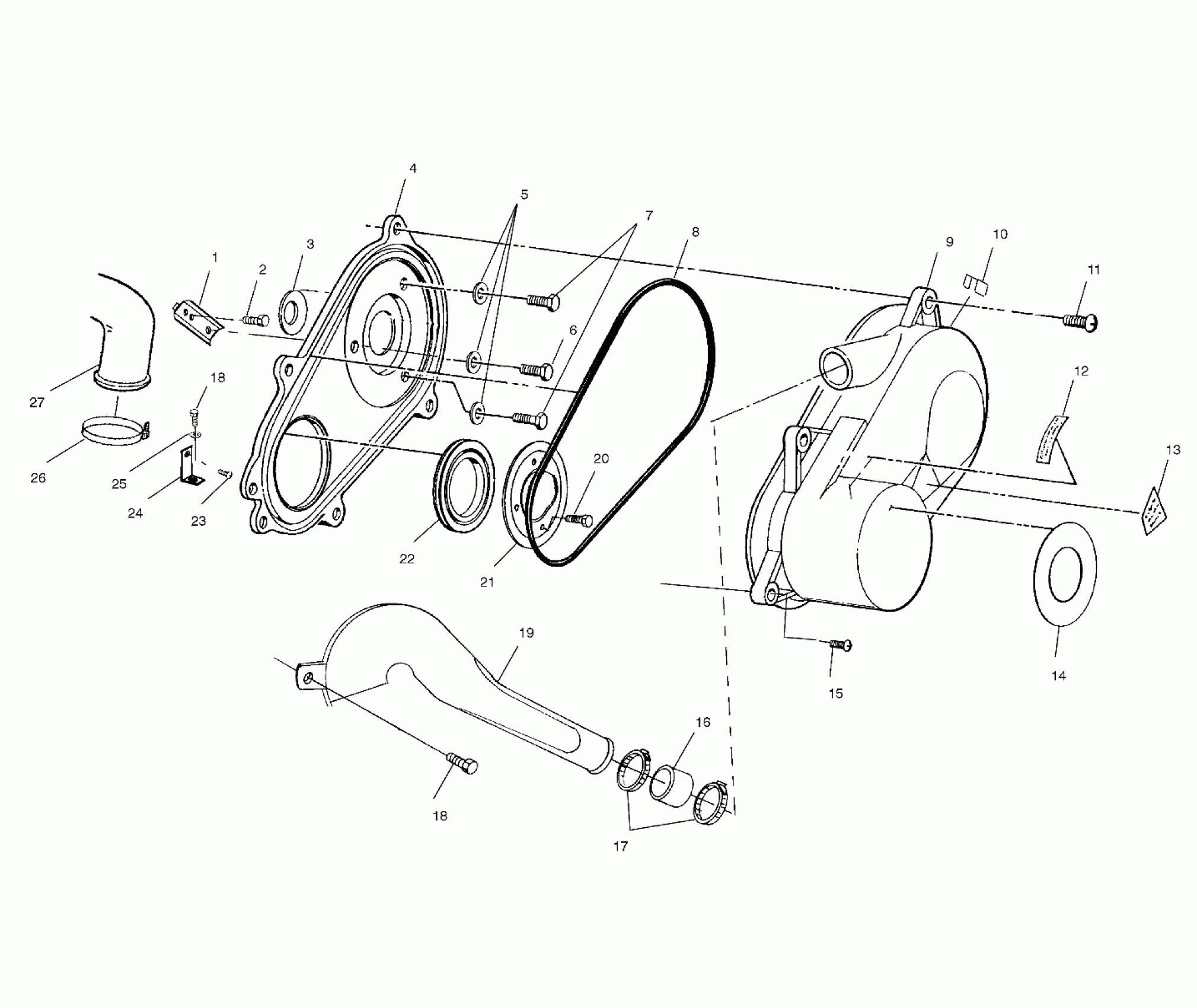

Polaris SPORTSMAN 500 - W97CH50A CLUTCH COVER - W97CH50A (4939993999C010) Diagram

#

Description
Price

1

BRKT,R.CLUTCH CVR,BLK.

1040519-067

Unavailable

2

BOLT(10)

7512240

$3.99

3

SEAL,COVER CASE

5410489

$13.59

4

KIT,CVR,IN.CLUTCH,(500) Substituted by 2201160 (Incl. 11,15,23)

2200793

$121.41

5

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

6

BOLT(10)

7512277

$4.79

7

BOLT(10)

7512278

Unavailable

8

SEAL,CLUTCHCOVER

5521301

$30.88

9

COVER,CLUTCH,FRONT Substituted by 5433542

5431961

$173.74

10

CLIP,CLUTCH COVER(10)

7670051

$2.99

11

SCREW(10)

7512093

$1.49

12

DECAL,CLUTCH COVER Substituted by 7078689

7074946

Unavailable

13

DECAL(CPSC),ENG/CLUTCH MOD. [No Longer Available]

7072789

Unavailable

14

DECAL,AUTO.TRANSMISSION

7074782

Unavailable

15

SCREW(10)

7512094

$1.59

16

BOOT,CLUTCH INTAKE

5410421

$11.19

17

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

18

BOLT(10)

7512232

$1.49

18

BOLT(10)

7512232

$1.49

19

DUCT,OUTLET,CLUTCH

5432145

Unavailable

20

Screw & Washer (See Pg. D5, Ref. 6)

-------

Unavailable

21

BRACKET,CLUTCH SEAL

5242046-067

$34.74

22

Seal, Cover Case

5410575

Unavailable

23

SCREW(10)

7512095

$4.79

24

BRKT-CLUTCH COVER,BLK

5241156-067

Unavailable

25

WASHER(10)

7555935

$2.39

26

CLAMP, NARROW BAND(10)

7080511

$4.79

27

Duct, Air Inlet Clutch (See Pg. B2, Ref. 15)

-------

Unavailable
