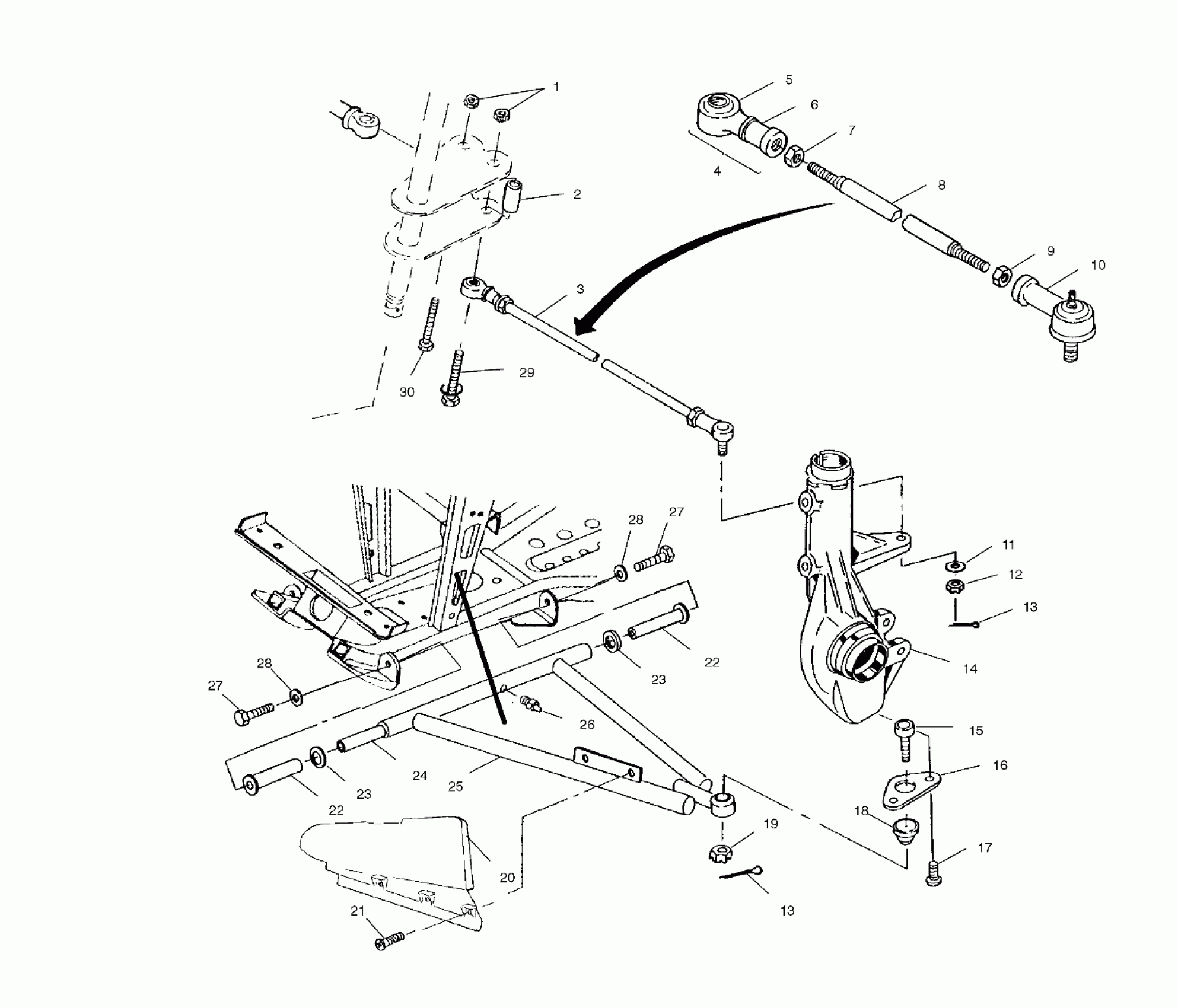

Polaris SPORTSMAN 500 - W97CH50A A-ARM/STRUT MOUNTING - W97CH50A (4939993999C002) Diagram

#

Description
Price

1

NUT LOCK(10)

7542403

$3.99

2

BUSHING

5333367

$6.63

3

TIE ROD ASM. Substituted by 1822478 (Incl. 5-10)

1822202

Unavailable

4

ROD END ASM,/SEAL BOOT (Incl. 5,6)

1822179

$69.99

5

BOOT, SEAL, ROD END

5410540

$7.19

6

ROD END,RH.THRD.

7061015

Unavailable

7

NUT HEX(10)

7542401

$2.39

8

ROD, TIE

5020768

$48.87

9

NUT, LH, 10 MM.(10)

7546902

Unavailable

10

ROD END,LH,W/FTG,10 MM.

7060171

$55.99

11

WASHER(10)

7555806

$1.49

12

NUT, CASTLE(10)

7546904

$4.79

13

PIN COTTER(10)

7661203

$1.49

13

PIN COTTER(10)

7661203

$1.49

14

Asm., Hubstrut (See Pg. B6, Ref. 16)

-------

Unavailable

15

BALLJOINT,HI-ANGLE Substituted by 7080927

7080673

$76.89

16

BRACKET-BALL JOINT

5211121

$31.99

17

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

18

Boot, Rubber

5410548

Unavailable

19

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

20

SHIELD,LH.CV,BLK.

5431837

Unavailable

20

SHIELD,RH.CV,BLK.

5431838

Unavailable

21

SCREW(10)

7512084

$1.49

22

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

Unavailable

22

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

Unavailable

23

BUSHING,A-ARM SPACER(10)

5020677

$10.39

23

BUSHING,A-ARM SPACER(10)

5020677

$10.39

24

Shaft, A-Arm

5020681

Unavailable

25

KIT,LH,A-FRAME Substituted by 2201607

2200736

$138.99

25

KIT,RH,A-FRAME Substituted by 2201608

2200737

$138.99

26

ZERK,FITTING,THREADED(10)

7080433

$1.49

27

BOLT(10) Substituted by 7512492

7515458

Unavailable

27

BOLT(10) Substituted by 7512492

7515458

Unavailable

28

WASHER(10)

7552603

$1.49

28

WASHER(10)

7552603

$1.49

29

SCREW(10)

7515554

Unavailable

30

BOLT(10)

7515415

$1.49
