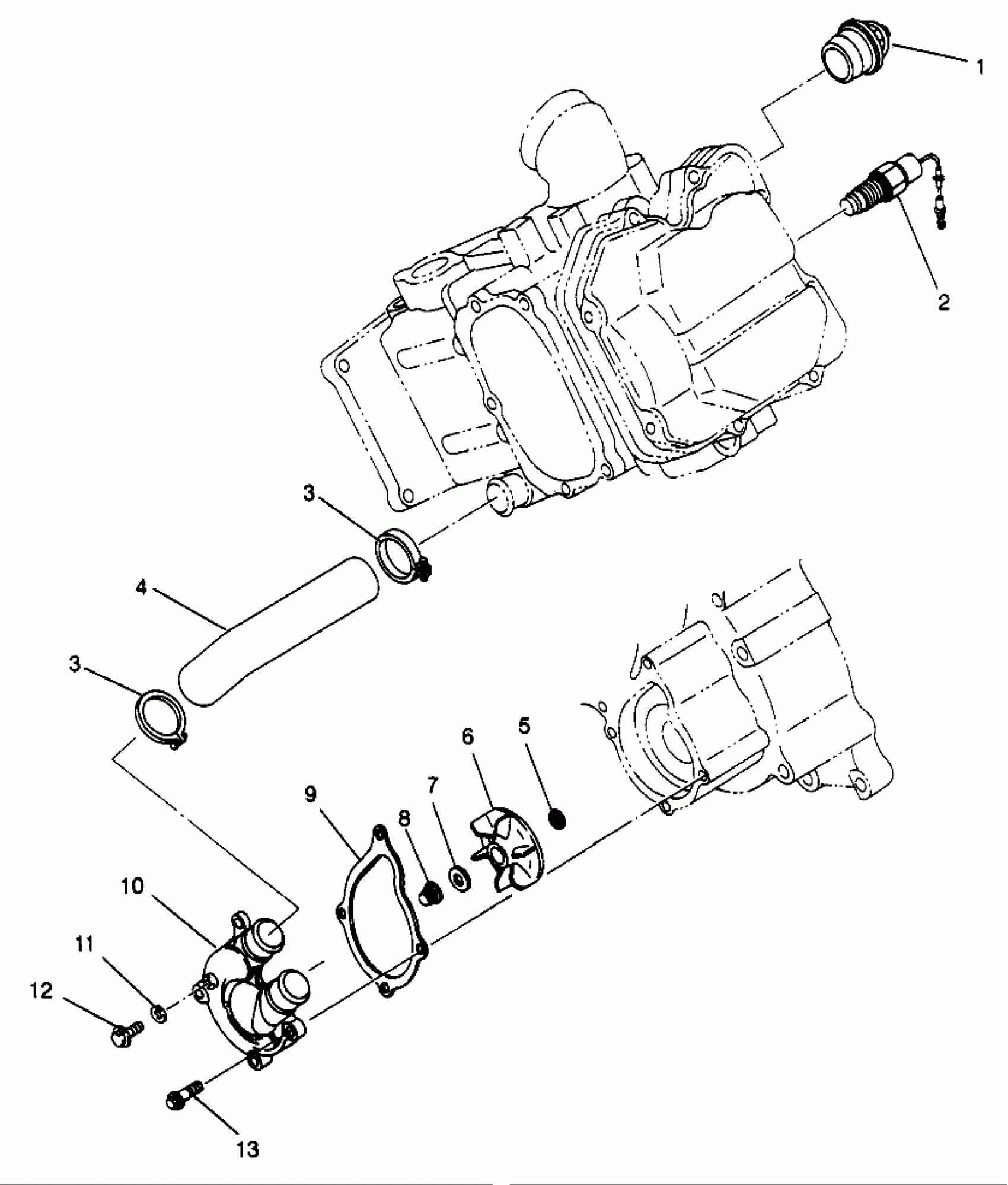

Polaris SPORTSMAN 500 - W969244 WATER PUMP SPORTSMAN 500 W969244 (4936093609D005) Diagram

#

Description

Price

1

THERMOSTAT *

3084940

$93.08

2

SWITCH,THERMO. *

3085352

$129.51

3

CLAMP, HOSE Substituted by 3086774

3084191

Unavailable

3

CLAMP, HOSE Substituted by 3086774

3084191

Unavailable

4

HOSE, MAIN Substituted by 3085857

3084938

Unavailable

5

WASHER,SEAL

3084942

Unavailable

6

IMPELLER,WATER PUMP

3084935

Unavailable

7

WASHER(10) Substituted by 7555998 (Aluminum)

3083138

$1.19

8

NUT,SELF-LOCK

3085077

$9.52

9

GASKET,WATER PUMP Substituted by 3086840

3084937

$6.46

10

COVER,WATER PUMP

3085351

Unavailable

11

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

12

BOLT,FLANGE(10)

3085359

$2.38

13

BOLT,FLANGE(10)

3084877

Unavailable
