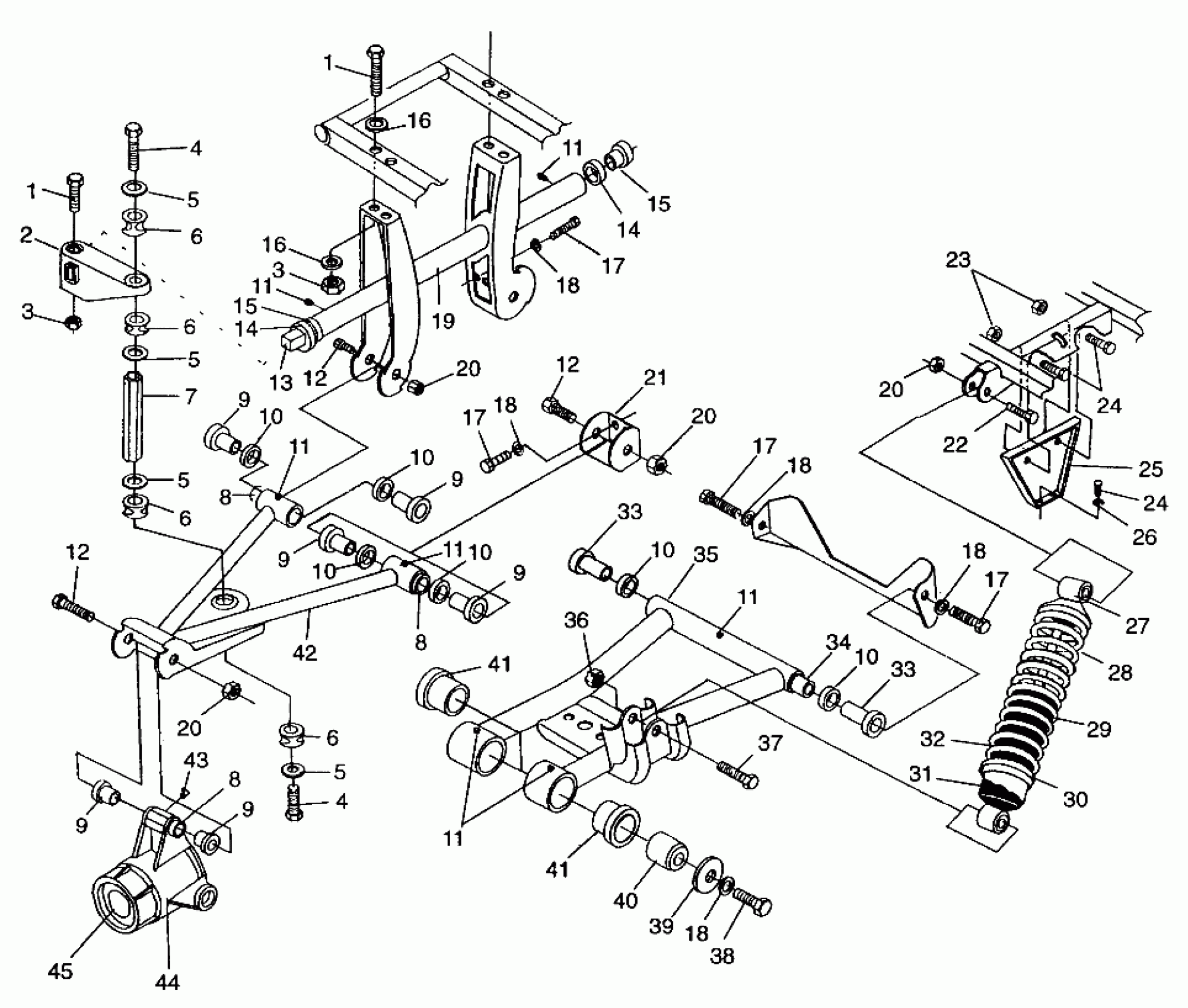

Polaris SPORTSMAN 500 - W969244 REAR SUSPENSION SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609C005) Diagram

#

Description
Price

1

BOLT(10)

7512329

$3.99

1

BOLT(10)

7512329

$3.99

2

ARM,STAB.BAR,BLK Substituted by 1580107-067

1580096-067

Unavailable

3

NUT FLEX-LOC(10)

7542303

$6.39

3

NUT FLEX-LOC(10)

7542303

$6.39

4

SCREW(10)

7517231

$7.19

4

SCREW(10)

7517231

$7.19

5

WASHER(10)

7555761

$2.39

5

WASHER(10)

7555761

$2.39

5

WASHER(10)

7555761

$2.39

5

WASHER(10)

7555761

$2.39

6

BUSHING,STABILIZER LINK Substituted by 5432598

5432119

Unavailable

6

BUSHING,STABILIZER LINK Substituted by 5432598

5432119

Unavailable

6

BUSHING,STABILIZER LINK Substituted by 5432598

5432119

Unavailable

6

BUSHING,STABILIZER LINK Substituted by 5432598

5432119

Unavailable

7

ROD-LINKAGE, STABILIZER

5020827

$47.99

8

SHAFT,A-ARM,SHORT

5020826

$11.99

8

SHAFT,A-ARM,SHORT

5020826

$11.99

8

SHAFT,A-ARM,SHORT

5020826

$11.99

9

BUSHING,A-ARM,SHORT Substituted by 5433063

5432091

$2.38

9

BUSHING,A-ARM,SHORT Substituted by 5433063

5432091

$2.38

9

BUSHING,A-ARM,SHORT Substituted by 5433063

5432091

$2.38

9

BUSHING,A-ARM,SHORT Substituted by 5433063

5432091

$2.38

9

BUSHING,A-ARM,SHORT Substituted by 5433063

5432091

$2.38

9

BUSHING,A-ARM,SHORT Substituted by 5433063

5432091

$2.38

10

BUSHING,A-ARM SPACER(10)

5020677

$10.39

10

BUSHING,A-ARM SPACER(10)

5020677

$10.39

10

BUSHING,A-ARM SPACER(10)

5020677

$10.39

10

BUSHING,A-ARM SPACER(10)

5020677

$10.39

10

BUSHING,A-ARM SPACER(10)

5020677

$10.39

10

BUSHING,A-ARM SPACER(10)

5020677

$10.39

11

ZERK,FITTING,THREADED(10)

7080433

$1.49

11

ZERK,FITTING,THREADED(10)

7080433

$1.49

11

ZERK,FITTING,THREADED(10)

7080433

$1.49

11

ZERK,FITTING,THREADED(10)

7080433

$1.49

11

ZERK,FITTING,THREADED(10)

7080433

$1.49

12

BOLT(10)

7515472

$2.39

12

BOLT(10)

7515472

$2.39

12

BOLT(10)

7515472

$2.39

13

BAR,STAB.TUBE,BLK.

5333393-067

Unavailable

14

WASHER(10)

7555939

Unavailable

14

WASHER(10)

7555939

Unavailable

15

BUSHING,STAB.TUBE Substituted by 5433413

5432169

Unavailable

15

BUSHING,STAB.TUBE Substituted by 5433413

5432169

Unavailable

16

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

16

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

17

BOLT(10) Substituted by 7512492

7515458

Unavailable

17

BOLT(10) Substituted by 7512492

7515458

Unavailable

17

BOLT(10) Substituted by 7512492

7515458

Unavailable

17

BOLT(10) Substituted by 7512492

7515458

Unavailable

18

WASHER(10)

7552603

$1.49

18

WASHER(10)

7552603

$1.49

18

WASHER(10)

7552603

$1.49

18

WASHER(10)

7552603

$1.49

18

WASHER(10)

7552603

$1.49

19

SUPPORT,STABILIZER, BLK Substituted by 1541322-067

1580097-067

Unavailable

20

NUT LOCK(10)

7542403

$3.99

20

NUT LOCK(10)

7542403

$3.99

20

NUT LOCK(10)

7542403

$3.99

20

NUT LOCK(10)

7542403

$3.99

21

BRKT,A-ARM,PIVOT,BLK Substituted by 5242077-067

5224659-067

Unavailable

22

BOLT Substituted by 7515491

7515433

$1.59

23

NUT LOCK(10)

7542321

$1.49

24

BOLT(10)

7515321

$1.49

24

BOLT(10)

7515321

$1.49

25

SUPPORT,UPR.TRANS,BLK

5224667-067

$74.99

26

LOCK WASHER(10)

7552901

$1.49

27

RETAINER,SPRING

5131533

Unavailable

28

SPRING,R.COMP,100LB/IN,BLK Substituted by 7041453-067

7041546-067

$94.99

29

SLEEVE,SPRING PROTECTOR

5431032

$31.99

30

CAM,ADJUSTING SPRING

5630334

$32.37

31

SHOCK,REAR,ATV

7041454

$151.99

32

ADAPTER,SPRING,SEAT

5630351

Unavailable

33

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

Unavailable

33

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

Unavailable

34

Shaft, A-Arm

5020681

Unavailable

35

CONTROL,LH,LOW,BLK

1040445-067

Unavailable

35

CONTROL,RH,LOW,BLK.

1040446-067

Unavailable

36

NUT-LOCK(10)

7542439

$1.49

37

BOLT(10)

7515415

$1.49

38

BOLT(10)

7515502

$5.59

39

WASHER(10)

7555936

$4.99

40

BUSHING,BRNG.CARRIER,ALUM Substituted by 5131883

5020825

$34.74

41

BUSHING,CONTROL,LOWER Substituted by 5433065

5432092

Unavailable

41

BUSHING,CONTROL,LOWER Substituted by 5433065

5432092

Unavailable

42

CONTROL,LH,UPPER,BLK Substituted by 1040586-067

1040443-067

Unavailable

42

CONTROL,RH,UPPER,BLK Substituted by 1040587-067

1040444-067

$101.17

43

FITTING,LUBE,45 DEG.(10)

7080586

Unavailable

44

CARRIER,BRG,WHEEL,(MACH) Substituted by 5131738

5131186

$111.96

45

BEARING,CARRIER,WHEEL

3585502

Unavailable
