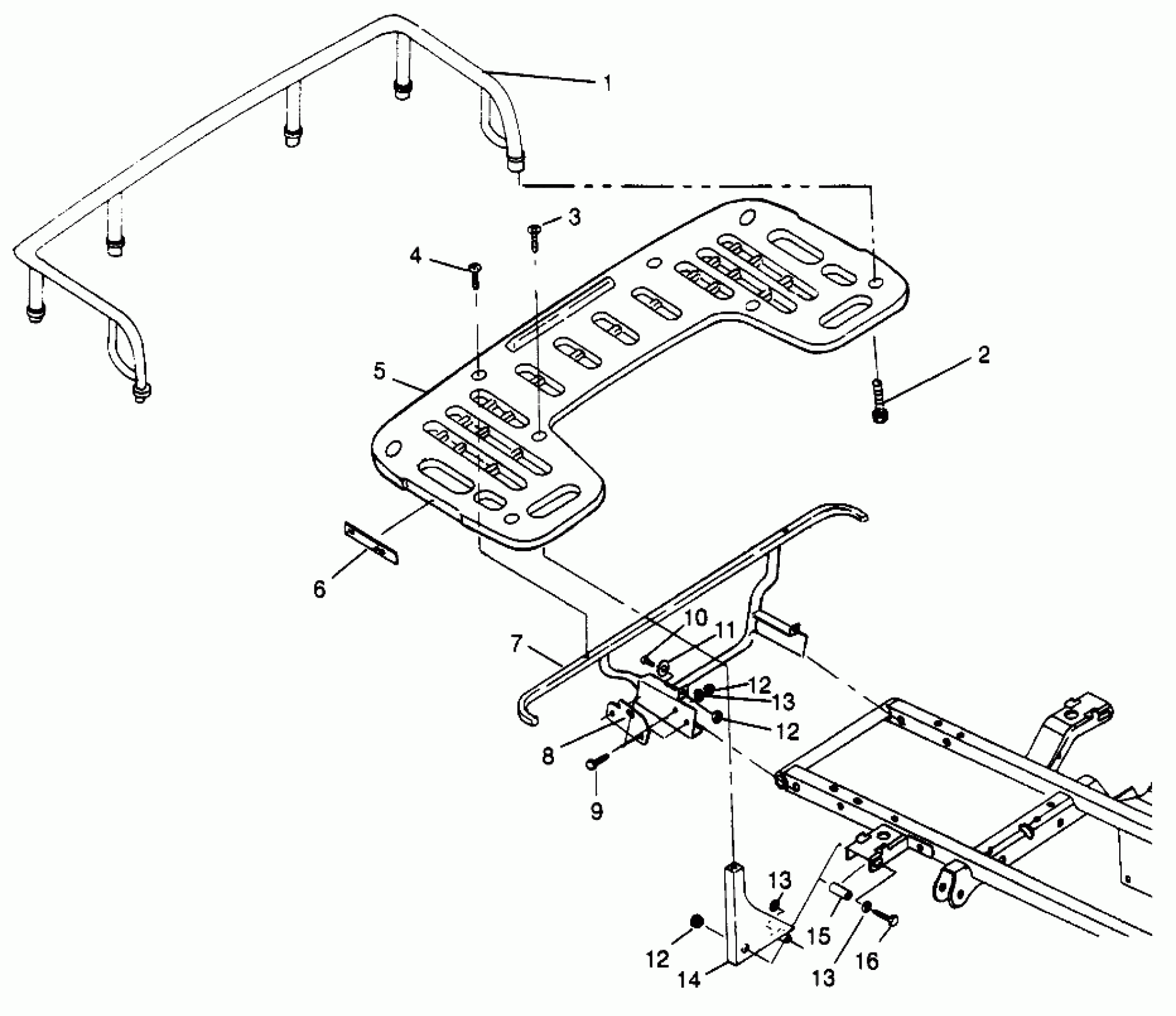

Polaris SPORTSMAN 500 - W969244 REAR RACK MOUNTING SPORTSMAN 500 W969244 (4936093609A008) Diagram

EXT.WELD,RACK,LOW,BLK. Substituted by 2871501

1040510-067

Unavailable

SCREW(10)

7517208

$1.99

SCREW(10)

7515193

Unavailable

SCREW(10) Substituted by 7517685

7515194

Unavailable

RACK ASM,REAR Substituted by 2670174-070 (Incl. Ref. 6 & Warning Decal)

2670174

Unavailable

REFLECTOR RED

2670070

$9.91

SUPPORT,R.RACK,(500),BLK

1040490-067

Unavailable

BRKT,SILENCER,FRAME,BLK

5241663-067

Unavailable

BOLT(10)

7512329

$3.99

BOLT(10)

7512261

$4.99

WASHER(10) Substituted by 7558301

7555776

Unavailable

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

WASHER(10) Substituted by 7558402

7555770

Unavailable

WASHER(10) Substituted by 7558402

7555770

Unavailable

WASHER(10) Substituted by 7558402

7555770

Unavailable

MNT,LH.FRT,R.RACK,BLK

1040524-067

Unavailable

MNT,RH.FRT,R.RACK,BLK.

1040525-067

Unavailable

Spacer

5333332-067

$6.63

SCREW(10)

7515385

$5.59
