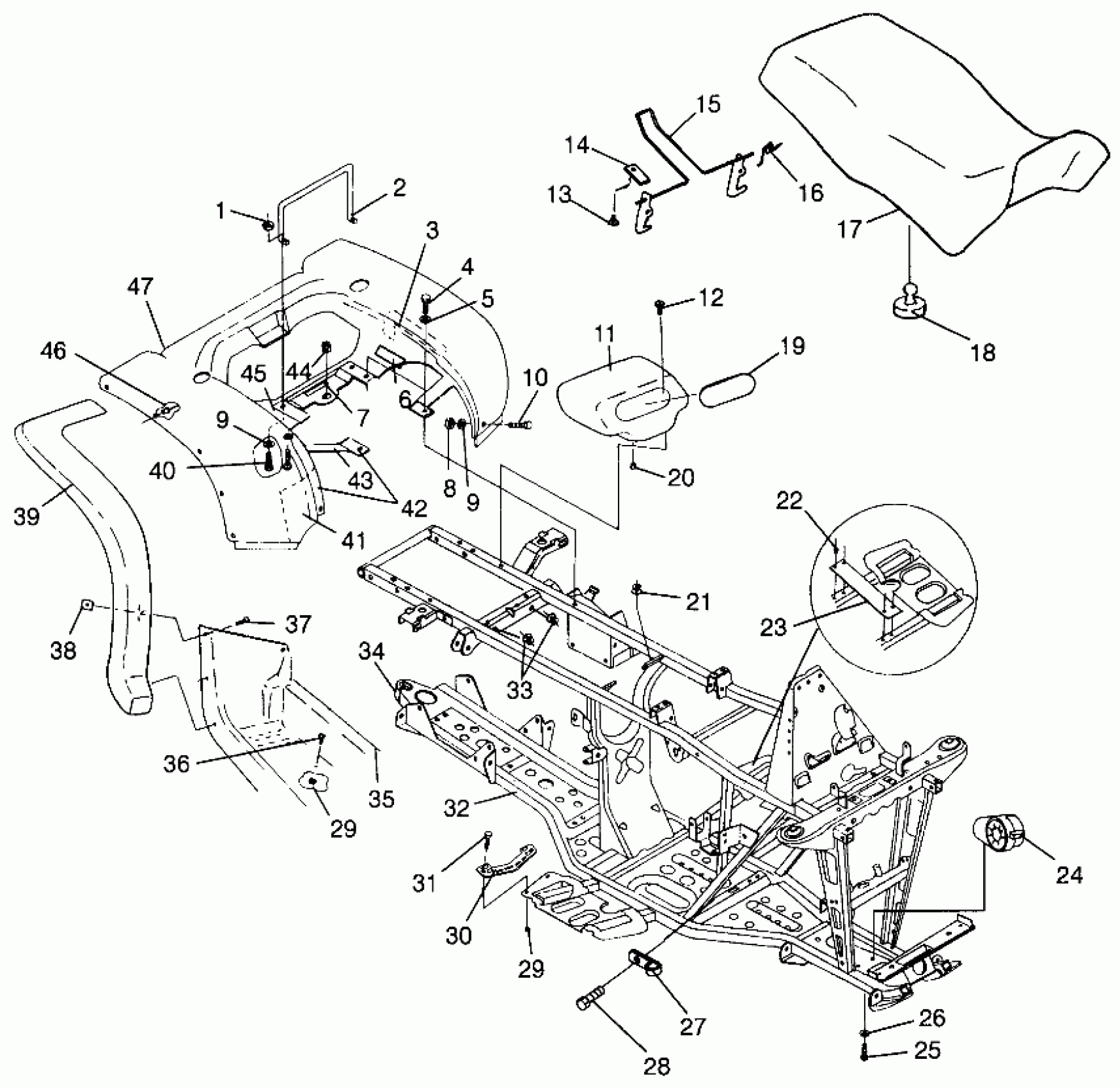

Polaris SPORTSMAN 500 - W969244 REAR CAB and SEAT SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609A006) Diagram

#

Description
Price

1

NUT(10)

7541925

$1.49

2

RETAINER,SEAT LATCH

5224592

Unavailable

3

FOIL,TAPE,3 X 12

5811308

$12.79

4

SCREW(10)

7515180

Unavailable

5

WASHER, FLAT(10)

7555859

$1.49

6

DECAL,CARB.INFO.

7073761

Unavailable

7

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

8

NUT, LOCK(10) Substituted by 7541925

7541929

Unavailable

9

WASHER(10)

7555792

$4.79

9

WASHER(10)

7555792

$4.79

10

SCREW(10) Substituted by 7511989

7512085

Unavailable

11

TOOLBOX

5431786

$53.59

12

BOLT(10)

7512246

Unavailable

13

BLIND RIVET(50)

7621403

$1.49

14

BRACKET,LEVER RETAINER

5211033

$29.25

15

LATCH,SEAT

1040387

$47.99

16

SPRING, LATCH

7041370

$9.59

17

COVER,SEAT,BLK. (w/Label)

2681747-070

$141.65

17

FOIL,SEATBASE,LG.

5811104

Unavailable

17

FOIL,SEATBASE,SM.

5811105

$9.91

17

SEAT ASM,BLK. Substituted by 2682201-070 (Incl. 13-18)

2681746-070

$424.98

18

Bumper, Rubber

5410414

$3.19

19

COVER, TOOLBOX

5431787

Unavailable

20

CAP,DRAIN

5410896

$5.59

21

NUT-WELL(10)

7541923

$5.59

22

RIVET-3/16-.090-.290

7661637

$1.49

23

GUARD-CLUTCH, BLK

5241403-067

Unavailable

24

Asm., Gearcase, Front (See Pg. for Details)

-------

Unavailable

25

BOLT(10) Substituted by 7512492

7515458

Unavailable

26

WASHER(10)

7552603

$1.49

27

CLAMP,HOSE,1",NYLON

7080653

$4.79

28

SCREW,(10)

7512024

$4.79

29

NUT-LOCK(10)

7542122

$1.49

29

NUT-LOCK(10)

7542122

$1.49

30

SPACER,FOOTWELL

5432280

$8.79

31

BOLT ,(10) Substituted by 7517377

7512239

Unavailable

32

FRAME,MAIN,BLK

1040439-067

Unavailable

33

GROMMET

5410770

Unavailable

34

DECAL, HITCH Substituted by 7078261

7072533

Unavailable

35

FOOTWELL,LH,BLK,NYLON

5432221-070

$230.70

35

FOOTWELL,RH,BLK,NYLON Substituted by 5433219-070

5432118-070

$230.70

36

SCREW(10)

7512279

$1.49

37

SCREW(10)

7522026

$4.79

38

NUT, SPEED(10)

7670057

$1.49

39

MUDGUARD,LH,R.BLK. Substituted by 5431796-070

5431796

Unavailable

39

MUDGUARD,RH,R.BLK. Substituted by 5431797-070

5431797

Unavailable

40

SCREW(10)

7511930

$2.39

41

FOIL FOAM

5811111

$32.37

42

FOIL,FR,REAR CAB

5811106

$8.89

43

FOIL-FOAM,(6X1)

5811087

Unavailable

44

Grommet

5411042

Unavailable

45

FOIL,REAR CAB,REAR

5811107

$6.46

46

RIVET(50)

7661645

$3.99

47

CAB,REAR,GEN 4,OLV.GRN.

5432117-191

Unavailable
