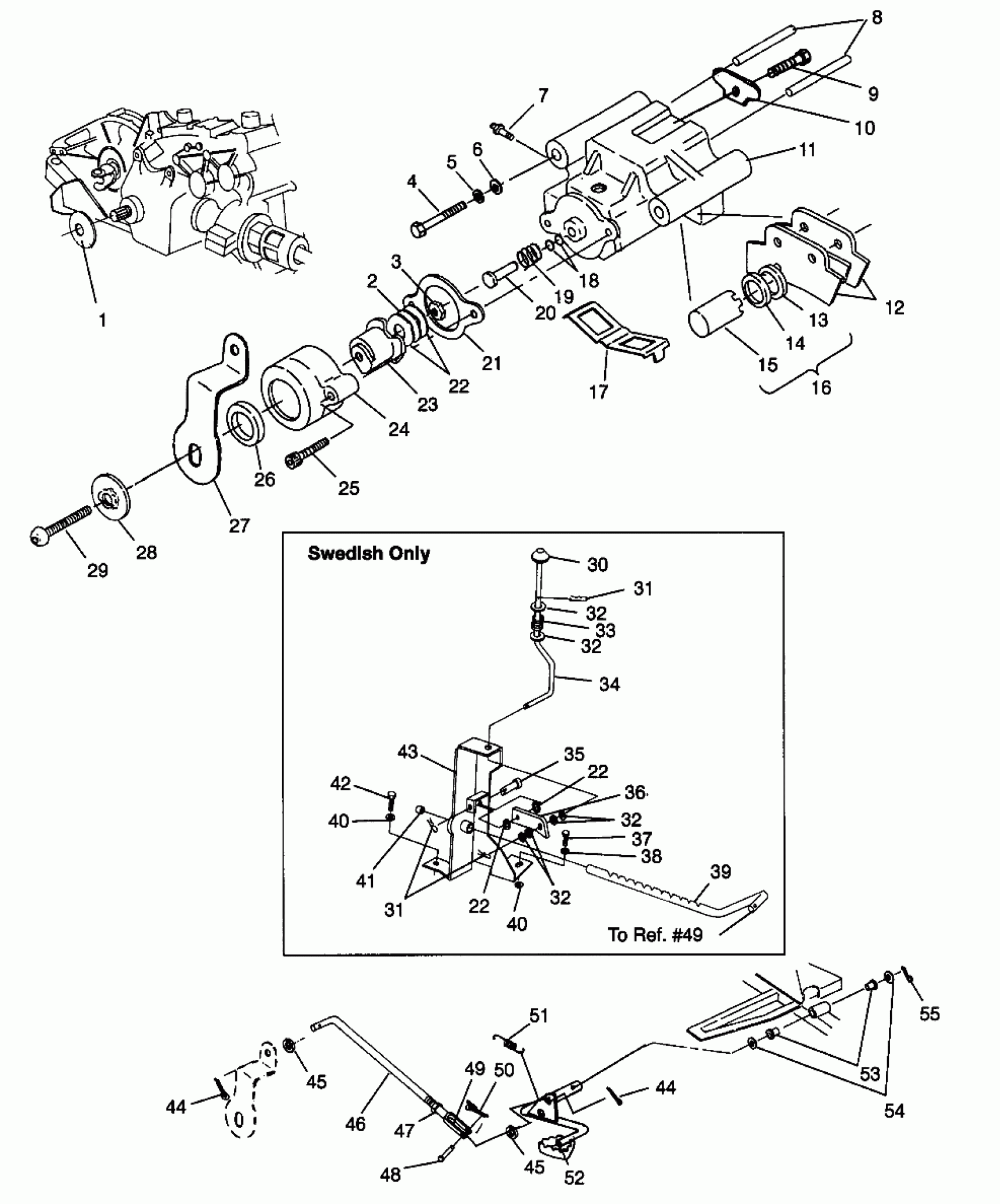

Polaris SPORTSMAN 500 - W969244 REAR BRAKE SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609C007) Diagram

#

Description
Price

1

DISC ASM,BRAKE

1910188

Unavailable

2

WASHER(10)

7555921

Unavailable

3

NUT, LH(10)

7542149

$5.40

4

BOLT(10)

7515345

$5.56

5

LOCK WASHER(10)

7552901

$1.19

6

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

7

SCREW,BLEEDER

7080352

$3.17

8

PIN, DOWEL(10)

7661820

$13.99

9

SCREW, SEMS(10)

7512020

$2.38

10

PLATE,BRAKE CALIPER

5211668

Unavailable

11

CALIPER,R.BRAKE,MACH

5131260

Unavailable

11

CALIPER ASM,R.BRAKE Substituted by 1910225 (Incl. 2, 3, 7-11, 13, 14, 17-19, 21-29)

1910201

Unavailable

12

KIT,BRAKEPAD,REAR

2200464

$66.65

13

SQUARE RING-MOLDED (.134) (.134 Sq.)

5410766

$12.13

14

RING, SQUARE,(1''DIAM.) Substituted by 2200463 (.099 Sq.)

5410767

$97.76

15

PISTON,BRAKE Substituted by 2200463

5020667

$97.76

16

KIT-PISTON & SEAL (Incl. 13-15)

2200463

$97.76

17

SPRING,ANTI-RATTLE

5240993

Unavailable

18

O RING-.364X.504X.07

5410542

$4.84

19

SPRING,BRAKE,COMP.

7041219

Unavailable

20

PIN,BRAKE CALIPER

5020791

Unavailable

21

GASKET, BRAKE

5830009

Unavailable

22

WASHER(10)

7555827

$3.97

22

WASHER(10)

7555827

$3.97

22

WASHER(10)

7555827

$3.97

23

RAMP,MOVE.BRAKE Substituted by 2200906

5630538

Unavailable

24

RAMP, STAT.BRAKE Substituted by 2200905

5630457

Unavailable

25

SCREW(10)

7512173

Unavailable

26

SEAL, BRAKE

3610026

Unavailable

27

ARM,BRAKE CALIPER

5241458

Unavailable

28

WASHER(10)

7571632

Unavailable

29

BOLT,LH SOC/HD.

7515160

Unavailable

30

PUSHNUT, RED(10)

7670063

Unavailable

31

PIN, COTTER(10)

7661010

$1.19

31

PIN, COTTER(10)

7661010

$1.19

32

WASHER, FLAT(10)

7558201

$5.79

32

WASHER, FLAT(10)

7558201

$5.79

32

WASHER, FLAT(10)

7558201

$5.79

32

WASHER, FLAT(10)

7558201

$5.79

33

SPRING

7041365

Unavailable

34

ROD,BRAKE LOCK

5224759

Unavailable

35

PIN,CLEVIS

7661014

$3.81

36

PAWL,BRAKE,SWEDISH (SWED)

5241794

Unavailable

37

SCREW, SEMS(10)

7512283

$3.97

38

NUT(10)

7542124

$1.19

39

ROD,RATCHET

5241795

$19.05

40

WASHER, FLAT(10)

7555859

$1.19

40

WASHER, FLAT(10)

7555859

$1.19

41

BUSHING,OPEN/CLOSE(10) (SWED)

7080399

Unavailable

41

DESC NOT_AVAILABLE (US)

5432489

Unavailable

42

BOLT(10)

7512232

$1.19

43

DESC NOT_AVAILABLE (SWED)

1910218-067

Unavailable

44

PIN COTTER(10)

7661203

$1.19

44

PIN COTTER(10)

7661203

$1.19

45

WASHER(10)

7555806

$0.79

45

WASHER(10)

7555806

$0.79

46

BRAKE ASM,LINK.ROD (Incl. 49-46)

1910208

Unavailable

46

ROD, BRAKE Substituted by 1910208

5224648

Unavailable

47

NUT(10)

7546701

$3.97

48

CLEVIS(10) (US Only)

7661843

$2.38

49

CLEVIS,THREADED

7080545

$2.19

50

PIN, COTTER(10)

7661103

Unavailable

51

SPRING, EXHAUST(10)

7042031

$6.46

52

BRAKE,FOOT,BLK

1910190-067

Unavailable

53

BUSHING-PEDAL PIVOT

5431107

$8.73

54

WASHER(10)

7555919

$4.99

55

COTTER PIN(10)

7661401

$0.79
