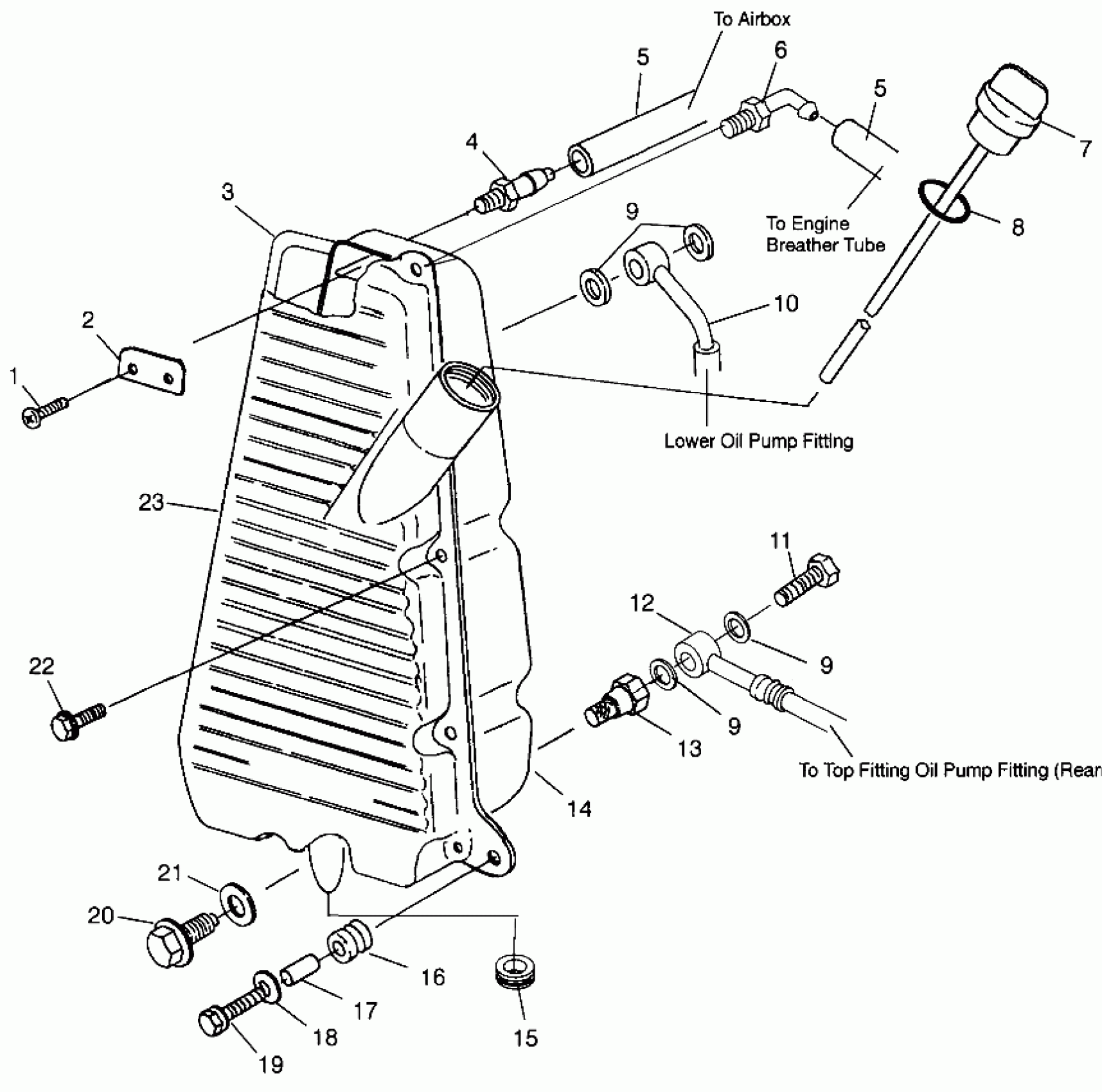

Polaris SPORTSMAN 500 - W969244 OIL TANK SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609B013) Diagram

#

Description
Price

1

SCREW-SEMS(10)

7511848

$3.99

2

PLATE,VENT,OIL TANK

5211523

$13.99

3

GASKET,OIL RESERVOIR

5830053

$54.99

4

FITTING,SURGE TANK,(10)

7052099

$4.79

5

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

5

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

6

FITTING, 90 DEG.

7052144

Unavailable

7

DIPSTICK

5432289

Unavailable

8

O RING

5410889

Unavailable

9

WASHER,COPPER,14MM.

7555896

$1.49

9

WASHER,COPPER,14MM.

7555896

$1.49

9

WASHER,COPPER,14MM.

7555896

$1.49

10

TUBE,BANJO,RETURN

7052109

Unavailable

11

BOLT

7517102

Unavailable

12

TUBE,BANJO INTAKE

7052133

Unavailable

13

SCREEN-OIL FILTER,BANJO

2530020

Unavailable

14

TANK,OIL,LH

5131323

Unavailable

15

Grommet

5411042

Unavailable

16

GROMMET,MTG,RESERVOIR (10)

5410828

$3.99

17

BUSHING,MTG.

5333204

$26.39

18

WASHER(10)

7558301

$1.49

19

SCREW(10)

7512242

$2.39

20

PLUG,MAG.12 M.

7051524

$27.99

21

WASHER

5850135

$3.19

22

SCREW(10)

7515158

$4.79

23

TANK,RH,OIL

5131255

Unavailable
