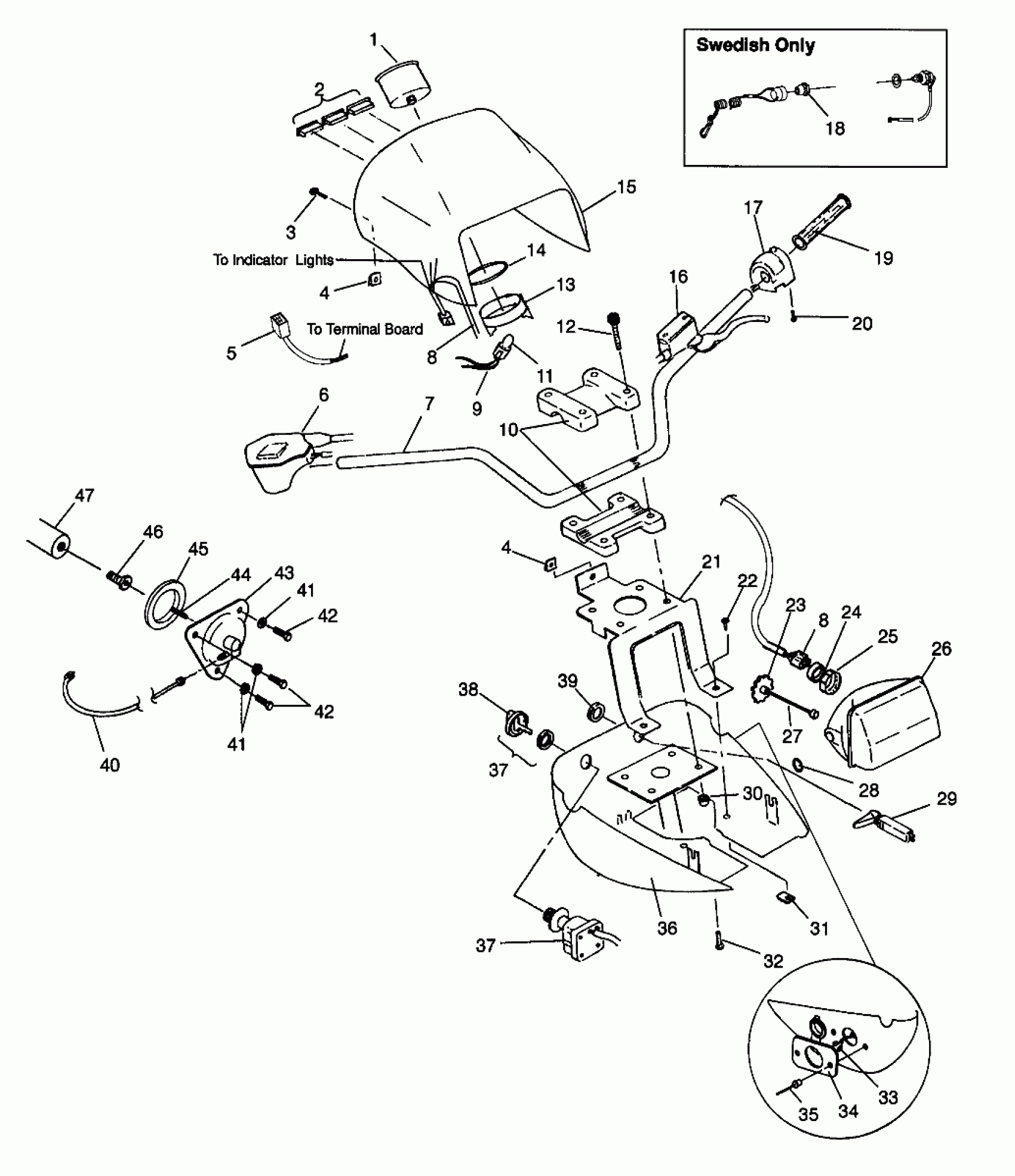

Polaris SPORTSMAN 500 - W969244 HANDLEBAR and HEADLIGHT POD SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 (4936093609B010) Diagram

#

Description
Price

1

SPEEDO,KILOMETER,3",ATV (Swed)

3280258

Unavailable

1

SPEEDO.ASM, 3" Substituted by 3280326 (Incl. 13, 14) (US)

3280172

$237.30

2

INDICATOR'HI-BEAM'WARN.

4040013

Unavailable

2

INDIC"HOT TEMPERATURE"

4040053

$31.99

2

INDIC"NEUT./REV."

4040054

$31.99

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

4

NUT

7670086

$3.99

4

NUT

7670086

$3.99

5

HARNESS,WIRE,INDIC,LOW.

2460574

$62.39

6

THROTTLE CONTROL ASM

2010158

Unavailable

7

TUBE,H'BAR,BLK. Substituted by 5242987-067

5224607-067

$114.99

8

HARNESS,WIRE,INDIC,UP.

2460573

Unavailable

8

HARNESS,WIRE,INDIC,UP.

2460573

Unavailable

9

HARNESS, SPEEDO

2460387

Unavailable

10

KIT,H'BAR BLOCK (Incl. Blocks & 10, 12, 30)

2200774

Unavailable

10

BLOCK,H'BAR RETAINER,BLK

5630616-067

Unavailable

11

BULB TAILLIGHT(10)

4030015

$4.03

12

SCREW(10)

7515188

$2.39

13

CLAMP,BACK,SPEEDO.

3280175

Unavailable

14

GASKET,SHOCK MT.

3280174

$9.11

15

POD,H/L,UP,OLV.GRN. (US)

5431812-191

Unavailable

15

POD,H/L,UP.,SCAND,OLV (SWED)

5432452-191

Unavailable

16

MASTER CYL.ASM. Substituted by 2050078

2050072

$235.51

17

SWITCH,HI/LOW/OFF,LH,H'BAR

4110193

$184.99

18

SWITCH,TETHER (Swed)

4110206

$23.60

19

GRIP, HANDLEBAR

5431030

$24.27

20

SCREW

2010055

Unavailable

21

BRKT,POD MTG,BLK.

5240586-067

Unavailable

22

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

23

KNOB,ADJUSTING

4032079

$23.99

24

BOOT, HEADLIGHT

5411120

$27.99

25

COLLAR,LOCK

4032077

$27.99

26

BULB,QUARTZ.H/L,INDY

2870448

$24.99

26

LENS&REFLECTOR ASM.

4032075

Unavailable

27

ROD,ADJUSTING

4032078

Unavailable

28

O RING

5410163

$1.60

29

KIT-CHOKE CONTROL

2200188

$24.27

29

CABLE,CHOKE CONTROL

7080579

$97.13

30

NUT(10)

7542124

Unavailable

31

NUT,U-TYPE(10)

7670089

$5.59

32

SCREW(10)

7522021

$3.99

33

HARNESS,12V OUTLET

2460471

Unavailable

34

POWERPLUG ASM,12V

2410025

Unavailable

35

RIVET(50)

7621334

$1.49

36

POD,H/L.LOW.BLK Substituted by 5433366-070

5432314-070

$93.08

37

SWITCH, IGNITION (Incl. Key) NOTE: Ignition Key may be ordered by using the four digit number on the key.

4110194

Unavailable

37

SWITCH, IGNITION (Incl. Key) NOTE: Ignition Key may be ordered by using the four digit number on the key.

4110194

Unavailable

38

COVER, KEY Substituted by 5433534

5431964

Unavailable

39

Nut

7080229

$19.99

40

CABLE,SPEEDO,(ATV)

3280236

Unavailable

41

WASHER(10)

7555725

Unavailable

41

WASHER(10)

7555725

Unavailable

42

BOLT(10)

7515378

$1.98

42

BOLT(10)

7515378

$1.98

43

ADAPTER,DRIVE(1:1.2)

3280219

Unavailable

44

KEY,SPEEDO.DRIVE

3280217

Unavailable

45

SEAL,ANGLE DRIVE

3280164

Unavailable

46

BUSHING,SPEEDO.DRIVE

5020741

$9.03

47

Shaft, Output, Transmission (See Pg., Ref.)

-------

Unavailable
