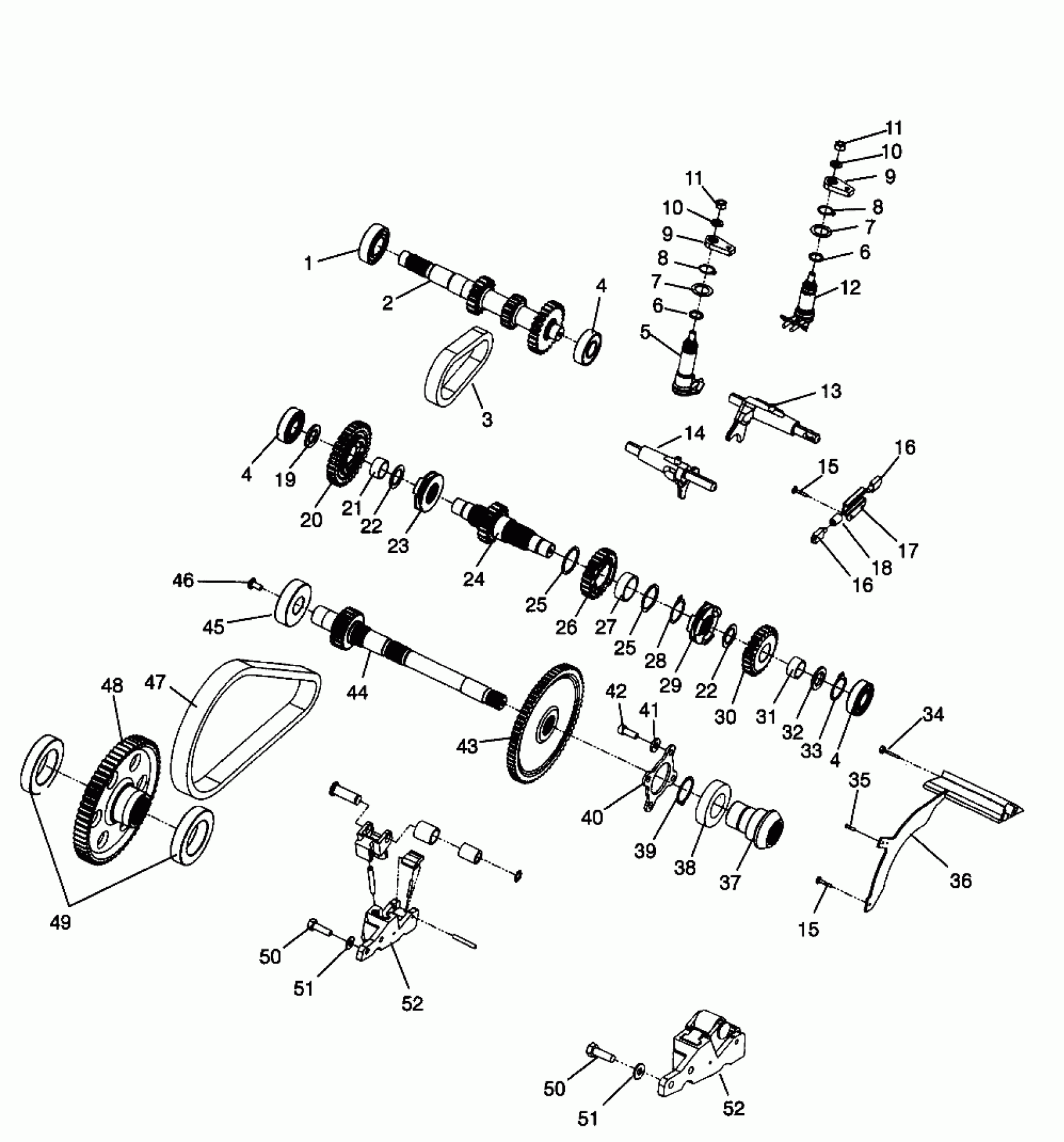

Polaris SPORTSMAN 500 - W969244 GEARCASE (Internal Components) SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN (4936093609C013) Diagram

#

Description
Price

-

GEARCASE ASM,SHAFT,PRD Substituted by 1341226 (Incl. 1-52 and all on Gearcase (Cases and Snorkel)Page)

1341153

Unavailable

1

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

2

SHAFT, INPUT Substituted by 3233122

3233243

Unavailable

3

CHAIN,SILENT,34P (11W)

3233036

Unavailable

4

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

4

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

4

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

5

SHAFT,SHIFT,H/R

3233342

Unavailable

6

O-RING Substituted by 3233548

3233044

Unavailable

6

O-RING Substituted by 3233548

3233044

Unavailable

7

Washer

3233040

$9.59

7

Washer

3233040

$9.59

8

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

8

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

9

Bellcrank

3233153

$27.99

9

Bellcrank

3233153

$27.99

10

Washer

3233054

$6.46

10

Washer

3233054

$6.46

11

Nut

3233055

Unavailable

11

Nut

3233055

Unavailable

12

SHAFT,SHIFT,LOW

3233258

$65.46

13

FORK ASM,SHIFT,LOW

3233259

$159.99

14

FORK ASM,SHIFT,H/R

3233260

Unavailable

15

SCREW Substituted by 3233747

3233033

Unavailable

15

SCREW Substituted by 3233747

3233033

Unavailable

16

PIN,INTERLOCK

3233308

Unavailable

16

PIN,INTERLOCK

3233308

Unavailable

17

BRACKET,INTERLOCK

3233309

$20.63

18

Spring

3233032

$12.94

19

WASHER

3233007

Unavailable

20

GEAR, 33T

3233125

Unavailable

21

BEARING,NEEDLE

3233009

$39.99

22

Washer

3233010

Unavailable

22

Washer

3233010

Unavailable

23

DOG,ENGAGEMENT,LOW

3233126

Unavailable

24

SHAFT,REVERSE

3233175

$369.99

25

WASHER

3233012

Unavailable

25

WASHER

3233012

Unavailable

26

SPROCKET, 24T

3233127

Unavailable

27

BEARING, NEEDLE

3233014

$43.99

28

RING,RETAINING

3233029

$5.59

29

DOG,ENGAGEMENT,HI/REV.

3233128

Unavailable

30

GEAR, 25T Substituted by 3233129

3233244

Unavailable

31

BEARING,NEEDLE

3233017

$35.99

32

Washer

3233176

$9.59

33

RING,RETAINING

3233177

$6.39

34

SCREW

3233283

$1.99

35

Screw

3233282

Unavailable

36

DEFLECTOR,OIL

3233284

Unavailable

37

GEAR,16T,SPIRAL BEVEL,SNORKEL

3233365

Unavailable

38

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.99

39

RING,RETAINING

3233364

$6.39

40

COVER,CTR.DRIVE BRG.

3233263

Unavailable

41

LOCK WASHER(10)

7552901

$1.49

42

Screw

3233262

$1.83

43

GEAR, 65T

3233130

$214.75

44

DRIVESHAFT,CTR.

3233261

Unavailable

45

BEARING

3233020

$47.99

46

BUSHING,SPEEDO.DRIVE

5020741

$9.03

47

CHAIN,SILENT,86P (15W)

3233267

Unavailable

48

SPROCKET,60T

3233269

Unavailable

49

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

50

Screw

3233252

$5.27

50

Screw

3233252

$5.27

51

WASHER, LOCK

3233272

Unavailable

51

WASHER, LOCK

3233272

Unavailable

52

TENSIONER,CHAIN

3233348

Unavailable

52

TENSIONER,CHAIN

3233348

Unavailable
