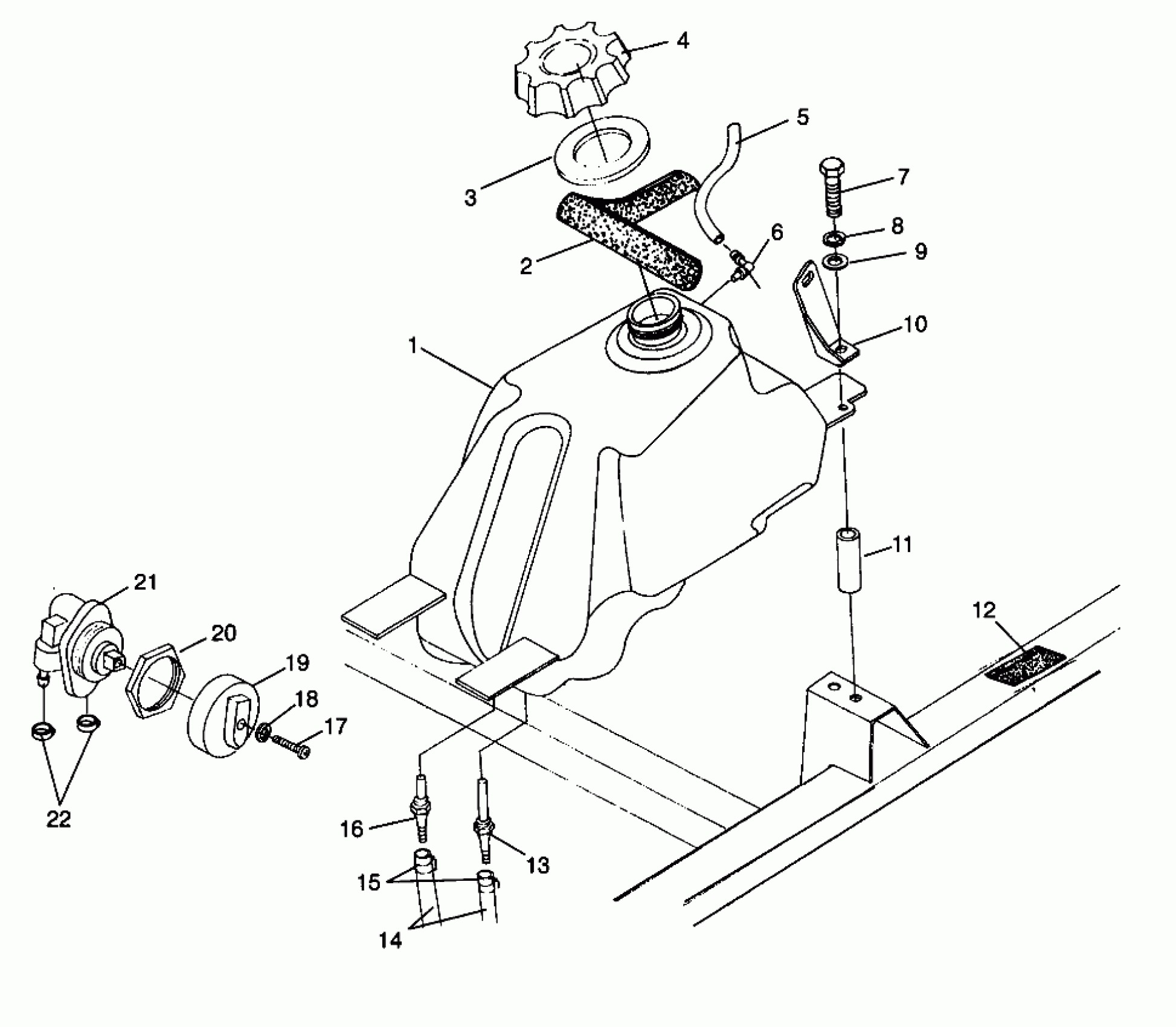

Polaris SPORTSMAN 500 - W969244 FUEL TANK SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609A014) Diagram

FUELTANK ASM. Substituted by 2520144

2511265

Unavailable

SEAL-FOAM,21 IN

5811310

Unavailable

GASKET-GAS CAP

5810144

$5.59

CAP, GAS, (BLACK)

5430725

$24.27

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

Vent, Tank

5431053

$19.99

SCREW(10)

7515349

Unavailable

LOCK WASHER(10)

7552901

$1.49

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

BRKT,LH.R.FUELCOVER,BLK.

5222154-067

Unavailable

BRKT,RH.R.FUELCOVER,BLK.

5222155-067

Unavailable

Spacer

5332457

Unavailable

PAD,FUELTANK BRKT. Substituted by 8360026

5810317

Unavailable

FITTING,FUEL OUT,MAIN,4",Y

7052150

$27.99

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

HOSE CLAMP, RED

7080003

$1.49

FITTING,FUEL OUT,RES.,Z

7052149

$23.99

SCREW, S.S.(10)

7516302

$3.99

WASHER, FLAT, S.S.(10)

7555840

$3.35

KNOB,FUEL VALVE Substituted by 5432559

5431807

Unavailable

NUT, FUEL VALVE

5431451

Unavailable

VALVE, CHECK

7052063

Unavailable

CLAMP, HOSE, S.S.(10)

7080476

$6.39
