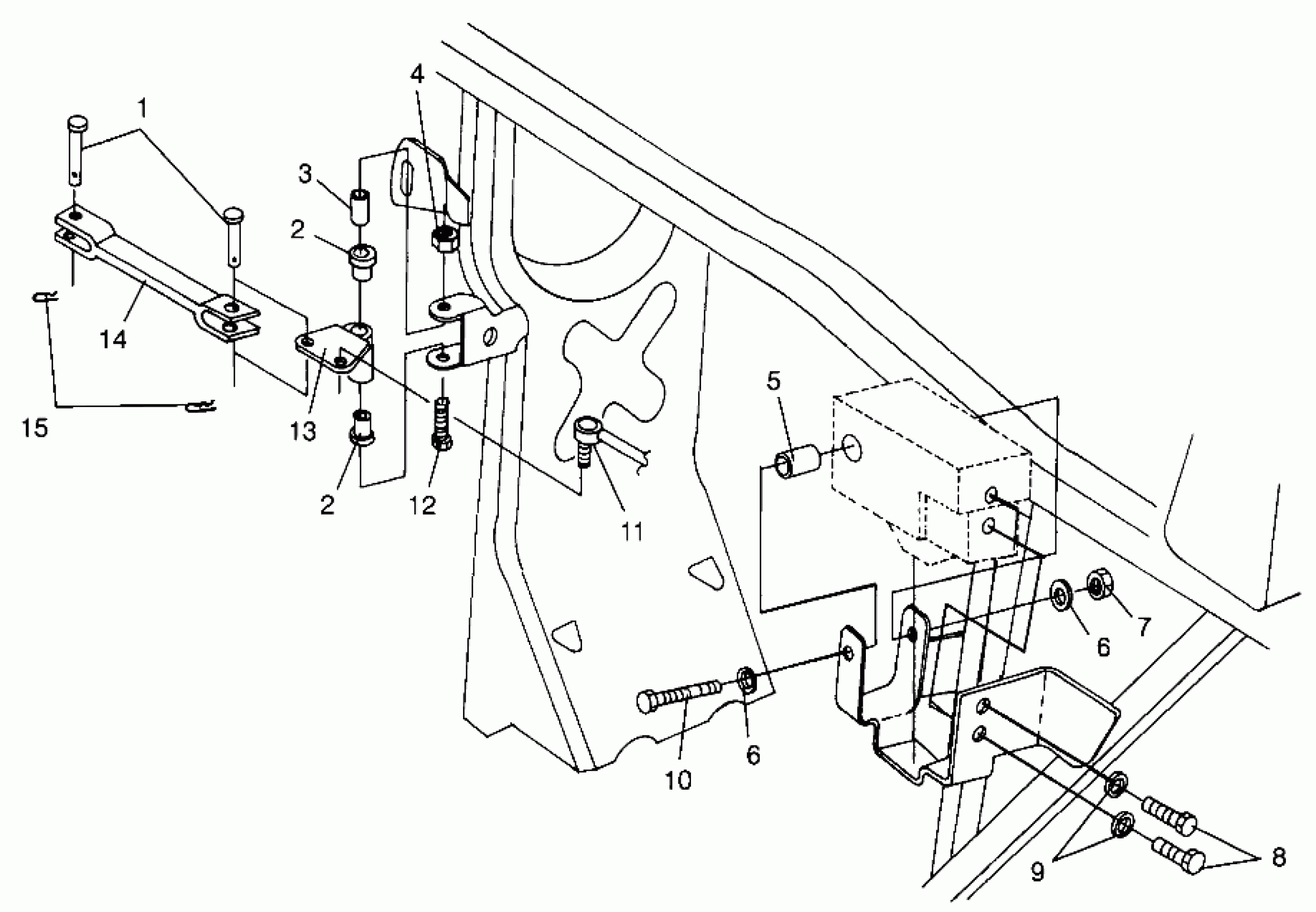

Polaris SPORTSMAN 500 - W969244 FRAME MOUNTING SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609B014) Diagram

#

Description
Price

1

PIN,CLEVIS

7661013

$5.59

2

BUSHING-PEDAL PIVOT

5431107

$8.79

2

BUSHING-PEDAL PIVOT

5431107

$8.79

3

TUBE,PIVOT,(INTERNAL)

5020850

$39.99

4

NUT(10)

7542124

Unavailable

5

SPACER

5333456

Unavailable

6

WASHER(10)

7558301

$1.49

6

WASHER(10)

7558301

$1.49

7

NUT-LOCK(10)

7542122

$1.49

8

BOLT(10)

7512269

Unavailable

9

WASHER(10)

7552605

$5.27

10

BOLT(10)

7512249

Unavailable

11

Rod End, LH (See Pg., Ref.)

-------

Unavailable

12

SCREW(10)

7512144

Unavailable

13

PIVOT,SHIFT,BLK

1040494-067

Unavailable

14

ARM, SHIFT,(MACH)

5131277

Unavailable

15

PIN, COTTER(10)

7661103

$4.99
