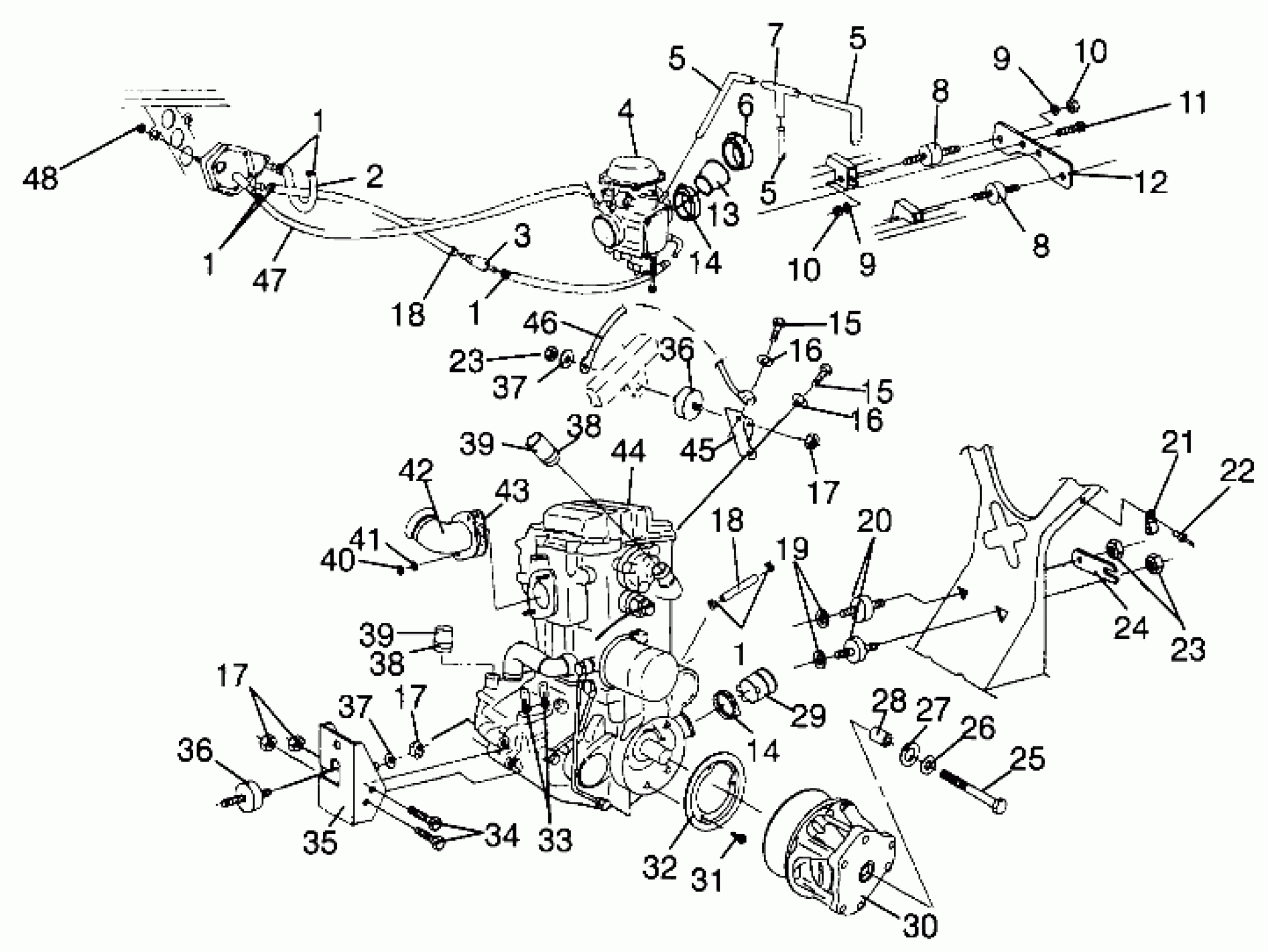

Polaris SPORTSMAN 500 - W969244 ENGINE MOUNTING SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609A011) Diagram

#

Description
Price

1

HOSE CLAMP, RED

7080003

$1.49

1

HOSE CLAMP, RED

7080003

$1.49

1

HOSE CLAMP, RED

7080003

$1.49

1

HOSE CLAMP, RED

7080003

$1.49

2

HOSE-FORMED,1/4" ID

5411015

Unavailable

3

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

4

Asm., Carburetor (See Pg., Ref.)

-------

Unavailable

5

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

5

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

5

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

6

CLAMP,BAND,NARROW

7080656

Unavailable

7

FITTING, TEE

7052075

$9.59

8

Mount, Rubber

3110032

$7.99

8

Mount, Rubber

3110032

$7.99

9

WASHER(10)

7552605

$5.27

9

WASHER(10)

7552605

$5.27

10

NUT HEX(10)

7542105

$3.99

10

NUT HEX(10)

7542105

$3.99

11

Asm., Screw and Washer (See pg., Ref.)

-------

Unavailable

12

STRAP,CARB.MT,BLK.

5211626-067

Unavailable

13

BOOT,CARB

5410995

Unavailable

14

CLAMP, NARROW BAND(10)

7080511

$4.79

14

CLAMP, NARROW BAND(10)

7080511

$4.79

15

BOLT(10)

7512315

$4.79

15

BOLT(10)

7512315

$4.79

16

LOCK WASHER(10)

7552901

$1.49

16

LOCK WASHER(10)

7552901

$1.49

17

NUT LOCK(10)

7542403

$3.99

17

NUT LOCK(10)

7542403

$3.99

17

NUT LOCK(10)

7542403

$3.99

18

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

18

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

19

WASHER, FLAT(10)

7555815

$3.99

20

MOUNT,RUBBER,FRONT

3110046

Unavailable

21

CLAMP,NYLON,CABLE(10)

7080539

$4.79

22

RIVET(50)

7621462

$1.49

23

NUT LOCK(10)

7542411

$3.19

23

NUT LOCK(10)

7542411

$3.19

24

STRAP,FRAME SUPPORT,BLK

5224658-067

Unavailable

25

BOLT(10)

7512566

$30.79

26

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

27

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

28

BUSHING-.437 X.770 X.50

5430261

$7.19

29

BOOT,CLUTCH INTAKE

5410421

$11.19

30

Asm., Drive Clutch (See Pg., Ref.)

-------

Unavailable

32

BRKT,RETAINER SEAL,BLK. Substituted by 5242046-067

5240409-067

Unavailable

33

CLAMP-HOSE,.875-SS

7080474

$8.40

34

BOLT(10)

7512435

$3.99

35

MOUNT,FR.ENGINE,BLK.

5241150-067

Unavailable

36

MOUNT,RUBBER,TOP

3110044

Unavailable

36

MOUNT,RUBBER,TOP

3110044

Unavailable

37

WASHER(10)

7555801

$3.99

37

WASHER(10)

7555801

$3.99

38

CLAMP,HOSE,1",NYLON

7080653

$4.79

38

CLAMP,HOSE,1",NYLON

7080653

$4.79

39

HOSE, WATER Substituted by 8450050-305

8450050-63

Unavailable

39

HOSE, WATER Substituted by 8450050-305

8450050-63

Unavailable

40

NUT(10)

3080285

Unavailable

41

WASHER LOCK ,(10)

3080530

$3.19

42

MANIFOLD,BLK

1260771-029

Unavailable

43

Gasket Complete, Exhaust (See Pg., Ref.)

-------

Unavailable

44

ENG.(S.B.)EH50PLE-01 Substituted by 3085556

3085235

Unavailable

45

MOUNT,ENG,TOP,BLK

5241453-067

Unavailable

46

CABLE,GROUND/ENG.

4010067

Unavailable

47

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

48

NUT-M5X.8,HX NYL-Y

7546601

$1.49
