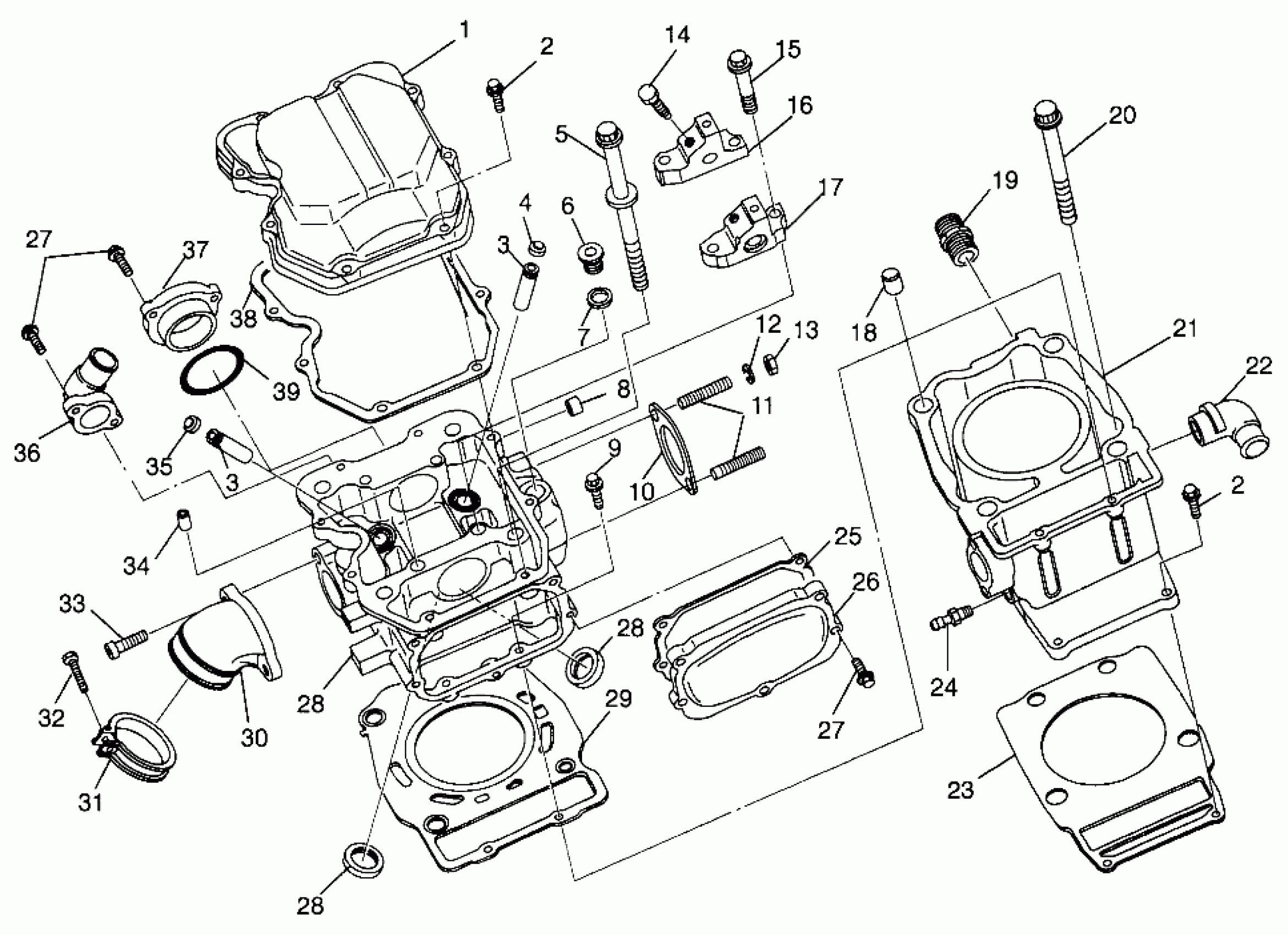

Polaris SPORTSMAN 500 - W969244 CYLINDER SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609D003) Diagram

#

Description
Price

1

COVER,ROCKER

3085073

$75.99

2

BOLT, FLANGE

3084874

Unavailable

2

BOLT, FLANGE

3084874

Unavailable

3

GUIDE,VALVE

3084994

$39.99

3

GUIDE,VALVE

3084994

$39.99

4

SEAL,EXHAUST VALVE

3084859

$23.99

5

BOLT

3084875

Unavailable

6

PLUG

3084860

$7.19

7

GASKET

3084861

$4.79

8

PLUG, BLIND

3084862

Unavailable

9

BOLT, FLANGE Substituted by 3086781

3084215

Unavailable

10

GASKET,EXH.

3085075

$39.99

11

STUD (10)

3080016

$5.75

12

WASHER LOCK ,(10)

3080530

$3.19

13

NUT(10)

3080285

Unavailable

14

BOLT

3084880

Unavailable

15

BOLT

3084876

$4.79

16

SUPPORT,VALVE ROCKER

3084864

Unavailable

17

SUPPORT,VALVE ROCKER

3084863

$91.99

18

PIN,STRAIGHT

3084838

Unavailable

19

UNION,OIL PUMP

3084849

Unavailable

20

BOLT, FLANGE

3084873

Unavailable

21

CYLINDER Substituted by 3085526 (Incl. 22)

3085369

Unavailable

22

PIPE, 2 ELBOW Substituted by 3086747 (Elbow)

3084130

Unavailable

23

Gasket, Cylinder

3085370

$38.60

24

UNION,(BREATHER) (Breather)

3084850

Unavailable

25

GASKET Substituted by 3086200

3084869

Unavailable

26

Cover, Camshaft

3084868

Unavailable

27

BOLT,FLANGE(10)

3084877

Unavailable

27

BOLT,FLANGE(10)

3084877

Unavailable

28

HEAD,CYLINDER Substituted by 3085527 (Incl. 3, 4, 6-8, 11, 34, 35)

3085071

Unavailable

28

HEAD,CYLINDER Substituted by 3085527 (Incl. 3, 4, 6-8, 11, 34, 35)

3085071

Unavailable

29

GASKET, HEAD (Head)

3085371

$55.99

30

ADAPTER

3084879

Unavailable

31

BAND ASM. (Incl. 32)

3083166

$19.84

32

SCREW,(10)

3081497

$2.39

33

Bolt, Allen

3081330

$3.99

34

PIN,STRAIGHT

3084857

Unavailable

35

SEAL,INTAKE VALVE

3084858

$13.59

36

ADAPTER,(WATER OUT) Substituted by 3084870

3085072

Unavailable

37

ADAPTER,CAMSHAFT

3084866

Unavailable

38

GASKET,(R.COVER)

3085074

$31.99

39

O-RING

3084867

$23.99
