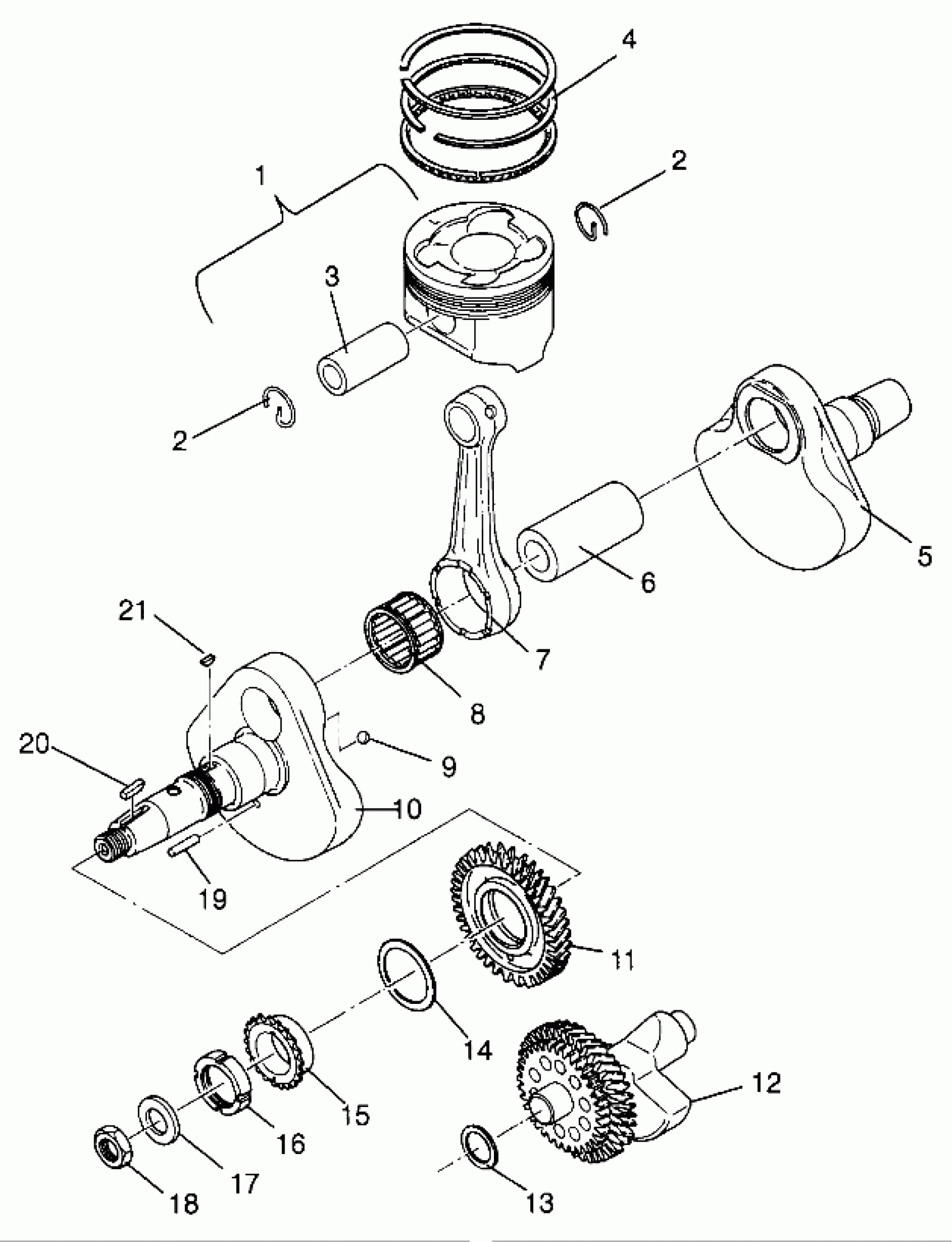

Polaris SPORTSMAN 500 - W969244 CRANKSHAFT and PISTON SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S9692 (4936093609D004) Diagram

PISTON & PIN,.50MM/.020"OS Substituted by 3085868 (.020"/0.50mm O/S) (Incl. 1, 3)

3085403

Unavailable

PISTON & PIN,.25MM/.010"OS Substituted by 3085867 (.010"/0.25mm O/S) (Incl. 1, 3)

3085402

Unavailable

PISTON&PIN ASM. (Std) (Incl. 1, 3)

3085377

Unavailable

CIRCLIP

3084890

Unavailable

CIRCLIP

3084890

Unavailable

PIN, PISTON

3085378

Unavailable

RING SET,(STD) * (Std)

3085379

$71.24

RING SET,(.25MM/.010 OS) (.010"/0.25mm O/S)

3085380

$76.17

RING SET,(.50MM/.020 OS) (.020"/0.50mm O/S)

3085381

$75.99

CRANKSHAFT#2,PTO SIDE

3085374

$338.29

Pin, Crank

3085341

$109.27

ROD,CONNECTING

3085376

$186.17

BEARING,LARGE END Substituted by 3085343

3085400

$78.56

BALL, STEEL

3085024

$6.46

CRANKSHAFT#1,MAG SIDE

3085373

Unavailable

CRANKSHAFT ASM. (Incl. 5-11, 19)

3085399

Unavailable

GEAR,BALANCER #1 Substituted by 3085852

3085401

Unavailable

SHAFT,BALANCER *

3085404

Unavailable

SPACER (1.2)

3084897

$6.35

SPACER (0.8)

3084895

$6.35

SPACER (1.0)

3084896

$6.35

SPACER (1.2)

3084894

$19.84

SPACER (0.6)

3240088

$12.99

SPACER (1.0)

3084893

Unavailable

SPACER (0.8)

3084892

$12.70

SPROCKET 1

3084882

Unavailable

NUT, SLIT

3084884

$35.71

WASHER Substituted by 3086767

3083904

Unavailable

LOCKNUT

3083905

Unavailable

Pin, Dowel

3085346

Unavailable

KEY

3081447

Unavailable

KEY Substituted by 3081543

3080130

$13.75
