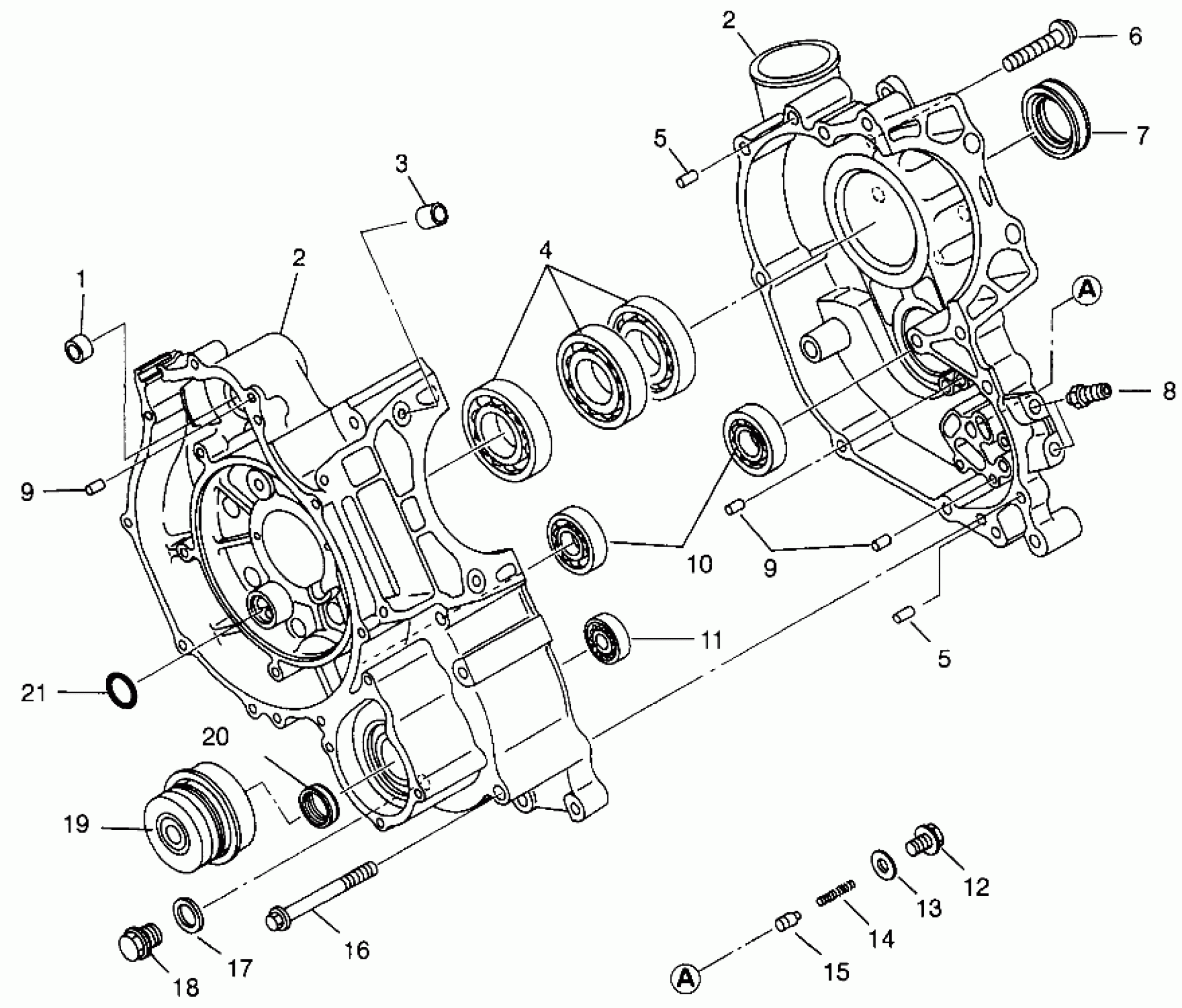

Polaris SPORTSMAN 500 - W969244 CRANKCASE SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609D002) Diagram

#

Description
Price

1

BUSHING, STARTER (Starter)

3083669

Unavailable

2

CRANKCASE ASM. (Incl. 1, 4, 5, 7, 9, 10, 11, 16, 19, 20)

3085398

Unavailable

2

CRANKCASE ASM. (Incl. 1, 4, 5, 7, 9, 10, 11, 16, 19, 20)

3085398

Unavailable

3

PIN,STRAIGHT

3084838

Unavailable

4

BEARING, BALL

3080676

Unavailable

5

Pin, Dowel

3084840

$6.46

5

Pin, Dowel

3084840

$6.46

6

SCREW & WASHER(10)

3084205

$3.97

7

SEAL, OIL

3084839

$28.32

8

Union

3084842

$32.37

9

PIN, DOWEL Substituted by 3086838

3080103

$7.14

9

PIN, DOWEL Substituted by 3086838

3080103

$7.14

10

BEARING,BALL

3084834

Unavailable

11

BEARING,BALL

3084835

$31.75

12

PLUG

3084845

Unavailable

13

GASKET,(ALUM.)(10)

3084846

$5.65

14

SPRING

3084844

$4.84

15

VALVE Substituted by 3086810

3084843

Unavailable

16

BOLT,FLANGE

3084841

$3.17

17

GASKET

3082956

$4.84

18

PLUG

3086749

Unavailable

19

SEAL,MECHANICAL

3084837

$68.79

20

SEAL, OIL

3084836

Unavailable

21

O-RING

3084847

$6.46
