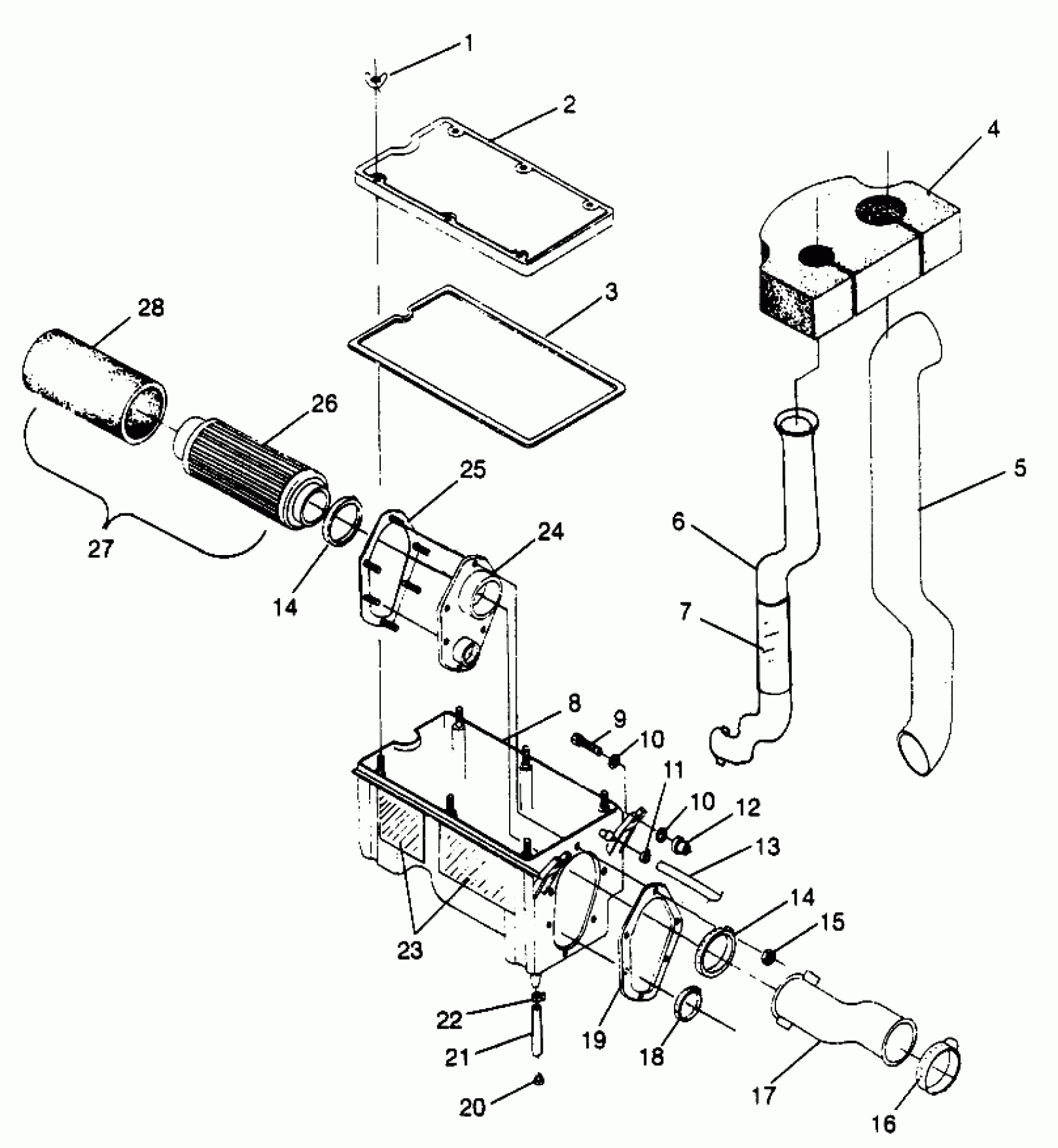

Polaris SPORTSMAN 500 - W969244 AIR BOX SPORTSMAN 500 W969244 (4936093609B001) Diagram

#

Description
Price

1

NUT,WING(10)

7542127

$1.49

2

COVER, AIRBOX

5432142

Unavailable

3

SEAL,COVER,AIR INTAKE

5410996

$11.99

4

SEAL-FOAM

5811309

Unavailable

5

DUCT-AIR INLET, CLUTCH

5432086

Unavailable

6

DUCT,INLET SILENCER

5432144

Unavailable

7

FOIL-TAPE,AIR BOX

5811373

$2.47

8

BOX-AIR INTAKE Substituted by 5432667

5432085

$127.40

9

SCREW(10)

7512279

$1.49

10

WASHER, FLAT(10)

7555859

$1.49

10

WASHER, FLAT(10)

7555859

$1.49

11

HOSE CLAMP, RED

7080003

$1.49

12

NUT-WELL(10)

7541923

$5.59

13

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

14

CLAMP,BAND,NARROW

7080413

$3.19

14

CLAMP,BAND,NARROW

7080413

$3.19

15

NUT, LOCK(10) Substituted by 7541925

7541929

Unavailable

16

CLAMP,BAND,NARROW

7080656

Unavailable

17

DUCT-CARB, INLET

5432143

Unavailable

18

CLAMP-HOSE, 1.750-SS

7080560

$11.19

19

PLATE,AIRBOX RETAINER,ZINC

5241339

Unavailable

20

Plug, Trap

5432377

Unavailable

21

FUEL LINE

8450059-150

Unavailable

22

CLAMP,HOSE(10)

7080544

Unavailable

23

FOIL-TAPE, AIR BOX

5811138

Unavailable

24

BOOT-SILENCER

5411014

Unavailable

25

PLATE,RETAINER

1040463

Unavailable

26

FILTER,AIR INTAKE

7080595

Unavailable

27

FILTER ASM, AIR (Incl. 28, 26)

1253144

$31.99

28

FOAM, FILTER

5811137

$11.19
