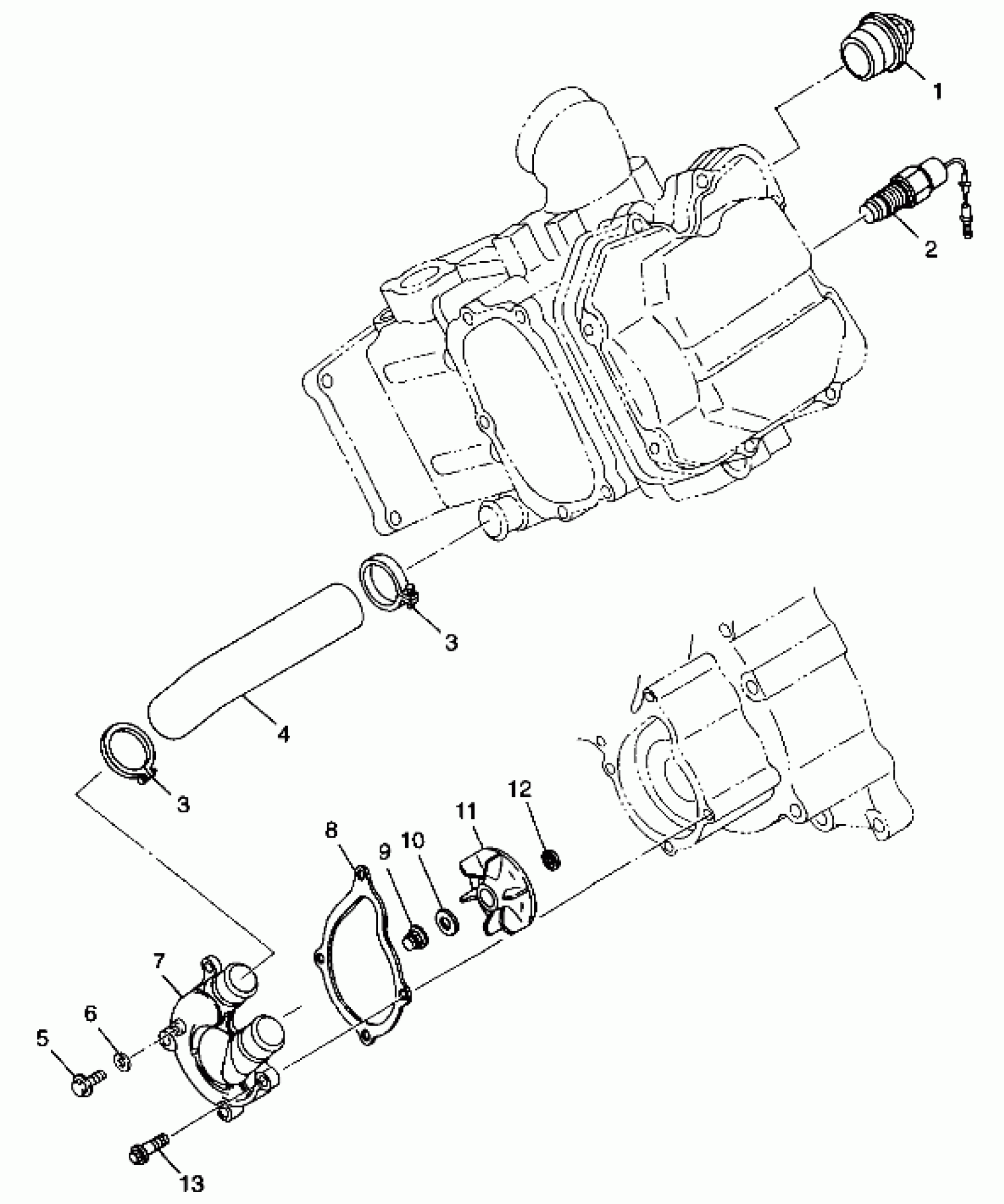

Polaris SPORTSMAN 500 RSE - A99CH50AC WATER PUMP - A99CH50AC (4952455245d013) Diagram

#

Description

Price

1

THERMOSTAT *

3084940

$91.99

2

SWITCH,THERMO. *

3085352

$127.99

3

CLAMP, HOSE Substituted by 3086774

3084191

$12.99

3

CLAMP, HOSE Substituted by 3086774

3084191

$12.99

4

HOSE,MAIN

3085857

Unavailable

5

BOLT,FLANGE(10)

3085359

$2.39

6

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

7

COVER,WATER PUMP

3085351

Unavailable

8

GASKET,WATER PUMP Substituted by 3086840

3084937

Unavailable

9

NUT,SELF-LOCK

3085077

$9.59

10

WASHER(10) Substituted by 7555998

3083138

Unavailable

11

IMPELLER,WATER PUMP

3084935

$39.99

12

WASHER,SEAL

3084942

Unavailable

13

BOLT,FLANGE(10)

3084877

Unavailable
