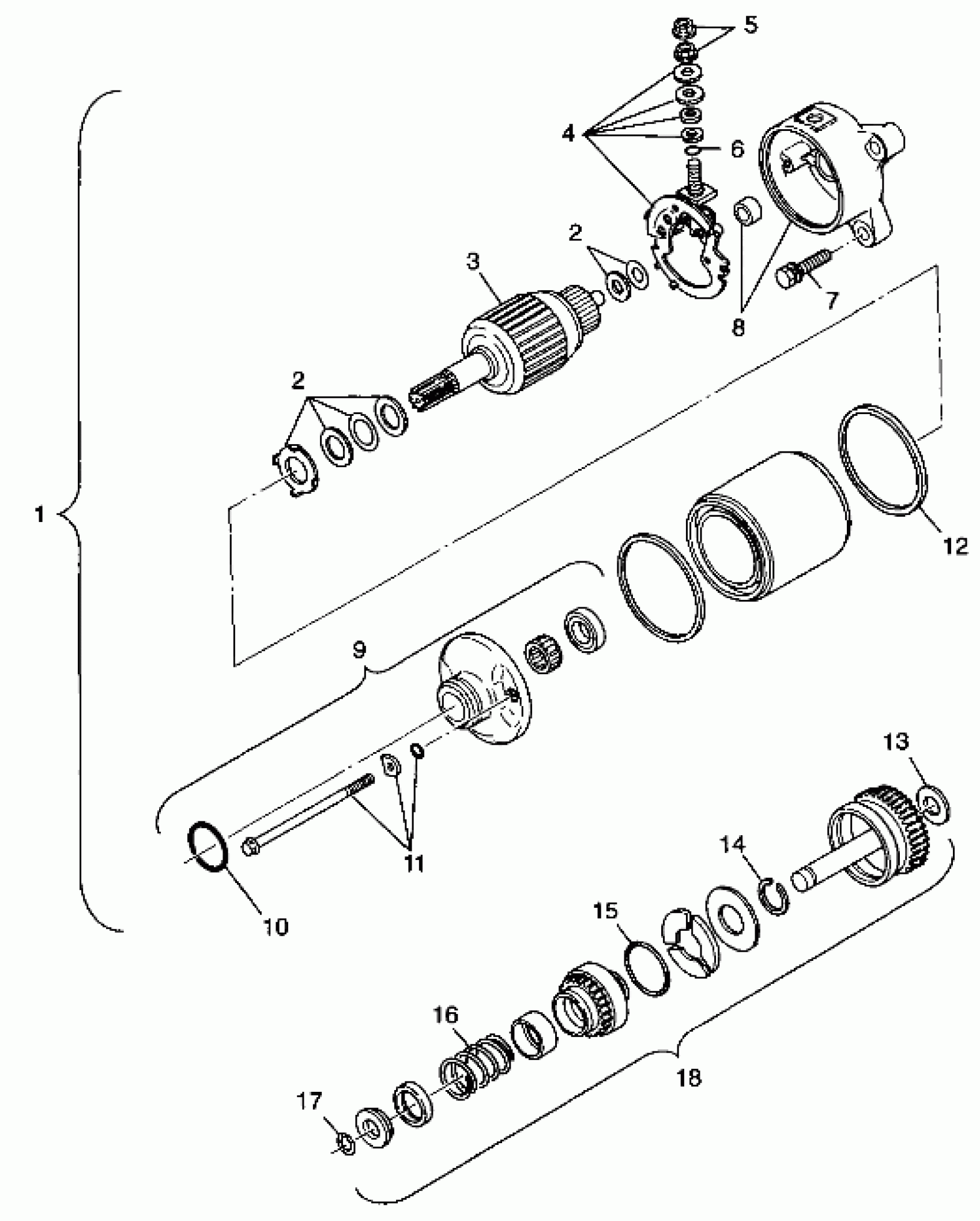

Polaris SPORTSMAN 500 RSE - A99CH50AC STARTING MOTOR - A99CH50AC (4952455245e003) Diagram

#

Description
Price

1

MOTOR, STARTING * (Incl. 2-6,8-12)

3084981

$427.49

2

Washer Set

3084982

Unavailable

2

Washer Set

3084982

Unavailable

3

ARMATURE ASM.

3085353

Unavailable

4

BRUSH,COMPL.2-POLE *

3084406

$125.46

5

NUT, FLANGE(10)

3083649

$3.97

6

O-RING

3084408

Unavailable

7

BOLT&WASHER ASM.

3082038

$3.97

8

COVER,REAR,STARTER(MAGNUM)

3085034

$93.08

9

COVER,FRT,STARTER(MAGNUM) * (Incl. 10)

3085033

$145.70

10

O-Ring

3240114

$6.99

11

BOLT ASM, SET (Incl. 6)

3084983

$23.81

12

RING, RUBBER

3084405

Unavailable

13

WASHER, GEARSHAFT Substituted by 7555908

3083737

$3.17

14

CLIP

3084412

$9.52

15

SPRING, WEIGHT

3084411

$15.56

16

SPRING, RETURN

3084410

Unavailable

17

CLIP

3084409

$7.14

18

SHAFT ASM,GEAR Substituted by 3087030 (Incl. 13-17)

3085394

$271.10
