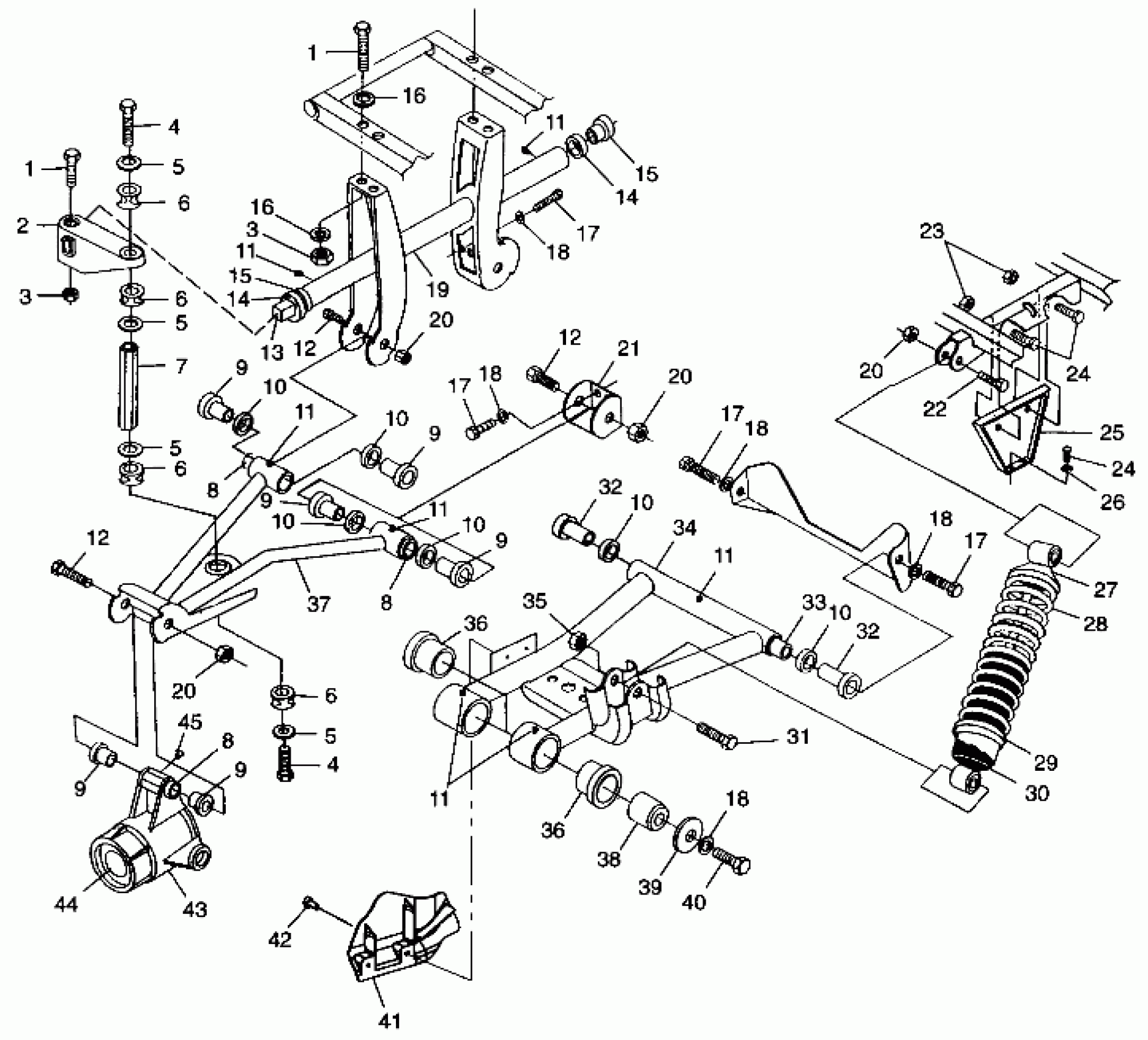

Polaris SPORTSMAN 500 RSE - A99CH50AC REAR SUSPENSION - A99CH50AC (4952455245c009) Diagram

#

Description
Price

1

BOLT(10)

7512329

$3.99

1

BOLT(10)

7512329

$3.99

2

ARM,STAB.BAR,BLK

1580107-067

$62.92

3

NUT FLEX-LOC(10)

7542303

$6.39

3

NUT FLEX-LOC(10)

7542303

$6.39

4

SCREW(10)

7517231

$7.19

4

SCREW(10)

7517231

$7.19

5

WASHER(10)

7555761

$2.39

5

WASHER(10)

7555761

$2.39

5

WASHER(10)

7555761

$2.39

5

WASHER(10)

7555761

$2.39

6

BUSHING,STAB.LINK

5432598

$6.39

6

BUSHING,STAB.LINK

5432598

$6.39

6

BUSHING,STAB.LINK

5432598

$6.39

6

BUSHING,STAB.LINK

5432598

$6.39

7

ROD-LINKAGE, STABILIZER

5020827

$47.99

8

SHAFT,A-ARM,SHORT

5020826

$11.99

8

SHAFT,A-ARM,SHORT

5020826

$11.99

8

SHAFT,A-ARM,SHORT

5020826

$11.99

9

BUSHING,A-ARM,SHORT Substituted by 5433063

5432091

$2.38

9

BUSHING,A-ARM,SHORT Substituted by 5433063

5432091

$2.38

9

BUSHING,A-ARM,SHORT Substituted by 5433063

5432091

$2.38

9

BUSHING,A-ARM,SHORT Substituted by 5433063

5432091

$2.38

9

BUSHING,A-ARM,SHORT Substituted by 5433063

5432091

$2.38

9

BUSHING,A-ARM,SHORT Substituted by 5433063

5432091

$2.38

10

BUSHING,A-ARM SPACER(10)

5020677

$10.39

10

BUSHING,A-ARM SPACER(10)

5020677

$10.39

10

BUSHING,A-ARM SPACER(10)

5020677

$10.39

10

BUSHING,A-ARM SPACER(10)

5020677

$10.39

10

BUSHING,A-ARM SPACER(10)

5020677

$10.39

10

BUSHING,A-ARM SPACER(10)

5020677

$10.39

11

ZERK,FITTING,THREADED(10)

7080433

$1.49

11

ZERK,FITTING,THREADED(10)

7080433

$1.49

11

ZERK,FITTING,THREADED(10)

7080433

$1.49

11

ZERK,FITTING,THREADED(10)

7080433

$1.49

11

ZERK,FITTING,THREADED(10)

7080433

$1.49

11

ZERK,FITTING,THREADED(10)

7080433

$1.49

12

BOLT(10)

7515472

$2.39

12

BOLT(10)

7515472

$2.39

12

BOLT(10)

7515472

$2.39

13

BAR,STAB.TUBE,BLK.

5333393-067

Unavailable

14

WASHER(10)

7555939

Unavailable

14

WASHER(10)

7555939

Unavailable

15

BUSHING,STAB.TUBE Substituted by 5433413

5432169

Unavailable

15

BUSHING,STAB.TUBE Substituted by 5433413

5432169

Unavailable

16

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

16

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

17

SCREW(10)

7512492

$1.49

17

SCREW(10)

7512492

$1.49

17

SCREW(10)

7512492

$1.49

17

SCREW(10)

7512492

$1.49

18

WASHER(10)

7552603

$1.49

18

WASHER(10)

7552603

$1.49

18

WASHER(10)

7552603

$1.49

18

WASHER(10)

7552603

$1.49

18

WASHER(10)

7552603

$1.49

19

SUPPORT,STABILIZER,BLK.

1541322-067

Unavailable

20

NUT LOCK(10)

7542403

$3.99

20

NUT LOCK(10)

7542403

$3.99

20

NUT LOCK(10)

7542403

$3.99

20

NUT LOCK(10)

7542403

$3.99

21

BRKT,A-ARM,PIVOT,BLK

5242077-067

Unavailable

22

BOLT Substituted by 7515491

7515433

$1.59

23

NUT LOCK(10)

7542321

$1.49

24

BOLT(10)

7515321

$1.49

24

BOLT(10)

7515321

$1.49

25

SUPPORT,UPR.TRANS,BLK

5224667-067

$74.99

26

LOCK WASHER(10)

7552901

$1.49

27

RETAINER,SPRING

5630885

$10.03

28

SPRING,COMP.REAR, BLK

7041453-067

$94.99

29

CAM,ADJUST,SPRING

5630551

$31.99

30

SHOCK-RR,2",INDEP SUSP

7041770

$168.87

31

BOLT(10)

7515415

$1.49

32

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

Unavailable

32

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

Unavailable

33

SHAFT,A-ARM Substituted by 5020681

5020964

Unavailable

34

ARM,CONTROL,LH,LOW,BLK.

1012717-067

Unavailable

34

ARM,CONTROL,RH,LOW,BLK.

1012718-067

Unavailable

35

NUT-LOCK(10)

7542439

$1.49

36

BUSHING,CONTROL,LOWER Substituted by 5433065

5432092

Unavailable

36

BUSHING,CONTROL,LOWER Substituted by 5433065

5432092

Unavailable

37

CONTROL,UPPER,ARM,BLK,LH

1040730-067

Unavailable

37

CONTROL,UPPER,ARM,BLK.RH

1040731-067

Unavailable

38

BUSHING,BRNG.CARRIER

5131883

$35.99

39

WASHER(10)

7555936

$4.99

40

SCREW(10)

7517297

$5.99

41

SHIELD,CV,LH,BLK. Substituted by 5433098-070

5433098

Unavailable

41

SHIELD-CV.BLK,RH Substituted by 5433099-070

5433099

Unavailable

42

SCREW(10)

7512084

$1.49

43

CARRIER,WHL.BEARING,(MACH)

5131738

$111.96

44

BEARING,CARRIER,WHEEL

3585502

Unavailable

45

FITTING,LUBE,45 DEG.(10)

7080586

Unavailable
