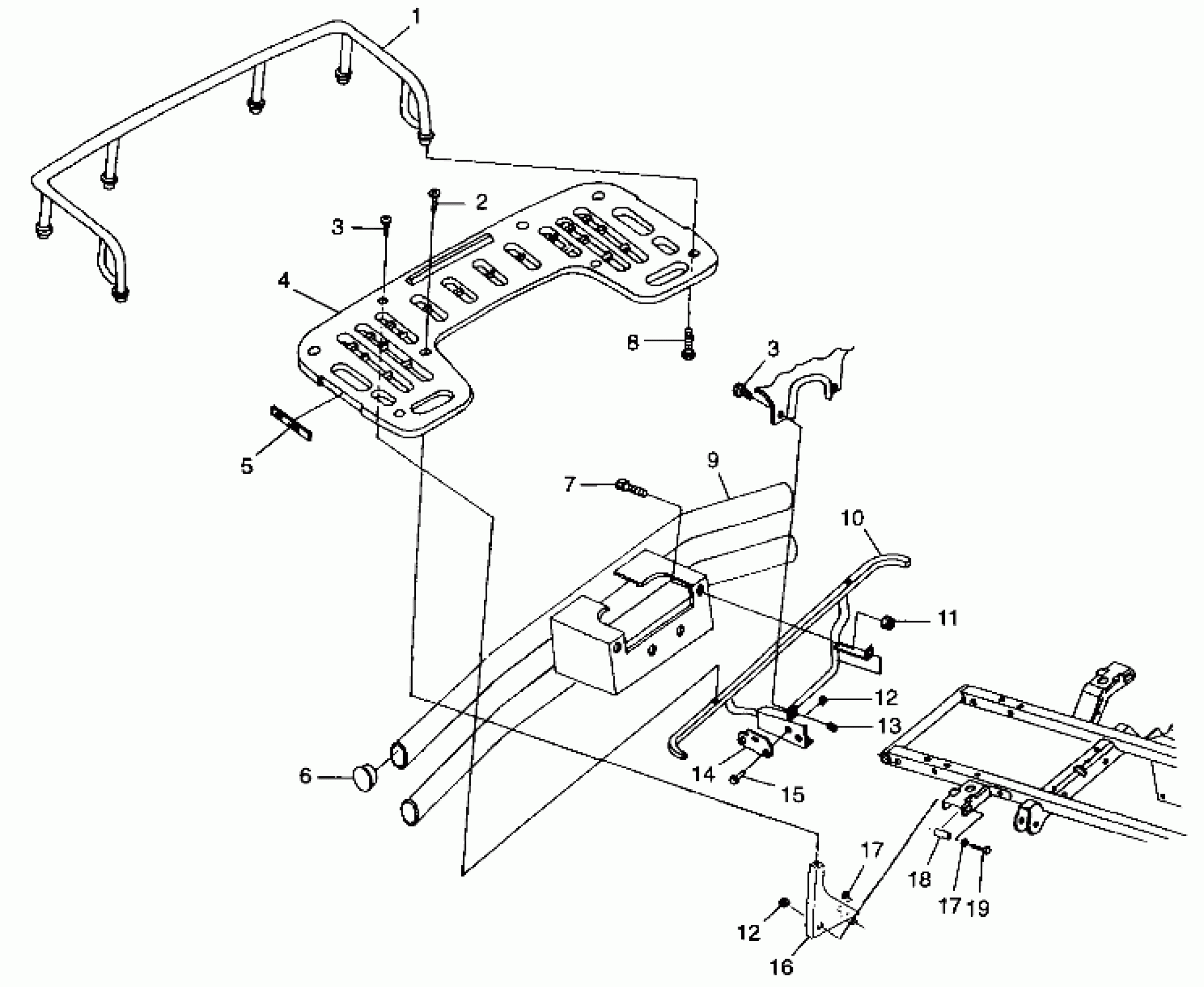

Polaris SPORTSMAN 500 RSE - A99CH50AC REAR RACK MOUNTING - A99CH50AC (4952455245a008) Diagram

#

Description
Price

1

RACK EXT,REAR,GENIV,3.5" (Incl. 8)

2871501

$73.95

2

SCREW(10)

7515193

$1.59

3

SCREW(10) Substituted by 7517685

7515194

$1.59

3

SCREW(10) Substituted by 7517685

7515194

$1.59

4

RACK ASM,REAR Substituted by 2670174-070 (See Footnote) (Incl. Ref. 5 and Warning Decal)

2670174

Unavailable

5

REFLECTOR RED

2670070

$9.84

6

CAP-BUMPER,END

5433305

$5.65

7

BOLT(10)

7515321

Unavailable

8

SCREW(10)

7517208

$1.98

9

BUMPER-REAR,RSV,BLK

5243378-067

$147.62

10

RACK,REAR,SUPPORT,RSE,BLK

1012894-067

Unavailable

11

NUT-5/16-18 NYLOK-Y

7542324

$0.79

12

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

12

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

13

Nut

7670096

$1.59

14

BRKT,SILENCER,FRAME,BLK

5241663-067

$10.51

15

BOLT(10)

7512329

$3.97

16

MNT,LH.FRT,R.RACK,BLK

1040524-067

Unavailable

16

MNT,RH.FRT,R.RACK,BLK.

1040525-067

Unavailable

17

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

17

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

18

Spacer

5333332-067

$6.59

19

SCREW(10)

7515385

$5.56
