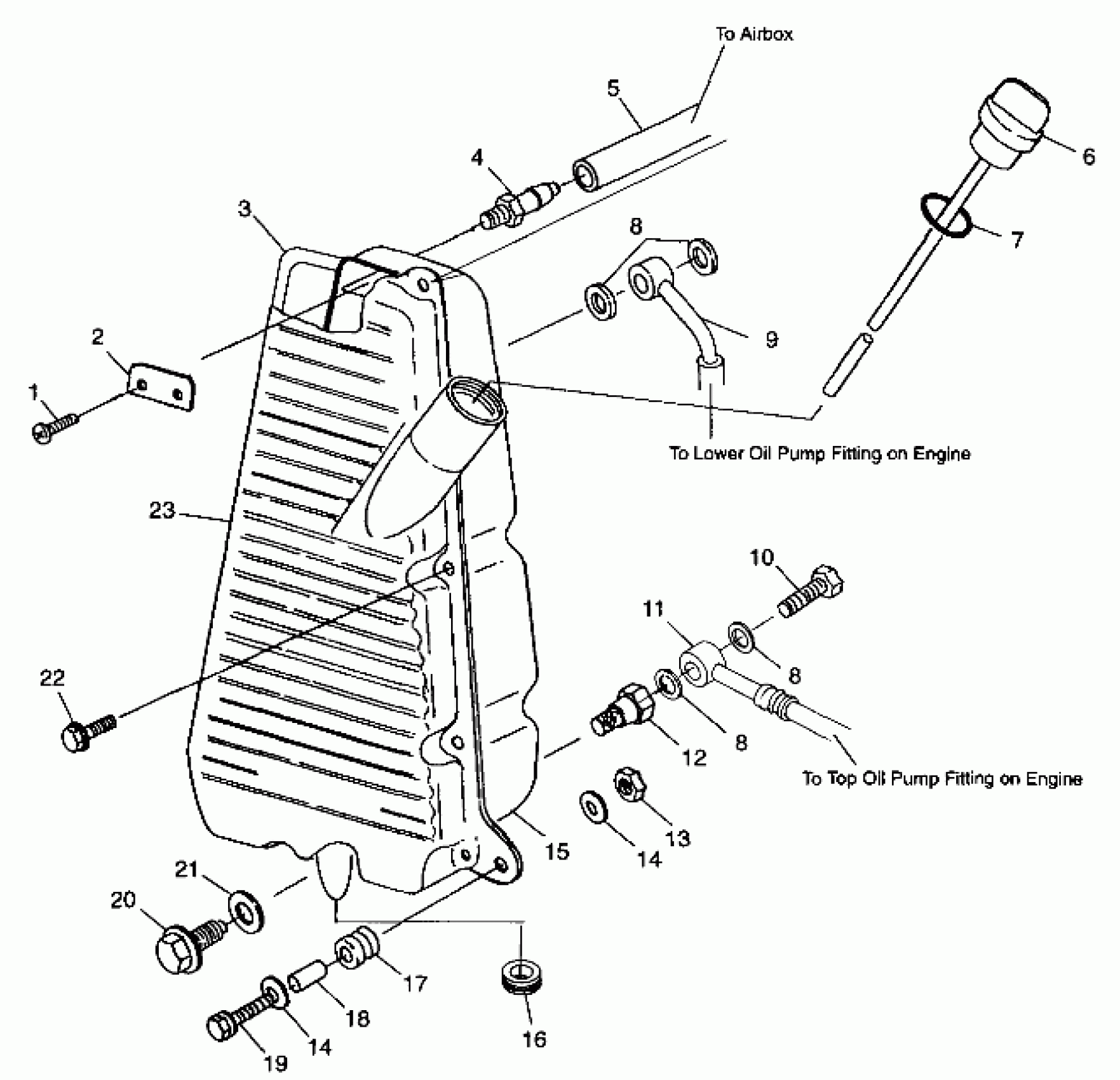

Polaris SPORTSMAN 500 RSE - A99CH50AC OIL TANK - A99CH50AC (4952455245c001) Diagram

#

Description
Price

1

SCREW-SEMS(10)

7511848

$3.99

2

PLATE,VENT,OIL TANK

5211523

$13.99

3

GASKET,OIL RESERVOIR

5830053

$54.99

4

Fitting

7052163

Unavailable

5

LINE,BREATHER,120CM,SPL

5411349

Unavailable

6

DIPSTICK

5432289

Unavailable

7

O RING

5410889

Unavailable

8

WASHER,COPPER,14MM.

7555896

$1.49

8

WASHER,COPPER,14MM.

7555896

$1.49

8

WASHER,COPPER,14MM.

7555896

$1.49

9

TUBE,BANJO,RETURN

7052109

Unavailable

10

BOLT

7517102

Unavailable

11

TUBE,BANJO INTAKE

7052133

Unavailable

12

SCREEN-OIL FILTER,BANJO

2530020

Unavailable

13

NUT-LOCK(10)

7542122

$1.49

14

WASHER(10)

7558301

$1.49

14

WASHER(10)

7558301

$1.49

15

TANK,OIL,LH

5131785

$131.99

16

Grommet

5411042

Unavailable

17

GROMMET,MTG,RESERVOIR (10)

5410828

$3.99

18

BUSHING,MTG.

5333204

$26.39

19

BOLT(10)

7512130

$3.99

20

PLUG,MAG.12 M.

7051524

$27.99

21

WASHER

5850135

$3.19

22

SCREW(10)

7515158

$4.79

23

TANK,RH,OIL

5131255

Unavailable
