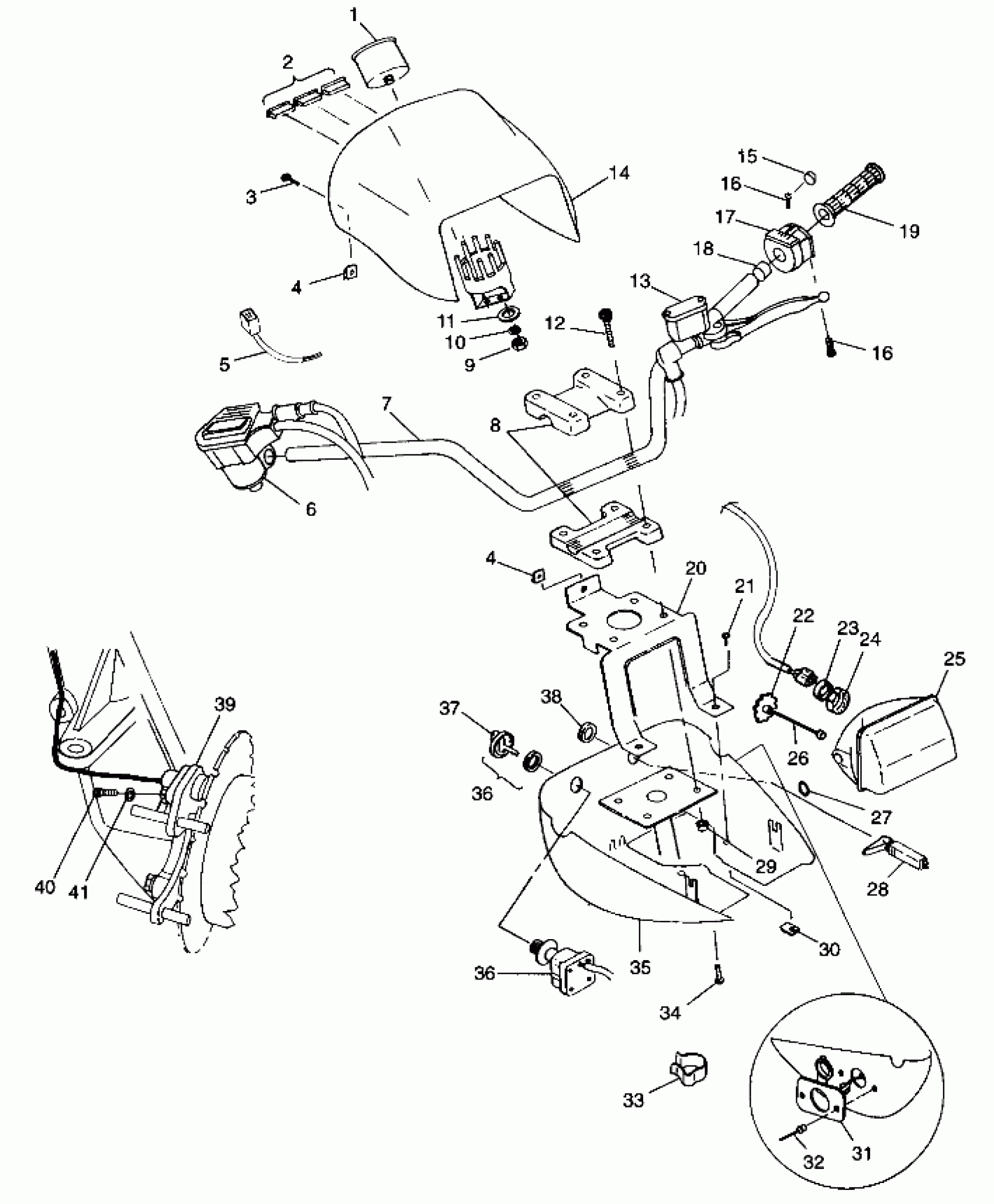

Polaris SPORTSMAN 500 RSE - A99CH50AC HANDLEBAR and HEADLIGHT POD - A99CH50AC (4952455245b013) Diagram

#

Description
Price

1

SPEEDO ASM,3.38",6-PULSE Substituted by 3280363

3280290

Unavailable

2

PLUG,INDIC.HOLE

5430967

$5.65

2

INDIC"HOT TEMPERATURE"

4040053

$31.99

2

INDIC"NEUT./REV."

4040054

$31.99

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

4

NUT

7670086

$3.99

4

NUT

7670086

$3.99

5

HARNESS,CTR.PNL.

2460668

$11.51

6

Asm., Throttle Control (See Footnote) (See Controls - Throttle Asm./Cable Pg. B10 Ref. 5)

-------

Unavailable

7

TUBE-HANDLEBAR,GEN 4,POD,BLK

5242987-067

$114.99

8

KIT,H'BAR BLOCK (Incl. Blocks and 8,12,29)

2200774

Unavailable

8

BLOCK,H'BAR RETAINER,BLK

5630616-067

Unavailable

9

NUT, BRASS(10)

7541933

$4.99

10

WASHER, LOCK,(S.S.)(10)

7555868

Unavailable

11

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

12

SCREW(10)

7515189

Unavailable

13

Asm., Master Cylinder (See Footnote) (See Controls - Master Cylinder/Brake Line Pg. B11 for details)

-------

Unavailable

14

HEADLIGHT POD,UPPER,M.O. CAMO Substituted by 5433289-283A

5433289-283

Unavailable

15

PLUG,HOLE(10)

5432952

$5.59

16

SCREW,SET

7517625

$4.79

16

SCREW,SET

7517625

$4.79

17

SWITCH-HANDLEBAR,HI/LO/OFF,6P Substituted by 4010262

4110243

$196.90

18

SPACER,SWITCH,LH

5432926

$2.63

19

GRIP, HANDLEBAR

5431030

$24.27

20

BRKT,POD MTG,BLK.

5240586-067

Unavailable

21

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

22

KNOB,ADJUSTING

4032079

$23.99

23

BOOT, HEADLIGHT

5411120

$27.99

24

COLLAR,LOCK

4032077

$27.99

25

BULB,QUARTZ.H/L,INDY

2870448

$24.99

25

LENS&REFLECTOR ASM.

4032075

Unavailable

26

ROD,ADJUSTING

4032078

Unavailable

27

O RING

5410163

$1.60

28

KIT-CHOKE CONTROL

2200188

$24.27

28

CABLE,CHOKE,W/ADJUSTER

7080726

$99.99

29

NUT-LOCK(10)

7542122

$1.49

30

NUT,U-TYPE(10)

7670089

$5.59

31

POWERPLUG ASM,12V

2410025

Unavailable

32

RIVET(50)

7621334

$1.49

33

CLIP,CABLE RETAIN,(10)

7080631

$6.29

34

SCREW(10)

7522021

$3.99

35

HEADLIGHT,POD,LOWER,M.O. CAMO Substituted by 5433366-070

5433287-283

$93.08

36

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

36

SWITCH,IGN.W/ CON (Incl. Key) (See Footnote) NOTE: Ignition key may be ordered by using the four digit number on the key.

4110209

Unavailable

36

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

36

SWITCH,IGN.W/ CON (Incl. Key) (See Footnote) NOTE: Ignition key may be ordered by using the four digit number on the key.

4110209

Unavailable

37

COVER, KEY Substituted by 5433534

5431964

Unavailable

38

Nut

7080229

$19.99

39

SENSOR,HALL EFFECT Substituted by 2201625

4040081

Unavailable

40

SCREW(10)

7515181

$2.39

41

WASHER(10)

7558203

$3.19
