Description

Price

-

SELECTOR ASM,GEAR,(500) (Incl. 1-14,22-25)

1341275

Unavailable

1

KNOB ASM,HI/LO/REV. Substituted by 3233195-070

3233195

$49.99

2

SCREW,(10)

7512024

$4.79

3

Strap, Wire

3233131

$9.70

4

CLAMP

3233132

Unavailable

5

BOOT,GEAR SELECTOR

3233368

$74.79

6

SCREW,MAGNIGARD COATED

3233498

Unavailable

7

COVER,GEAR SELECTOR

3233213

Unavailable

8

HANDLE SUBASM,(GS MAGNUM)

3233227

Unavailable

9

CUP,BEARING

3233063

$15.99

10

SPRING,CENTERING

3233083

Unavailable

11

PIN, STOP

3233062

Unavailable

12

SPRING,DETENT

3233069

Unavailable

13

BULLET,DETENT

3233060

$64.99

14

GROMMET

3233495

Unavailable

15

ROD END,RH,6MM.

7061014

$65.99

15

ROD END,RH,6MM.

7061014

$65.99

16

NUT(10)

7546702

$1.49

17

ROD-SHIFT LINKAGE,HI RANGE

5020823

$63.99

18

ROD END,LH,6MM.

7061013

$65.99

18

ROD END,LH,6MM.

7061013

$65.99

19

NUT(10) Substituted by 7546703

7546707

Unavailable

20

ROD,SHIFT LINKAGE,LOW RANGE

5020824

$63.99

21

NUT(10)

7546701

$3.99

22

O-RING

3233076

$6.39

23

SLIDE-LOW

3233638

Unavailable

24

SLIDE-HIGH/REV

3233637

Unavailable

25

BODY,GEAR SELECTOR

3233343

Unavailable

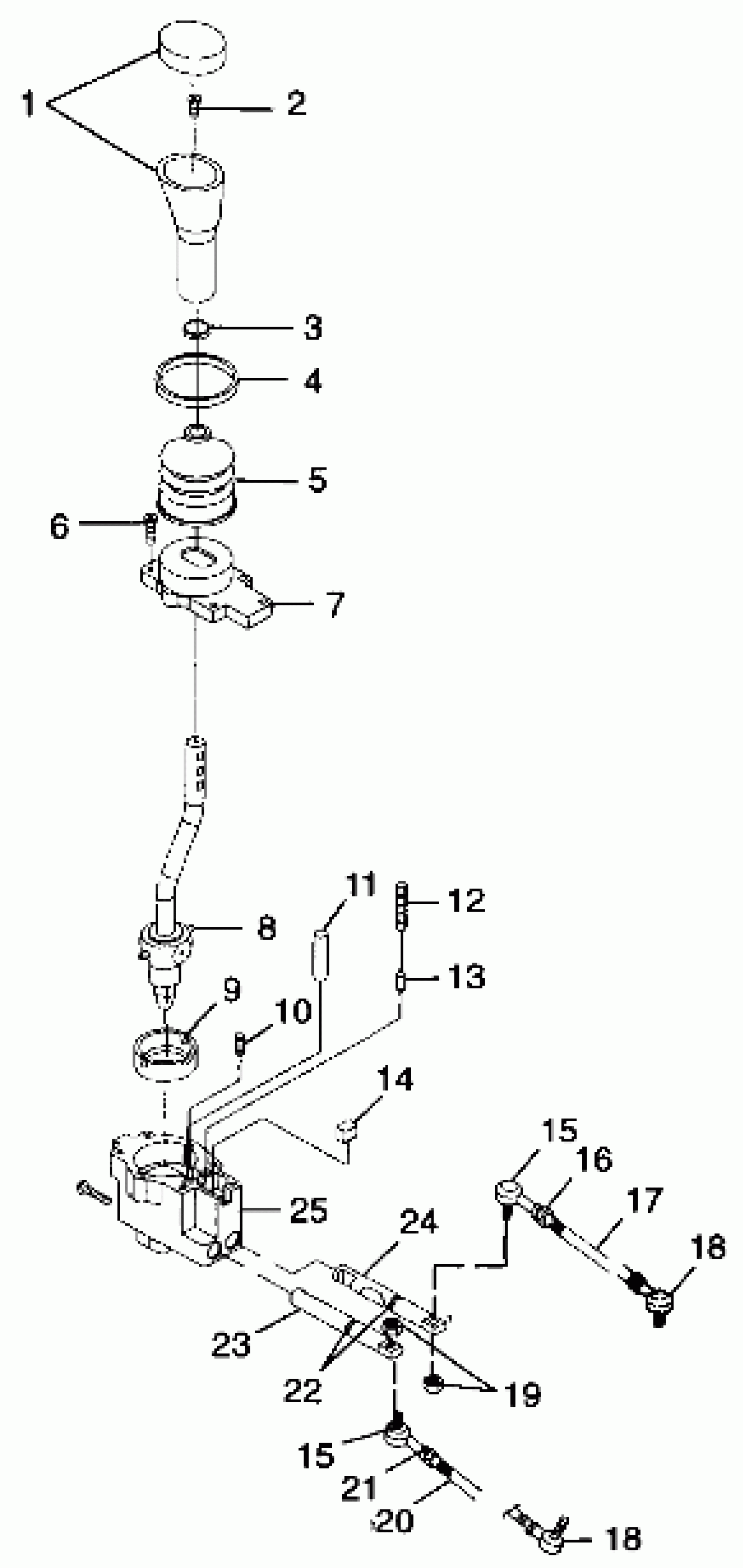

Polaris SPORTSMAN 500 RSE - A99CH50AC GEAR SELECTOR - A99CH50AC (4952455245d001) Diagram

SELECTOR ASM,GEAR,(500) (Incl. 1-14,22-25)

KNOB ASM,HI/LO/REV. Substituted by 3233195-070

SCREW,(10)

Strap, Wire

CLAMP

BOOT,GEAR SELECTOR

SCREW,MAGNIGARD COATED

COVER,GEAR SELECTOR

HANDLE SUBASM,(GS MAGNUM)

CUP,BEARING

SPRING,CENTERING

PIN, STOP

SPRING,DETENT

BULLET,DETENT

GROMMET

ROD END,RH,6MM.

ROD END,RH,6MM.

NUT(10)

ROD-SHIFT LINKAGE,HI RANGE

ROD END,LH,6MM.

ROD END,LH,6MM.

NUT(10) Substituted by 7546703

ROD,SHIFT LINKAGE,LOW RANGE

NUT(10)

O-RING

SLIDE-LOW

SLIDE-HIGH/REV

BODY,GEAR SELECTOR
