Description

Price

-

GEARCASE ASM,FRONT Substituted by 1341323 (See Footnote) (Incl. 1-12,15-25)(Used on Machines Built After 9-14-98)

1341276

Unavailable

1

Screw

3233252

$5.27

1

Screw

3233252

$5.27

2

Seal

3233248

$30.88

2

Seal

3233248

$30.88

3

INPUT COVER-FRONT HOUSING

3233701

$39.37

4

O-Ring

3233700

Unavailable

5

RING-RETAINING

3233699

$7.19

6

BEARING,BALL

3233589

$59.99

7

PINION-INPUT

3233698

$200.79

8

BUSHING,GARLOCK

3233541

$23.99

9

Seal

3233319

$27.99

10

BUSHINHG-GARLOCK

3233697

Unavailable

11

Washer

3233324

$8.99

12

DIPSTICK,(PLUG) Substituted by 3233711

3233325

Unavailable

13

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

14

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

15

TUBE,VENT

3233524

$7.19

16

Gearcase

3233696

Unavailable

17

SUBASM-OUTPUT SHAFT,FRT HSG

3233710

$268.91

18

BEARING

3233020

$47.99

19

SHIM

3233554

Unavailable

20

O-Ring

3233693

Unavailable

21

OUTPUT COVER-FRONT HOUSING

3233692

Unavailable

22

SHIM .450 X .265

3233583

Unavailable

23

BUTTON-THRUST

3233702

Unavailable

24

PLUG, DRAIN Substituted by 3233777

3233253

$34.99

25

PLUG, WASHER

3233254

$7.99

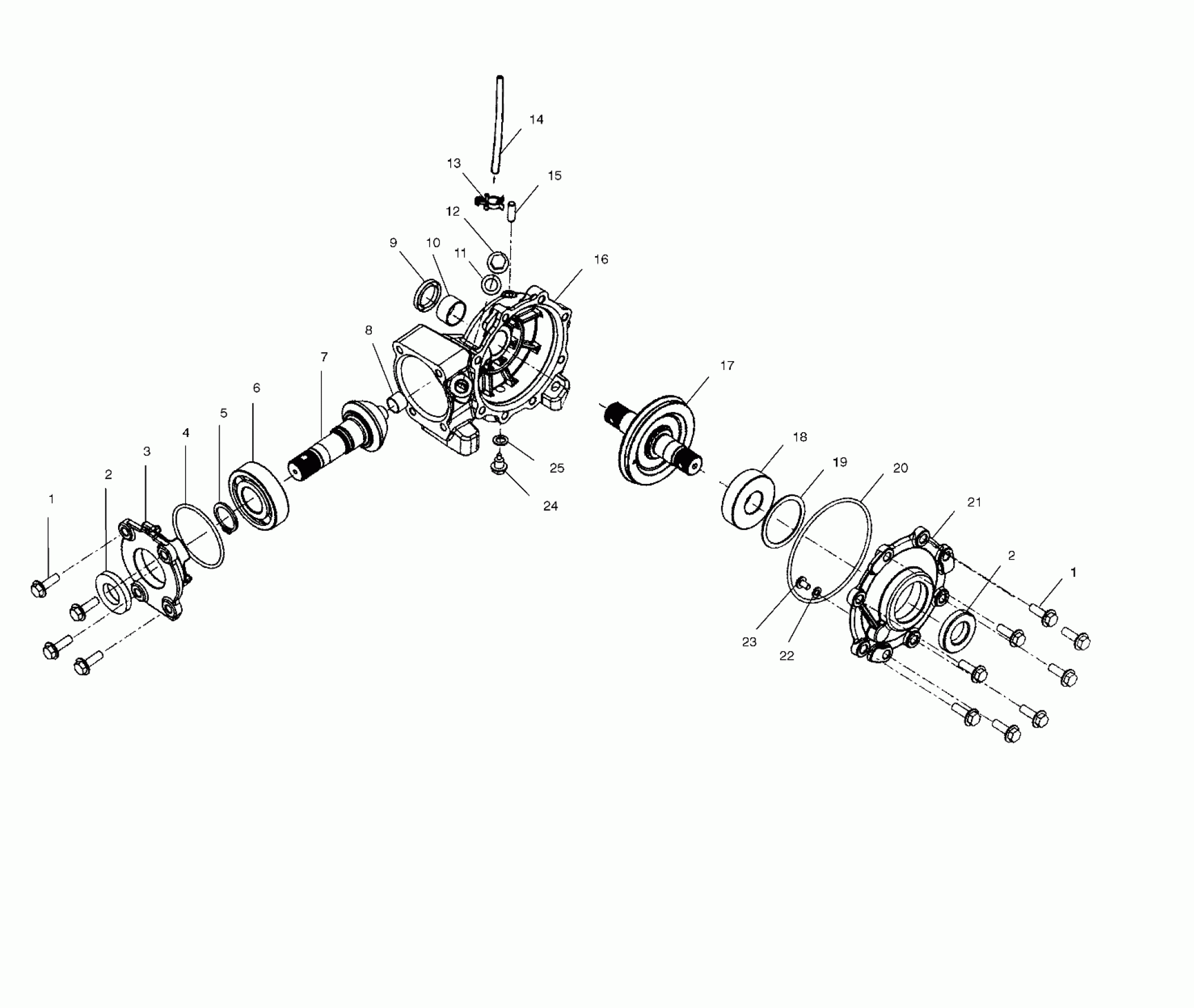

Polaris SPORTSMAN 500 RSE - A99CH50AC FRONT HOUSING - A99CH50AC (4952455245c014) Diagram

GEARCASE ASM,FRONT Substituted by 1341323 (See Footnote) (Incl. 1-12,15-25)(Used on Machines Built After 9-14-98)

Screw

Screw

Seal

Seal

INPUT COVER-FRONT HOUSING

O-Ring

RING-RETAINING

BEARING,BALL

PINION-INPUT

BUSHING,GARLOCK

Seal

BUSHINHG-GARLOCK

Washer

DIPSTICK,(PLUG) Substituted by 3233711

CLAMP-HOSE, (LARGE GREEN)

FUEL LINE,1/8 ID,600 CM.

TUBE,VENT

Gearcase

SUBASM-OUTPUT SHAFT,FRT HSG

BEARING

SHIM

O-Ring

OUTPUT COVER-FRONT HOUSING

SHIM .450 X .265

BUTTON-THRUST

PLUG, DRAIN Substituted by 3233777

PLUG, WASHER
