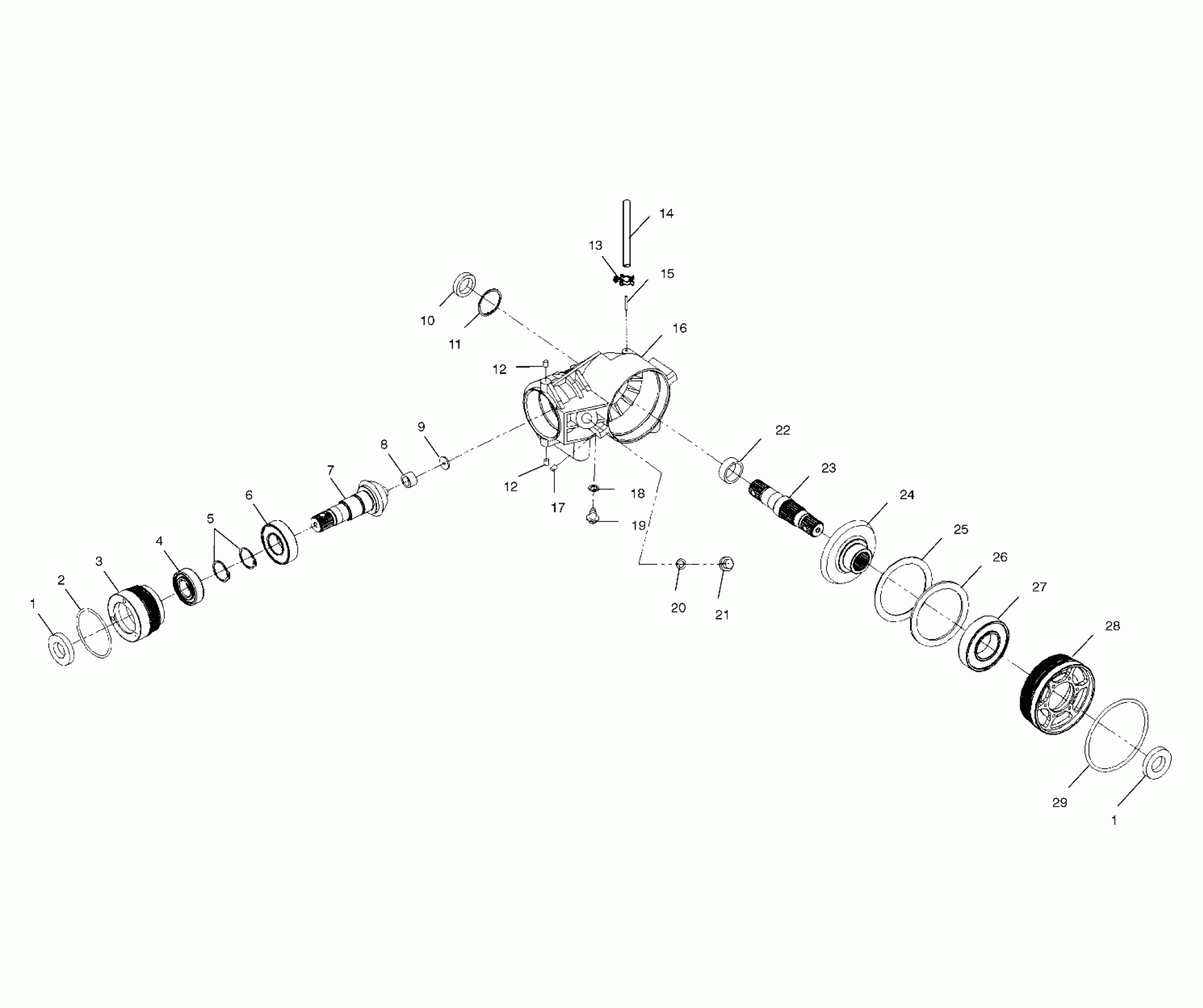

Polaris SPORTSMAN 500 RSE - A99CH50AC FRONT HOUSING - A99CH50AC (4952455245c013) Diagram

#

Description
Price

-

GEARCASE ASM,FRONT Substituted by 1341323 (See Footnote) (Incl. All Less 13,14)(Used on Machines Built Before 9-14-98)

1341257

Unavailable

1

Seal

3233248

$30.88

1

Seal

3233248

$30.88

2

O-RING

3233315

Unavailable

3

COVER,F.HSG INPUT

3233316

Unavailable

4

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

5

RING,RETAINING

3233306

$4.79

6

BEARING

3233020

$47.99

7

SHAFT,INPUT,FRONT HSG.

3233489

Unavailable

8

BEARING,NEEDLE

3233479

Unavailable

9

WASHER

3233480

Unavailable

10

Seal

3233319

$27.99

11

RING,RETAINING

3233320

Unavailable

12

SCREW

3233321

$1.90

12

SCREW

3233321

$1.90

13

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

14

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

15

Vent

3233037

Unavailable

16

HSG,GEARCASE FRT.

3233481

Unavailable

17

RIVET

3233463

Unavailable

18

PLUG, WASHER

3233254

$7.99

19

PLUG, DRAIN Substituted by 3233777

3233253

$34.99

20

Washer

3233324

$8.99

21

DIPSTICK,(PLUG) Substituted by 3233711

3233325

Unavailable

22

BEARING,NEEDLE

3233326

Unavailable

23

SHAFT,O/P,FR.HSG.

3233327

Unavailable

24

GEAR,31T,FRT.HSG.

3233328

$160.82

25

WASHER,THRUST

3233346

Unavailable

26

WASHER,THRUST

3233347

Unavailable

27

BEARING,BALL

3233329

Unavailable

28

COVER,FR.HSG,OUTPUT

3233330

Unavailable

29

O-RING

3233331

Unavailable
