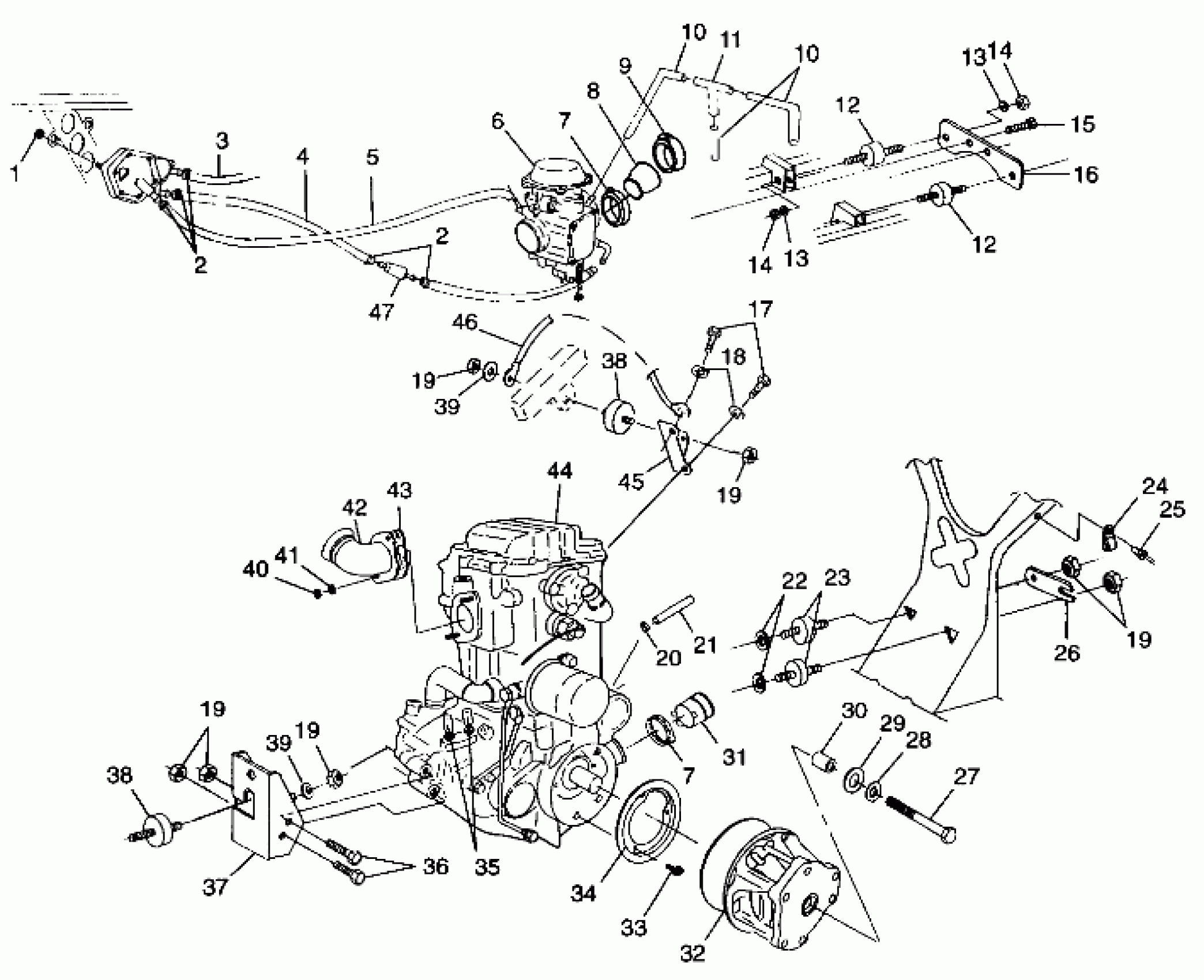

Polaris SPORTSMAN 500 RSE - A99CH50AC ENGINE MOUNTING - A99CH50AC (4952455245a013) Diagram

#

Description
Price

1

NUT-M5X.8,HX NYL-Y

7546601

$1.19

2

HOSE CLAMP, RED

7080003

$1.19

2

HOSE CLAMP, RED

7080003

$1.19

3

HOSE,(.25 IDX1.75"LG.)

5811490

Unavailable

4

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

5

DESC NOT_AVAILABLE

8450083-46

Unavailable

6

Asm., Carburetor (See Footnote) (See Carburetor Pg. D12, Ref. 47)

----

Unavailable

7

CLAMP,BAND,NARROW

7080413

$3.17

7

CLAMP,BAND,NARROW

7080413

$3.17

8

BOOT,CARB

5410995

Unavailable

9

CLAMP, NARROW BAND(10)

7080511

$4.76

10

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

10

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

11

FITTING, TEE

7052075

$9.52

12

Mount, Rubber

3110032

Unavailable

12

Mount, Rubber

3110032

Unavailable

13

WASHER(10)

7552605

$5.69

13

WASHER(10)

7552605

$5.69

14

NUT HEX(10)

7542105

$3.97

14

NUT HEX(10)

7542105

$3.97

15

Screw and Washer (See Crankcase Pg. D6, Ref. 6)

----

Unavailable

16

STRAP,CARB.MT,BLK.

5211626-067

Unavailable

17

BOLT(10)

7512315

$4.76

18

LOCK WASHER(10)

7552901

$1.19

19

NUT LOCK(10)

7542403

Unavailable

19

NUT LOCK(10)

7542403

Unavailable

19

NUT LOCK(10)

7542403

Unavailable

19

NUT LOCK(10)

7542403

Unavailable

19

NUT LOCK(10)

7542403

Unavailable

20

CLAMP,HOSE,SPRING

7080694

$6.64

21

Hose, Breather (See Air Box Pg. B3, Ref. 17)

----

Unavailable

22

WASHER, FLAT(10)

7555815

$3.97

23

MOUNT,RUBBER,FRONT

3110046

Unavailable

24

CLAMP,NYLON,CABLE(10)

7080539

$4.76

25

RIVET(50)

7621462

$1.19

26

STRAP,FRAME SUPPORT,BLK

5224658-067

Unavailable

27

BOLT(10)

7512566

$33.24

28

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.76

29

WASHER-.440X1.25X.190 FL-Y

5210748

$3.97

30

BUSHING-.437 X.770 X.50

5430261

$7.14

31

BOOT,CLUTCH INTAKE

5410421

$11.32

32

Asm., Drive Clutch, Braking (See Footnote) (See Drive Clutch Pg. C4, Ref. 16)

----

Unavailable

33

Screw and Washer (See Crankcase Pg. D6, Ref. 6)

----

Unavailable

34

Bracket, Retainer, Seal (See Footnote) (See Clutch Cover Pg. C6, Ref. 23)

----

Unavailable

35

CLAMP-HOSE,.875-SS

7080474

$8.54

36

BOLT(10)

7515417

$4.76

37

MOUNT,FR.ENGINE,BLK.

5241150-067

Unavailable

38

MOUNT,RUBBER,TOP

3110044

$44.51

38

MOUNT,RUBBER,TOP

3110044

$44.51

39

WASHER(10)

7555801

$3.97

39

WASHER(10)

7555801

$3.97

40

Nut (See Cylinder Pg. D8, Ref. 22)

----

Unavailable

41

Washer, Lock (See Cylinder Pg. D8, Ref. 23)

----

Unavailable

42

MANIFOLD,BLK

1260771-029

$162.99

43

Gasket, Exhaust (See Cylinder Pg. D8, Ref. 20)

----

Unavailable

44

ENG.(S.B.)EH50PLE-01 (EH50PLE09) (See Footnote) NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorizat

3085556

Unavailable

45

MOUNT,ENG,TOP,BLK

5241453-067

Unavailable

46

CABLE,GND-ENGINE

4010132

Unavailable

47

FILTER,SMALL,IN-LINE,(10)

2530009

$6.46
