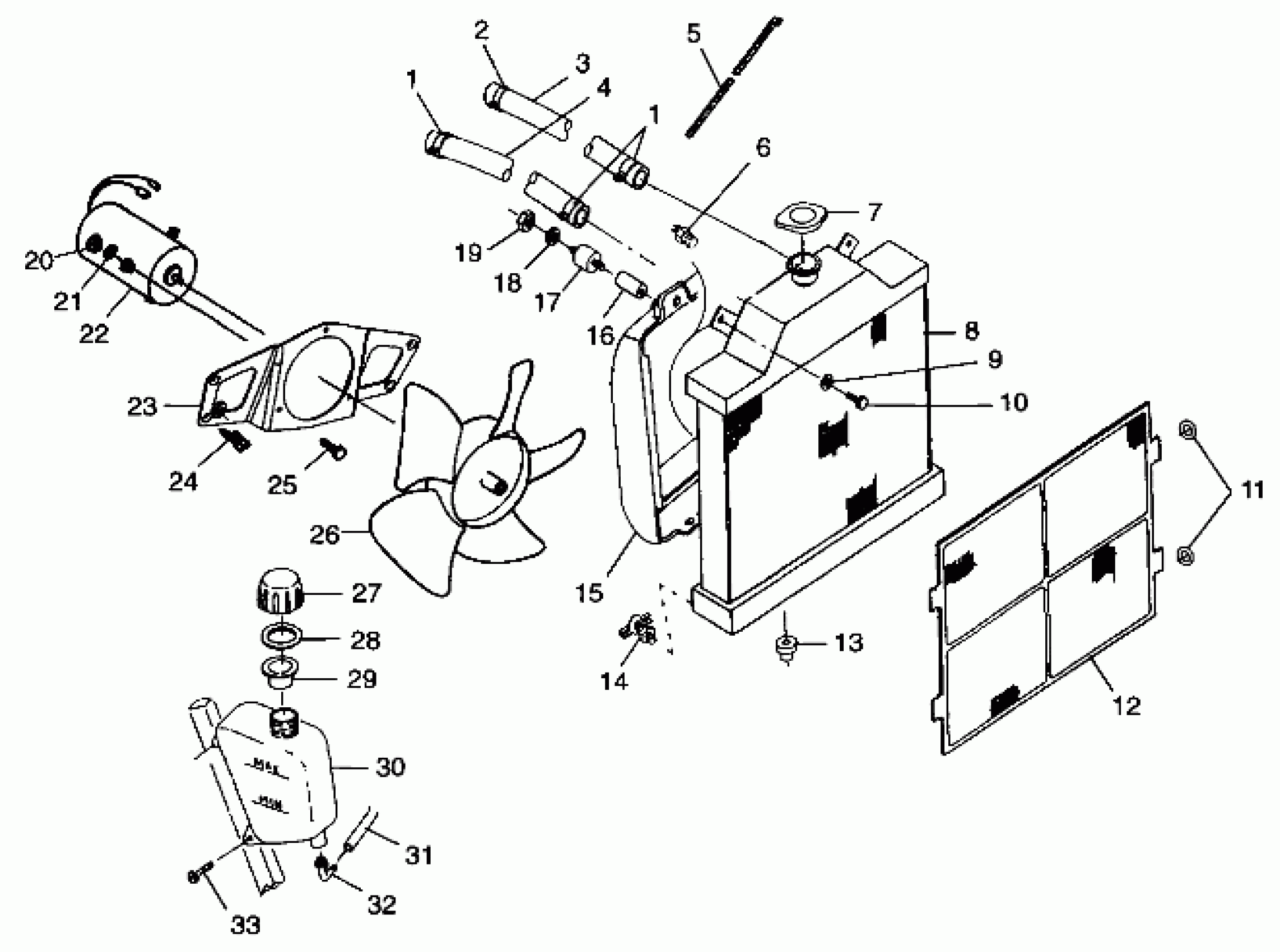

Polaris SPORTSMAN 500 RSE - A99CH50AC COOLING SYSTEM - A99CH50AC (4952455245a012) Diagram

#

Description
Price

1

CLAMP,HOSE,(10)

7080614

$7.19

1

CLAMP,HOSE,(10)

7080614

$7.19

2

CLAMP,HOSE,1.25,WORM DRIVE

7080696

$5.59

3

HOSE,3/4X22"

5411410

Unavailable

4

HOSE-LOWER ENGINE

5411072

Unavailable

5

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

6

SWITCH-THERMAL,4 STROKE,500CC

4010202

$71.99

7

CAP, RADIATOR Substituted by 2511270

2511189

Unavailable

8

RADIATOR,"U"FLOW

1240015

Unavailable

9

WASHER(10)

7552605

$5.27

10

SCREW(10)

7512113

$3.99

11

O RING

5410607

$5.99

12

COVER,RADIATOR,W/MESH

5431760

Unavailable

13

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

14

VALVE,DRAIN COCK

7052181

Unavailable

15

SHROUD,FAN,(ATV)

5432593

Unavailable

16

Spacer, Mount

5020572

$8.79

17

Mount, Rubber

3110032

$7.99

18

WASHER(10)

7558301

$1.49

19

NUT-LOCK(10)

7542122

$1.49

20

Nut

7547004

$4.79

21

WASHER, FLAT(10)

7558201

$5.79

22

MOTOR,FAN,LIQ,D-SHAFT,CONN

4170013

Unavailable

23

BRKT.COOL.FAN,BLK

5241355-067

Unavailable

24

BOLT(10)

7512232

$1.49

25

SCREW

7517475

Unavailable

26

BLADE,FAN,NYLON,8"

5242550

Unavailable

27

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

28

GASKET-OVERFLOW CAP

5810279

$2.41

29

PLUG,CAP Substituted by 5433774

5431895

Unavailable

30

Tank, Surge

5431673

Unavailable

31

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$84.99

32

FITTING,90 DEGREE

7052065

$7.19

33

SCREW(10)

7512084

$1.49
