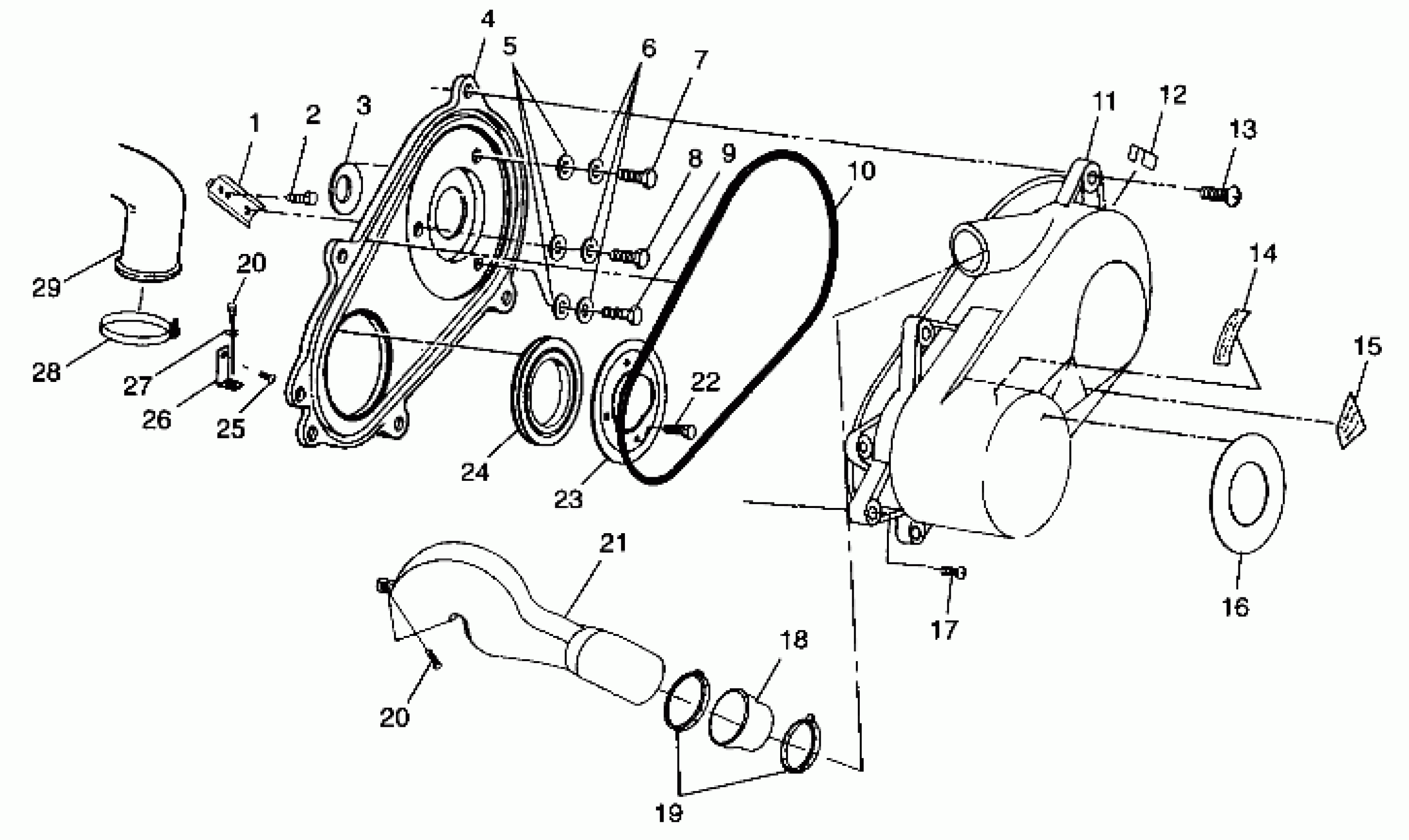

Polaris SPORTSMAN 500 RSE - A99CH50AC CLUTCH COVER - A99CH50AC (4952455245c006) Diagram

#

Description
Price

1

BRKT,R.CLUTCH CVR,BLK.

1040519-067

Unavailable

2

BOLT(10)

7512240

$3.99

3

SEAL,COVER CASE

5410489

$13.59

4

COVER,CLUTCH,INNER,500,SVC,KIT (Incl. 13,17,25)

2201160

$121.41

5

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

6

WASHER(10)

7552605

$5.27

7

BOLT(10)

7512247

$2.39

8

BOLT(10)

7512277

$4.79

9

BOLT(10)

7512278

Unavailable

10

SEAL,CLUTCHCOVER

5521301

$30.88

11

COVER,CLUTCH,OUTER,HV Substituted by 5433540

5432849

$169.87

11

COVER,CLUTCH,FRONT Substituted by 5433542

5431961

$173.74

12

CLIP,CLUTCH COVER(10)

7670051

$2.99

13

SCREW(10)

7512093

$1.49

14

DECAL,CLUTCH COVER Substituted by 7078689

7074946

Unavailable

15

DECAL,ENG/CLUTCH MOD. Substituted by 7078689

7077377

Unavailable

16

DECAL"AUTO./EBS",CLUTCH

7077666

Unavailable

17

SCREW(10)

7512094

$1.59

18

BOOT,DUCT,HI-FLOW

5411489

Unavailable

19

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

20

BOLT(10)

7512232

$1.49

20

BOLT(10)

7512232

$1.49

21

DUCT,CLUTCH OUTLET,16.6 Substituted by 5433980

5432947

Unavailable

22

Screw and Washer (See Crankcase Pg. D6, Ref. 6)

-------

Unavailable

23

BRKT,RETAINER SEAL,BLK. Substituted by 5242046-067

5240409-067

Unavailable

24

Seal, Cover Case

5410575

Unavailable

25

SCREW(10)

7512095

$4.79

26

BRKT-CLUTCH COVER,BLK

5241156-067

Unavailable

27

WASHER(10)

7555935

$2.39

28

CLAMP, NARROW BAND(10)

7080511

$4.79

29

Duct, Inlet, Air (See Air Box Pg. B3, Ref. 7)

-------

Unavailable
