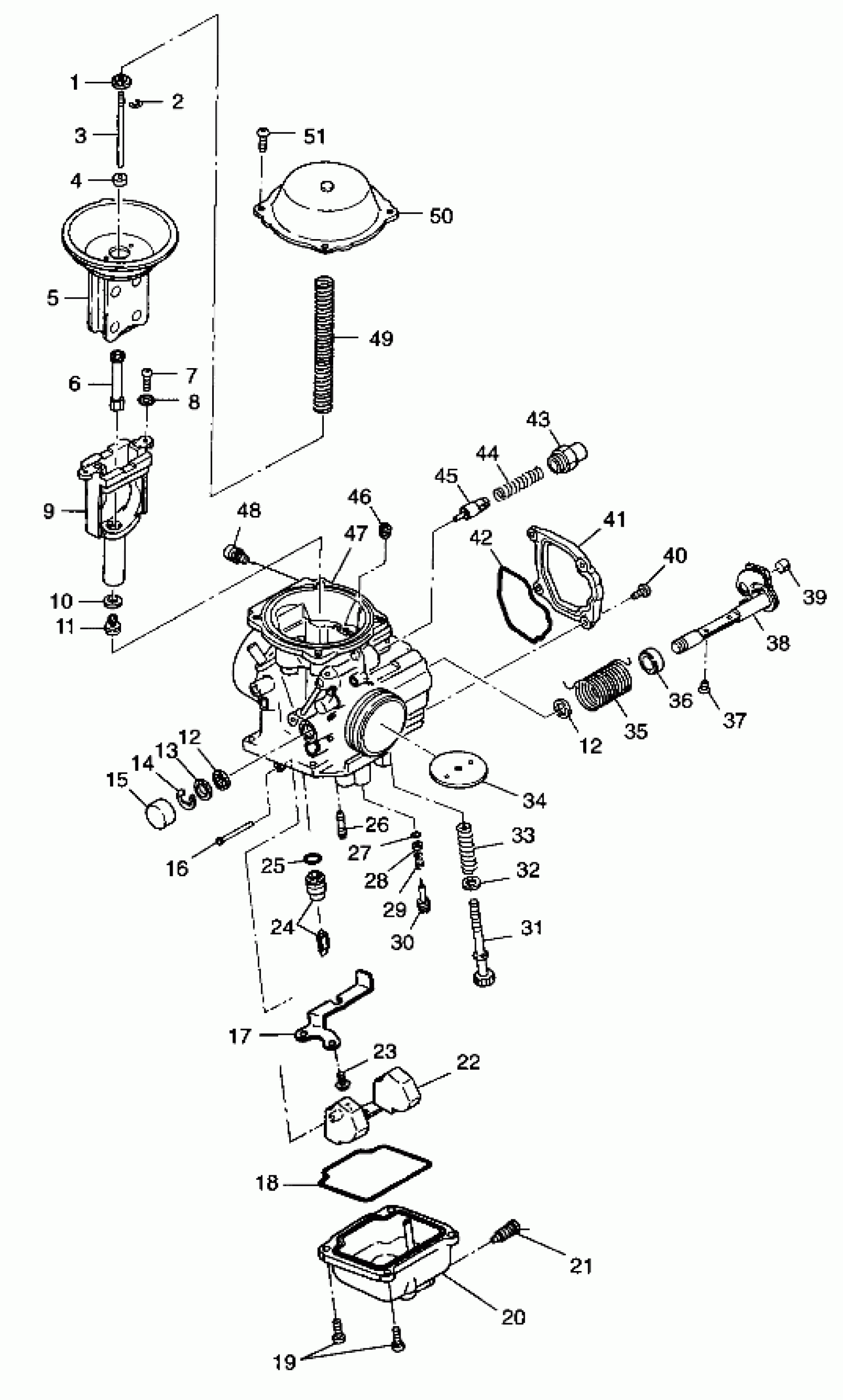

Polaris SPORTSMAN 500 RSE - A99CH50AC CARBURETOR - A99CH50AC (4952455245d011) Diagram

#

Description
Price

1

RING

3130507

$5.59

2

E-RING,(10)

3130508

$6.46

3

NEEDLE,JET Substituted by 3131224 (J8-4HB41)

3130963

$34.74

4

RING

3130752

$5.59

5

DIAPHRAGM ASM.

3130732

$123.99

6

NEEDLE,JET (Q-0)

3130960

$40.46

7

SCREW

3130541

$11.19

8

WASHER,SPRING

3130540

$4.79

9

JETBLOCK ASM.

3130504

$59.99

10

WASHER (10)

3130014

$1.59

11

MAIN JET,#152.5 (#152.5)

3130570

$7.99

12

SEAL

3130515

$11.99

12

SEAL

3130515

$11.99

13

PACKING

-------

Unavailable

14

E-RING

3130518

$1.59

15

CAP

3130519

$10.39

16

PIN, FLOAT

3130361

$8.89

17

PLATE

3130594

$27.99

18

O-RING

3130532

$31.99

19

SCREW

3130520

$1.59

20

FLOATBODY ASM.

3130590

$103.99

21

SCREW

3130521

$10.39

22

FLOAT ASM.

3130529

$79.99

23

SCREW

3130591

$3.99

24

VALVE,NEEDLE,(1.5) Substituted by 3130531 (1.5)

3130668

Unavailable

25

O-RING

3130533

$5.59

26

JET,PILOT,#40 (#40)

3130624

$23.99

27

O-Ring

3130522

$5.65

28

Washer

3130523

$2.39

29

Spring

3130525

$4.79

30

Adjuster

3130524

$23.99

31

SCREW, ADJ.

3130546

$13.59

32

Ring

3130545

$12.13

33

Spring

3130544

$9.59

34

VALVE,THROTTLE (100)

3130502

$47.99

35

SPRING

3130589

$23.99

36

Ring

3130514

$7.19

37

SCREW

3130501

$3.99

38

SHAFT ASM,THROTTLE

3130513

$79.99

39

GUIDE,CABLE

3130543

$27.99

40

SCREW

3130535

$7.19

41

COVER

3130511

$43.99

42

O-Ring

3130512

$39.99

43

HOLDER,GUIDE

3130199

$28.32

44

SPRING

3130538

$4.79

45

PLUNGER ASM. Substituted by 3130539

3130593

$34.74

46

JET,AIR,#160 (#160)

3130625

$13.59

47

DESC NOT_AVAILABLE (Incl. 1-38,43-51)

3130959

Unavailable

48

SCREW & WASHER(10)

3084205

$3.99

49

SPRING

3130505

$23.99

50

Cover

3130503

$63.99

51

SCREW-MIKUNI C2=0408

3130592

Unavailable
