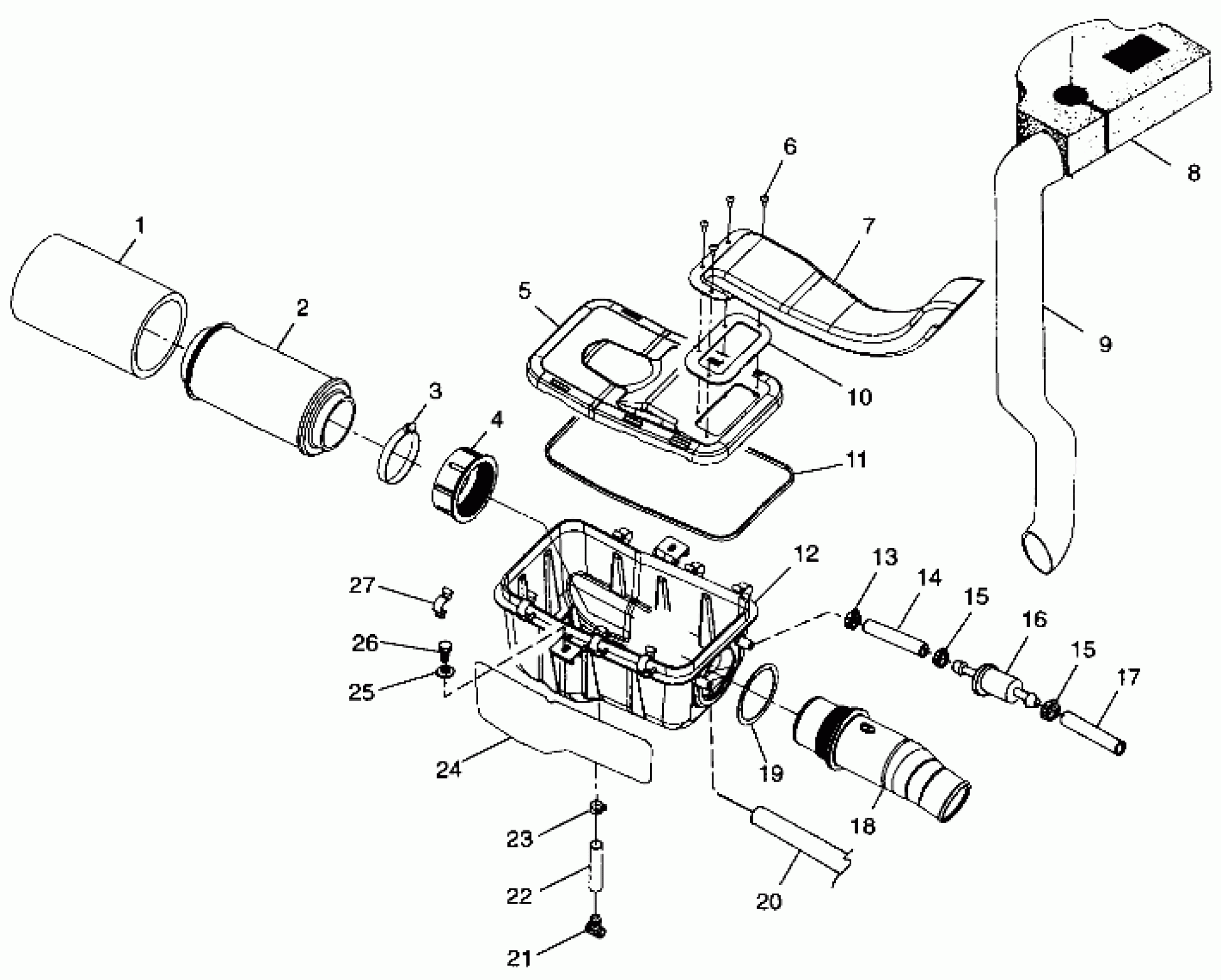

Polaris SPORTSMAN 500 RSE - A99CH50AC AIR BOX - A99CH50AC (4952455245b003) Diagram

#

Description
Price

1

FOAM, FILTER

5811137

$12.21

2

FILTER,AIR INTAKE

7080595

$27.78

3

CLAMP,BAND,NARROW

7080413

$3.17

4

COLLAR,CARB INLET

5432601

$12.94

5

COVER,AIRBOX

5432868

$56.65

6

SCREW,SEMS(10)

7517541

$4.76

7

DUCT,AIR INLET

5433293

$69.99

8

SEAL,FOAM

5811626

$32.37

9

DUCT-AIR INLET, CLUTCH

5432086

Unavailable

10

GASKET,INTAKE

5411422

$6.59

11

SEAL,AIRBOX COVER

5811482

$28.32

12

BOX,AIR INT,4-STROKE

5432774

$125.46

13

CLAMP,HOSE

7080699

$1.59

14

LINE,BREATHER,3/8 ID.

8450073-600

Unavailable

15

CLAMP,HOSE(10)

7080544

Unavailable

15

CLAMP,HOSE(10)

7080544

Unavailable

16

FILTER,BREATHER,IN LINE

2530029

$6.35

17

HOSE,BREATHER(50.5 CM.)

5411477

Unavailable

18

DUCT,CARB.INLET

5432858

$97.13

19

GASKET,CARB.IN.DUCT

5830128

Unavailable

20

BREATHER-LINE-112 CM,SLIT

5411668

Unavailable

21

Plug, Trap

5432377

Unavailable

22

FUEL LINE

8450059-150

Unavailable

23

CLAMP,HOSE,(10)

7080650

$3.97

24

FOIL,AIRBOX

5811650

Unavailable

25

WASHER(10)

7558301

$1.19

26

SCREW(10)

7515179

$2.38

27

CLIP-AIR BOX

5242044

$9.52
