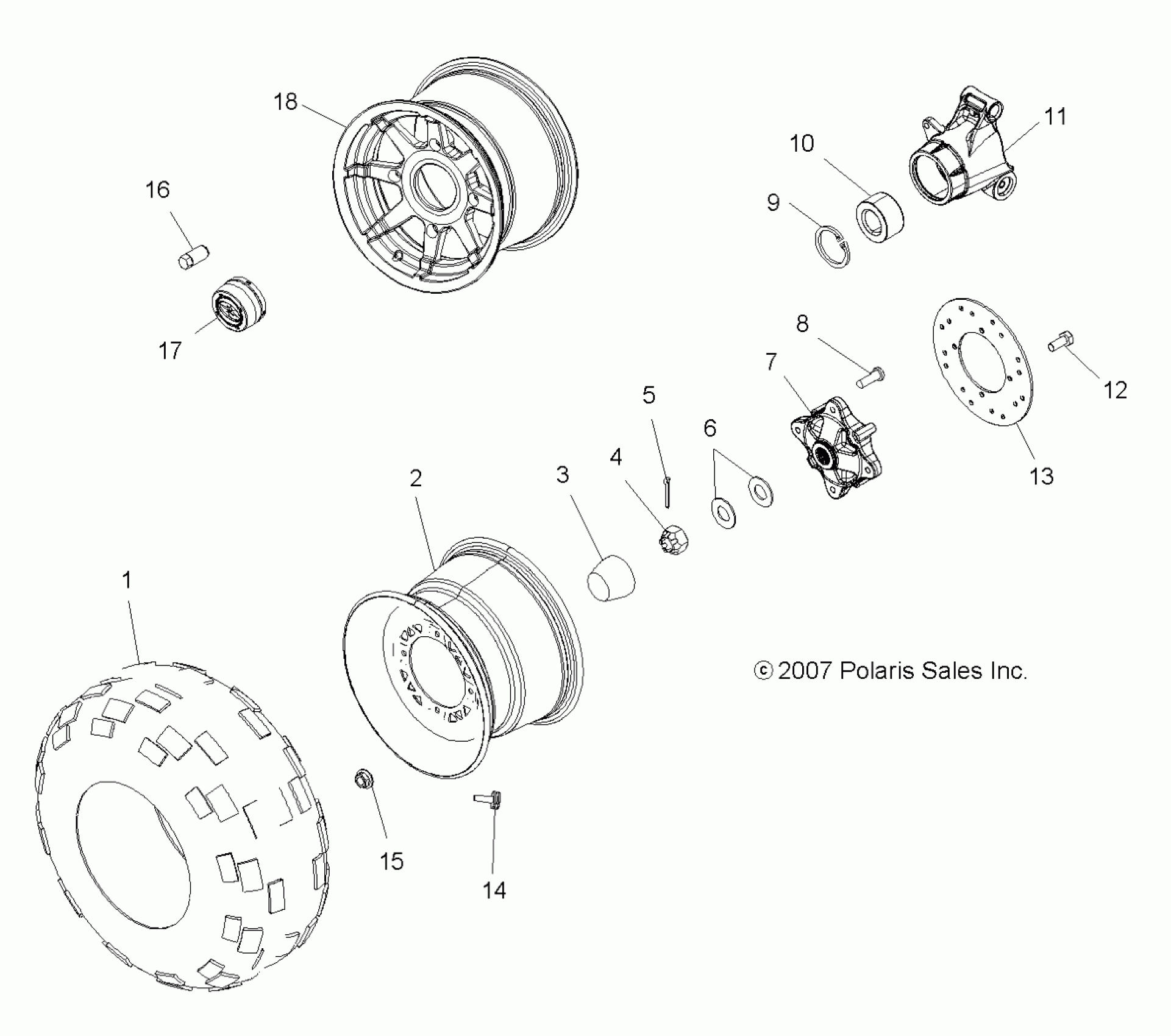

Polaris SPORTSMAN 500 HO EFI - A08MN50AF/AN/AQ/AR/AS/AT/AW/AX WHEELS, REAR - A08MN50AF/AN/AQ/AR/AS/AT/AW/AX (49ATVWHEELREAR08SP500EFI) Diagram

#

Description
Price

1

Tire, Rear, 26x11R12

5412661

$184.99

2

WELD-RIM,REAR,12X8.0,BLK [AX][AQ]

1520457-067

Unavailable

2

Rim, Rear, NBU Camo [AT]

1520797-455

Unavailable

2

Rim, Rear, Silver [AN]

1520457-486

$129.37

3

Cover, Dust, Hub [AN][AQ][AT][AX]

5413427

$24.27

4

Nut, Castle

7543005

Unavailable

5

PIN, COTTER

7661404

$4.79

6

WASHER, CONE

7555796

$7.99

7

HUB, REAR WHEEL

5135113

Unavailable

8

Stud [AF][AR][AS][AW]

7518378

$1.59

8

Stud [AN][AQ][AT][AX]

7515513

$1.49

9

RING, RETAINING

7710440

$10.39

10

Bearing

3585502

Unavailable

11

CARRIER, BEARING, WHEEL

5135563

$71.99

12

Bolt

7518653

$4.99

13

DISC, BRAKE, REAR

5248250

$75.99

14

VALVE-RIM

1525017

$5.59

15

Nut, Flange [AN][AQ][AT][AX]

7547237

$2.39

16

Nut, Wheel [AF][AR][AS][AW]

7547309

$3.59

17

CAP-RIM [AF][AR][AS][AW]

1521128

$20.39

18

Rim, Rear, Cast [AF][AS][AW]

1521105

Unavailable

18

Rim, Rear, Cast, Black [AR]

1521223

$123.99
