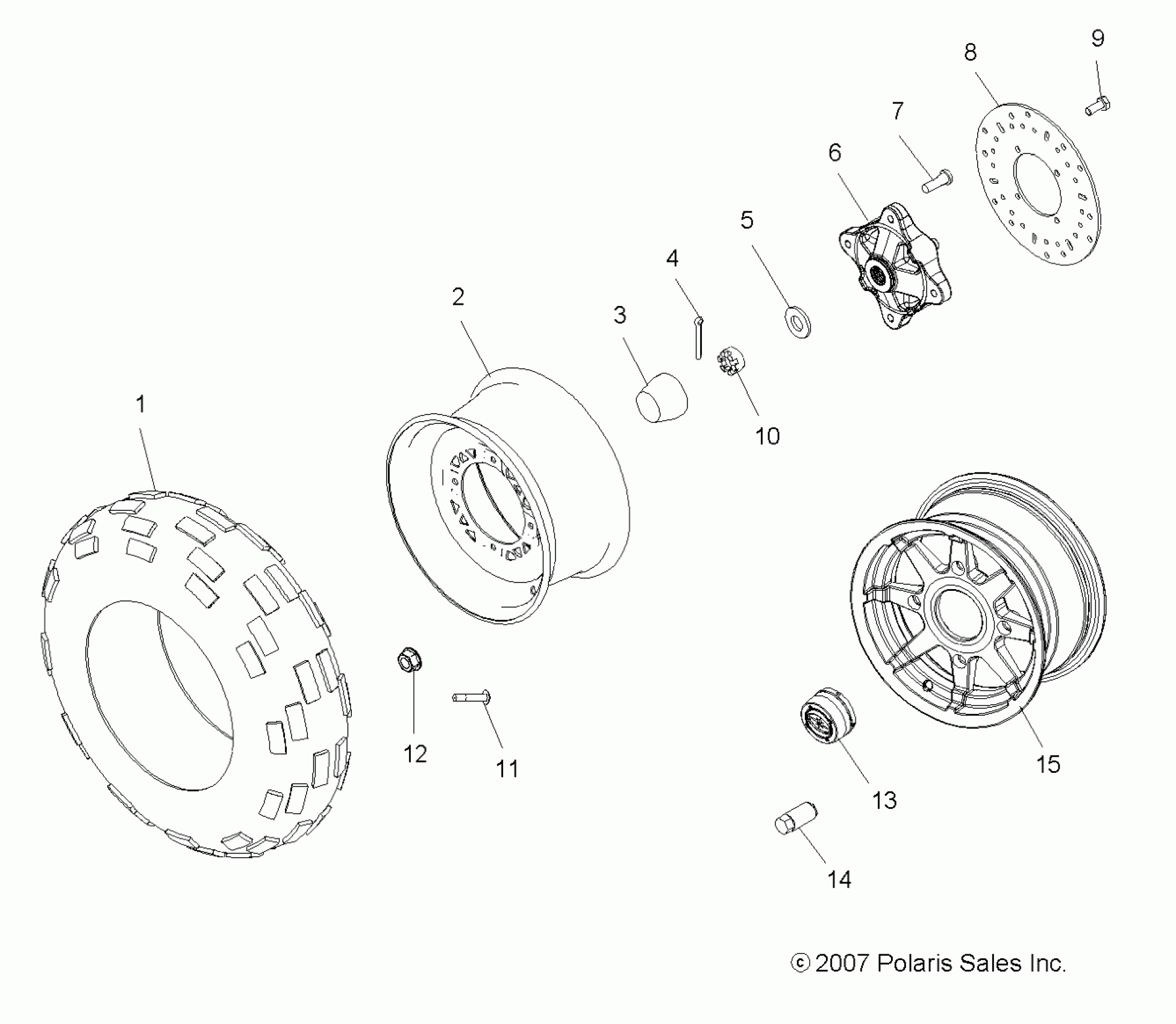

Polaris SPORTSMAN 500 HO EFI - A08MN50AF/AN/AQ/AR/AS/AT/AW/AX WHEELS, FRONT - A08MN50AF/AN/AQ/AR/AS/AT/AW/AX (49ATVWHEELFRT08SP500EFI) Diagram

Description

Price

Tire, Front, 26x8R12

5412660

$142.85

Rim, Front, Black [AX][AQ]

1520269-067

Unavailable

Rim, Front, Silver [AN]

1520269-486

$90.87

Rim, Front, NBU Camo [AT]

1520263-455

Unavailable

Cover, Dust, Hub [AN][AQ][AT][AX]

5413427

$24.27

PIN, COTTER

7661402

$1.86

WASHER

7556004

$7.19

HUB, WHEEL

5134310

Unavailable

Stud [AF][AR][AS][AW]

7518378

$1.59

Stud [AN][AQ][AT][AX]

7515513

$1.49

DISC-BRAKE,8.95 OD,.158

5244314

$75.99

BOLT

7512325

$2.39

NUT, SLOTTED

7542810

$3.19

VALVE-RIM

1525017

$5.59

Nut, Flange [AN][AQ][AT][AX]

7547237

$2.39

CAP-RIM [AF][AR][AS][AW]

1521128

$20.39

Nut, Wheel [AF][AR][AS][AW]

7547309

$3.59

Rim, Front, Cast [AF][AS][AW]

1521106

Unavailable

Rim, Front, Cast, Black [AR]

1521224

$142.84
