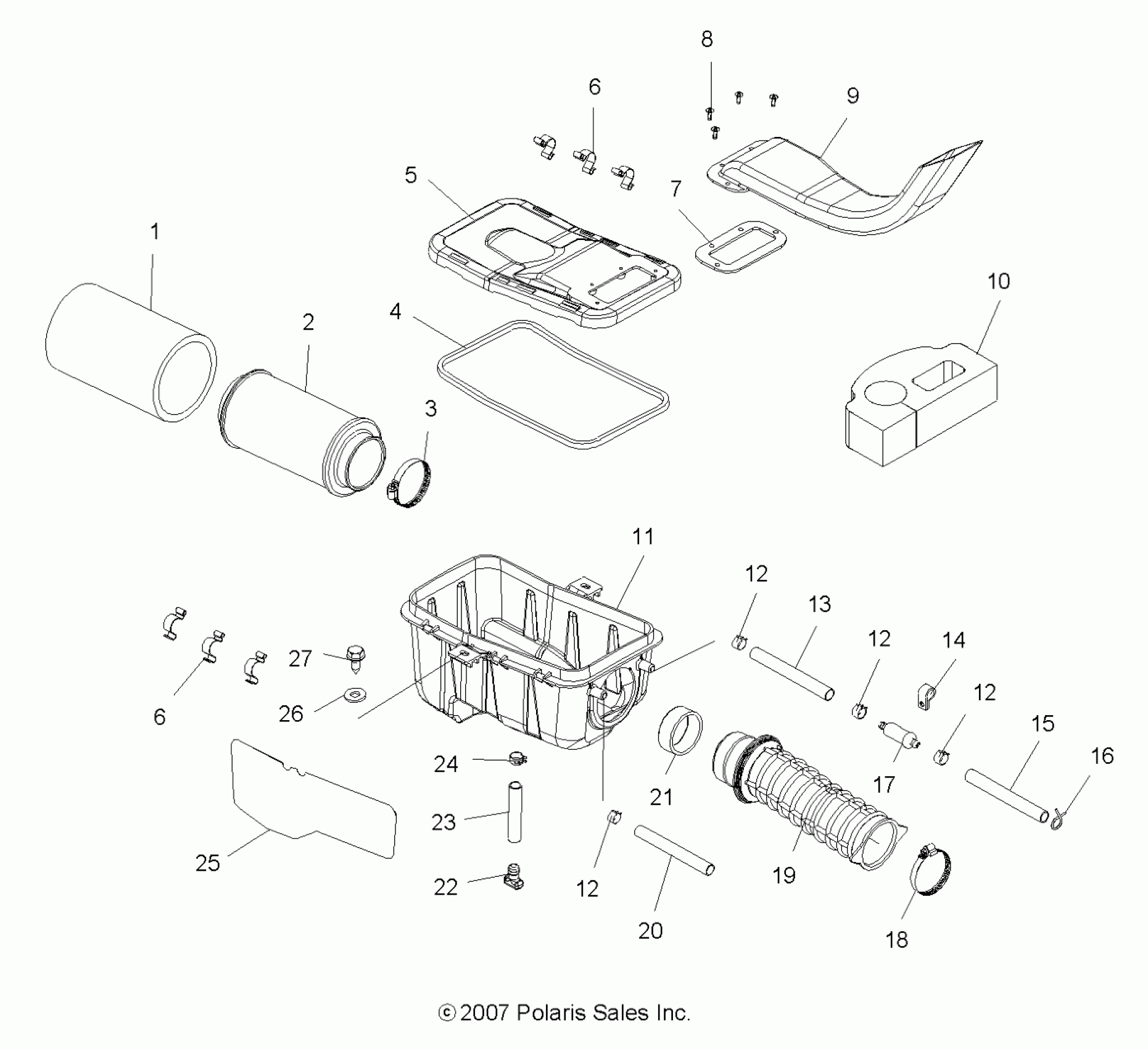

Polaris SPORTSMAN 500 HO EFI - A08MN50AF/AN/AQ/AR/AS/AT/AW/AX ENGINE, AIR INTAKE SYSTEM - A08MN50AF/AN/AQ/AR/AS/AT/AW/AX (49ATVAIRBOX08SP500EFI) Diagram

#

Description
Price

1

Filter, Precleaner Sleeve

5811633

$11.99

2

Filter, Air

7080595

Unavailable

3

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

4

Seal, Cover

5812829

$27.02

5

Cover, Air Box

5432868

$51.99

6

CLIP-AIR BOX

5242044

$9.59

6

CLIP-AIR BOX

5242044

$9.59

7

Gasket, Intake

5411422

$6.63

8

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

9

Duct, Air Inlet

5436937

$69.99

10

Seal, Foam

5811626

$31.99

11

Box, Air

5436454

$117.37

12

Clamp, Hose

7080699

$1.59

12

Clamp, Hose

7080699

$1.59

12

Clamp, Hose

7080699

$1.59

12

Clamp, Hose

7080699

$1.59

13

Line, Breather

8450073-600

Unavailable

14

P-Clamp

7080913

$5.59

15

Hose, Breather

5413104

Unavailable

16

Clamp, Hose

7080694

$6.53

17

Filter, Breather

2530029

$6.39

18

Clamp, Narrow Ban

7080511

$4.79

19

Boot, Throttle Body

5412962

$39.99

20

Line, Breather

5413003

Unavailable

21

Sleeve, Inner

5433847

$13.59

22

Plug, Trap

5435299

$6.39

23

Line, Fuel

8450059-150

Unavailable

24

Clamp, Hose

7080650

$3.99

25

Foil

5813042

$19.99

26

Washer, Flat

7558301

$1.49

27

Screw

7515179

$2.39
