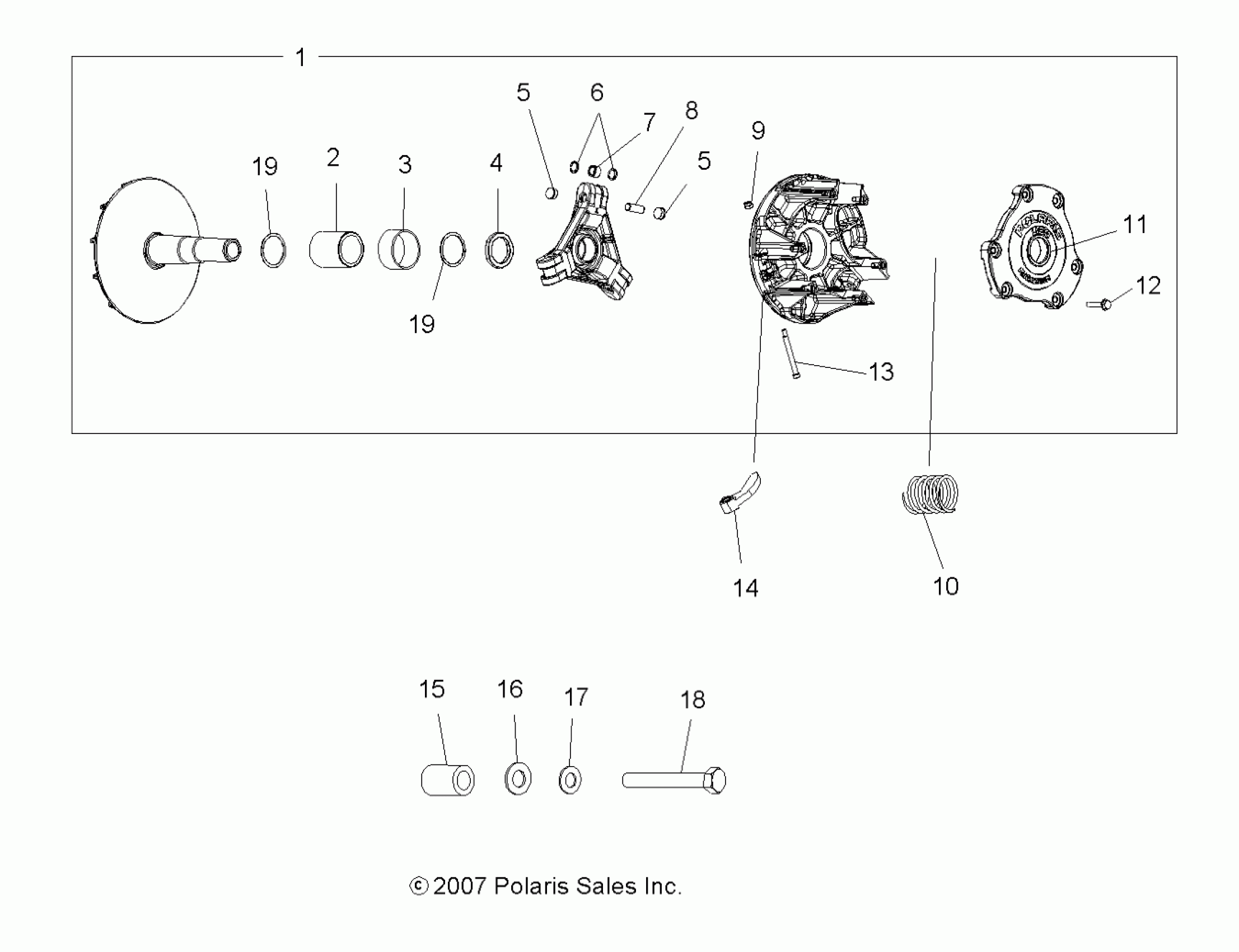

Polaris SPORTSMAN 500 HO EFI - A08MN50AF/AN/AQ/AR/AS/AT/AW/AX DRIVE TRAIN, PRIMARY CLUTCH - A08MN50AF/AN/AQ/AR/AS/AT/AW/AX (49ATVCLUTCH08SP500EFI) Diagram

#

Description
Price

1

Asm., Drive Clutch [Incl. 1-9,11-13.19]

1322673

$515.45

2

ASM., CLUTCH

1520836

$139.99

3

BEARING

3514492

$31.99

4

Spacer

5631903

$39.59

5

BUTTON, CLUTCH

5431936

Unavailable

5

BUTTON, CLUTCH

5431936

Unavailable

6

WASHER,MULTILUBE

5430945

$1.59

7

ASM-ROLLER AND BUSHING

1321622

$32.37

8

PIN-ROLLER

5020422

$2.39

9

NUT, FLEXLOC

7541906

$3.19

10

SPRING, CLUTCH

7041157

$47.99

11

Bearing, Cover

3576510

$9.59

12

SCREW

7518062

$4.79

13

BOLT, SHOULDER

7512266

$3.19

14

WEIGHT, SHIFT, 10-WHF

5632283

$41.79

15

BUSHING-.437 X.770 X.50

5430261

$7.19

16

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

17

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

18

BOLT

7512566

$30.79

19

WASHER-CLUTCH,VESPEL

7556335

$6.39

19

WASHER-CLUTCH,VESPEL

7556335

$6.39
