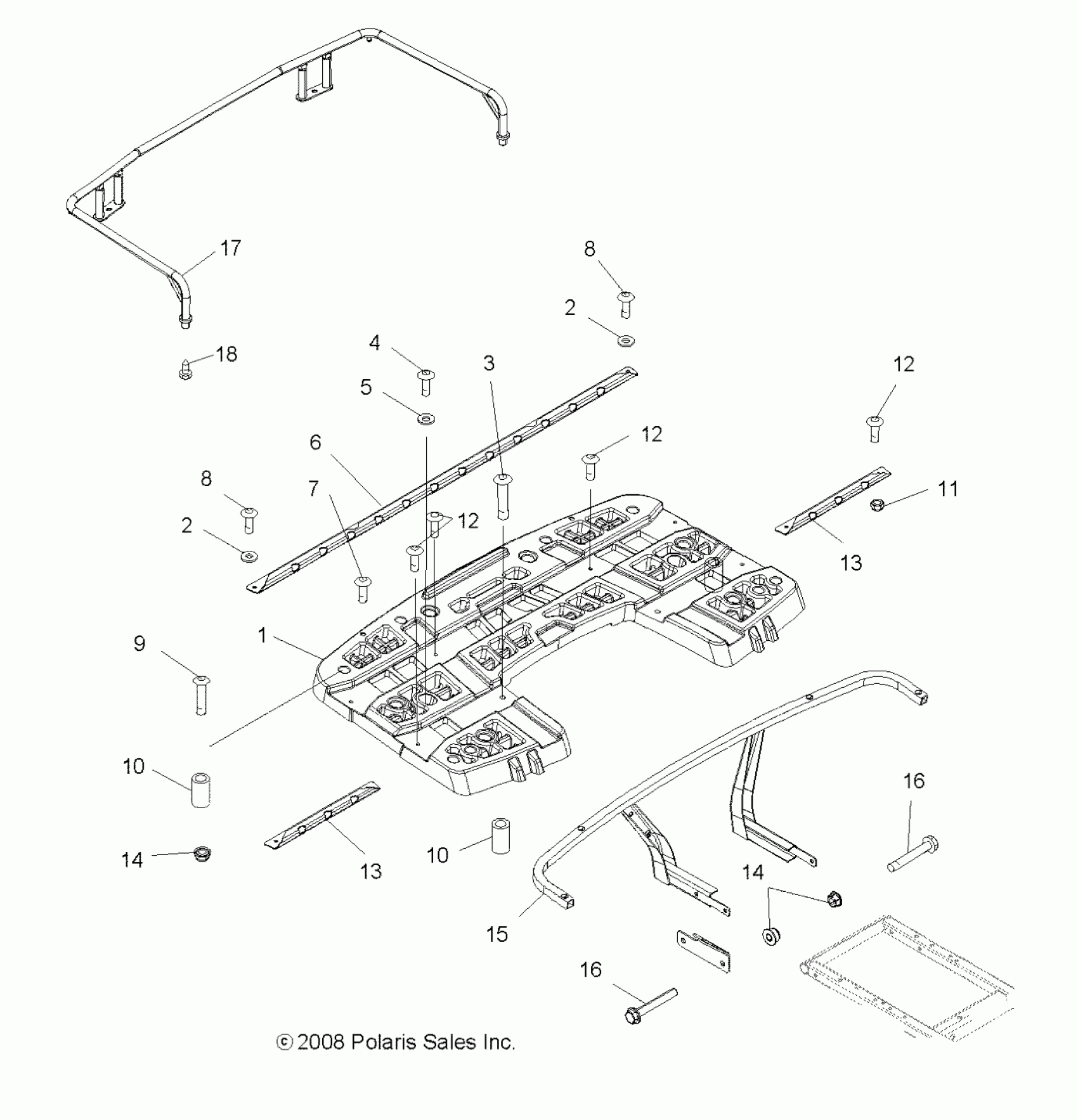

Polaris SPORTSMAN 500 HO EFI - A08MN50AF/AN/AQ/AR/AS/AT/AW/AX BODY, REAR RACK ASM. - A08MN50AF/AN/AQ/AR/AS/AT/AW/AX (49ATVRACKMTG08SP500EFI) Diagram

#

Description
Price

1

Asm., Rack, Rear, Black [Incl. Warning Decal and Reflectors]

2633208-070

$230.16

2

Washer

7555935

$2.38

2

Washer

7555935

$2.38

3

SCREW

7518215

$4.76

4

Screw

7512095

$4.76

5

Washer

7555798

$0.79

6

Channel, Rear Rack, Flat Black Wrinkle

5248469-418

Unavailable

7

SCREW

7518504

$1.59

8

SCREW

7517686

$1.59

8

SCREW

7517686

$1.59

9

SCREW

7518462

$2.38

10

SPACER

5521747

$4.03

10

SPACER

5521747

$4.03

11

Nut, Nylok, Flange

7542153

$1.59

12

SCREW

7517230

$1.19

12

SCREW

7517230

$1.19

12

SCREW

7517230

$1.19

13

Channel, Front, Flat Black Wrinkle

5248471-418

$23.81

13

Channel, Front, Flat Black Wrinkle

5248471-418

$23.81

14

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

14

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

15

SUPPORT, REAR RACK, BLACK

1014668-067

$289.99

16

BOLT, FLANGE

7518341

$4.76

16

BOLT, FLANGE

7518341

$4.76

17

Extender, Rear Rack [AT]

1014768-418

$259.99

18

Screw [AT]

7517208

$1.98
