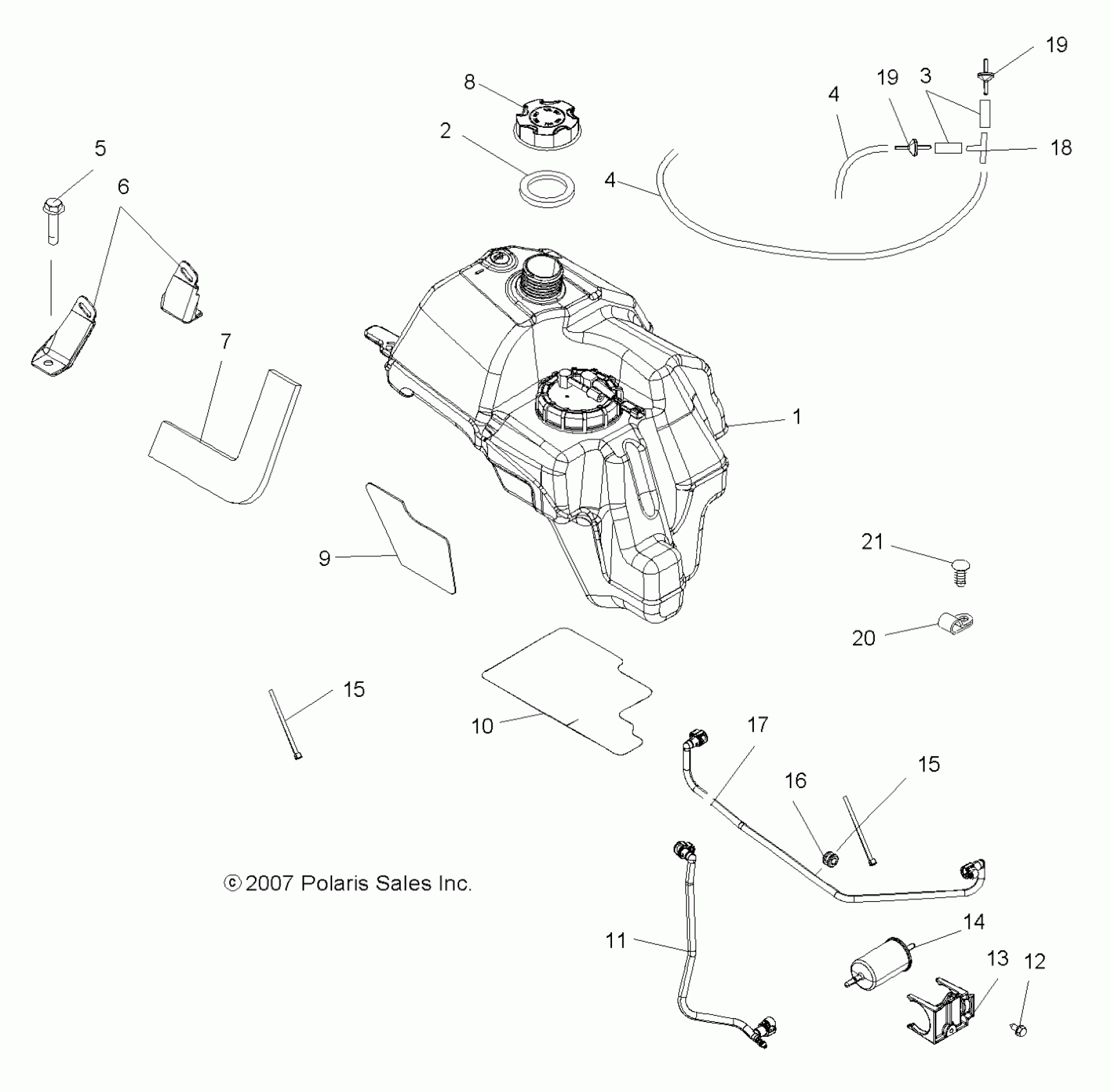

Polaris SPORTSMAN 500 HO EFI - A08MN50AF/AN/AQ/AR/AS/AT/AW/AX BODY, FUEL TANK ASM. (Built 8/21/07 and After) - A08MN50AF/AN/AQ/AR/AS/AT/AW/AX (49ATVFUEL08SP500EFIA) Diagram

#

Description
Price

1

Asm., Tank, Fuel [Incl. Pump, 9,10]

2520865

Unavailable

1

KIT, FUEL PUMP [INCL. FUEL PUMP ASM., GASKET, NUT, CLEANING PAD, INSTRUCTIONS]

2204308

$457.59

2

GASKET

5812123

$5.65

3

LINE, OIL

8450061-600

Unavailable

4

LINE, FUEL

8360009-600

Unavailable

4

LINE, FUEL

8360009-600

Unavailable

5

Screw

7515179

$2.39

6

BRACKET, FUEL COVER MOUNT, LH

5247184

Unavailable

6

BRACKET, FUEL COVER MOUNT, RH

5247185

$43.99

7

SEAL, FOAM

5812265

$27.99

8

Cap, Gas Tank

5433687

$20.22

9

FOIL

5813282

$7.19

10

FOIL

5813218

$8.79

11

Line, Fuel, Tank to Filter

2520791

Unavailable

12

Bolt

7512232

$1.49

13

Mount, Fuel Filter

5436013

$8.79

14

Filter, Fuel

2520464

$39.99

15

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

15

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

16

Grommet

5413317

$2.39

17

Line, Fuel, Filter to Rail

2520807

Unavailable

18

FITTING, T

7052048

$3.99

19

VALVE, CHECK, VENT

7051011

Unavailable

19

VALVE, CHECK, VENT

7051011

Unavailable

20

CLAMP, CABLE

7080499

$5.59

21

Clip

7661953

$1.49
