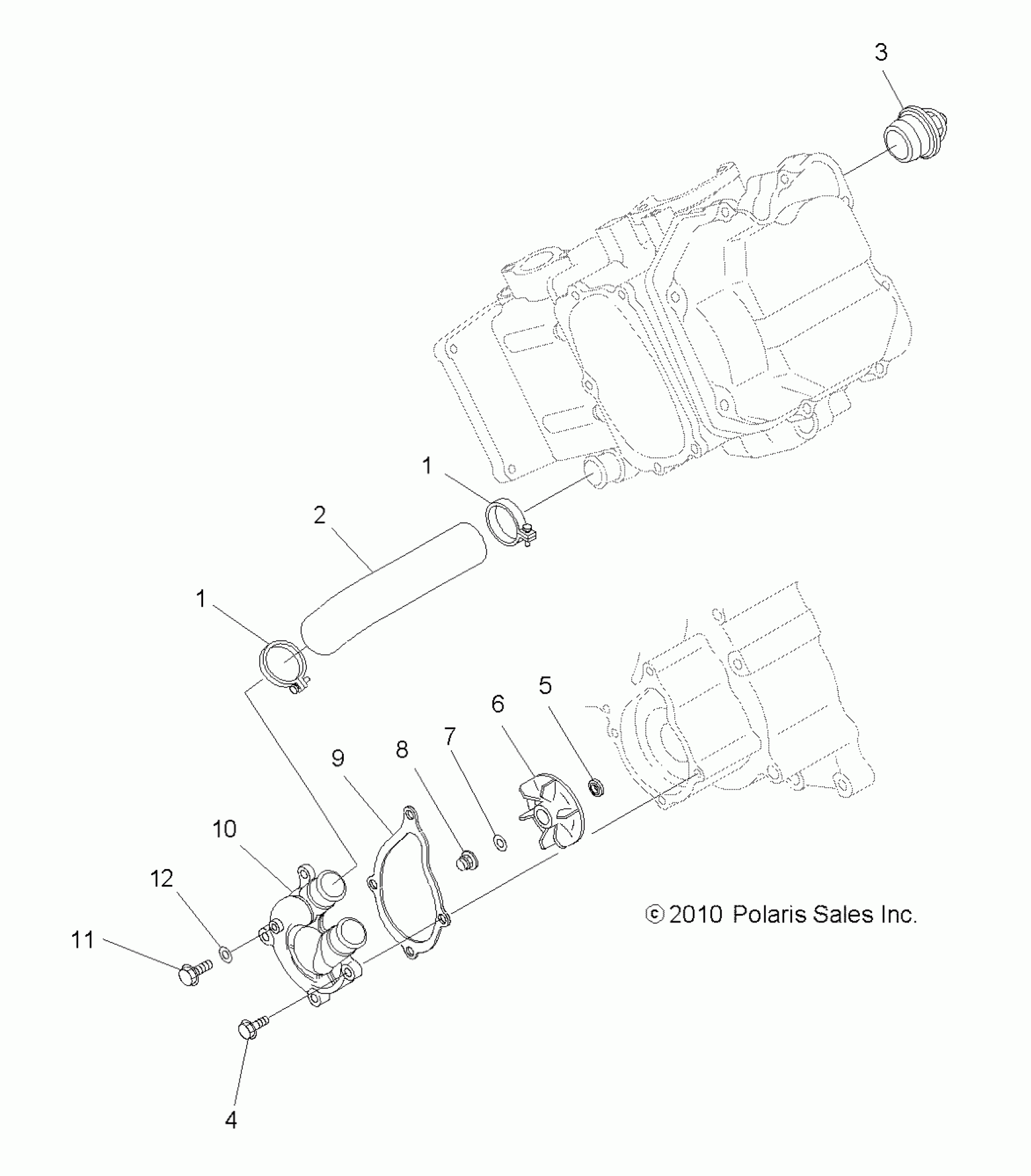

Polaris SPORTSMAN 500 HO - A10MH50AJ/AX/AZ ENGINE, WATER PUMP - A10MH50AJ/AX/AZ (49ATVWATERPUMP10SP500) Diagram

CLAMP, HOSE

3086774

Unavailable

CLAMP, HOSE

3086774

Unavailable

Hose, Main [Built 12/11/09 and Before]

3085857

Unavailable

Hose, Main [Built 12/12/09 and After]

3090291

Unavailable

THERMOSTAT

3084940

$91.99

Bolt, Flange [Built 12/14/09 and Before]

3084877

Unavailable

Bolt, Flange [Built 12/15/09 and After]

3088064

Unavailable

WASHER, SEAL

3084942

Unavailable

IMPELLER

3084935

$39.99

GASKET, ALUM

3083138

Unavailable

NUT, SELF LOCK

3085077

$9.59

GASKET, WATER PUMP

3086840

$6.39

Cover, Water Pump [Built 12/14/09 and Before]

3085351

Unavailable

Cover, Water Pump [Built 12/15/09 and After]

3090292

Unavailable

Bolt, Flange

3085359

$2.39

Washer, Flat [Built 12/14/09 and Before]

7555998

$1.49

Gasket, Copper [Built 12/15/09 and After]

3088030

$4.79
