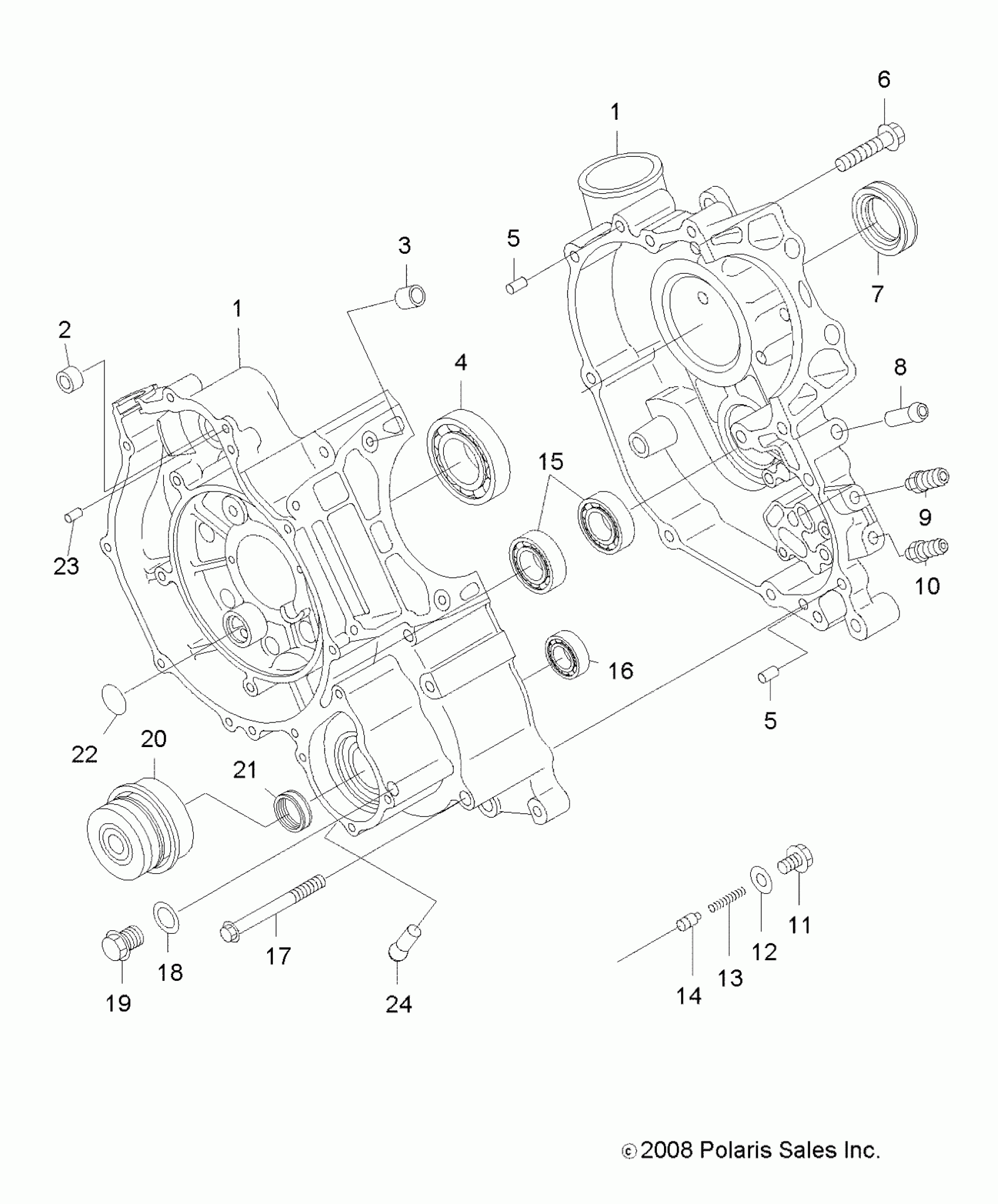

Polaris SPORTSMAN 500 HO - A10MH50AJ/AX/AZ ENGINE, CRANKCASE - A10MH50AJ/AX/AZ (49ATVCRANKCASE09SP500) Diagram

#

Description
Price

1

ASM., CRANKCASE [INCL. 2,4,5,7,8,15-17,20,21,23,24]

3089240

$970.19

1

ASM., CRANKCASE [INCL. 2,4,5,7,8,15-17,20,21,23,24]

3089240

$970.19

2

BUSHING, STARTER

3083669

Unavailable

3

PIPE, KNOCK

3087266

Unavailable

4

BEARING, BALL

3080676

$39.99

5

Pin, Dowel

3084840

Unavailable

5

Pin, Dowel

3084840

Unavailable

6

Asm., Screw and Washer

3084205

$3.99

7

SEAL, OIL

3084839

$27.99

8

PIPE, AIR BREATHER

3085525

Unavailable

9

UNION

3087154

Unavailable

10

Union

3084842

Unavailable

11

PLUG

3084845

Unavailable

12

GASKET, ALUMINUM

3089450

$4.79

13

SPRING

3084844

$3.99

14

VALVE, ONE WAY

3086810

Unavailable

15

BEARING, BALL

3084834

$23.99

16

BEARING, BALL

3084835

Unavailable

17

BOLT, FLANGE

3084841

Unavailable

18

GASKET

3082956

$4.84

19

PLUG

3086749

Unavailable

20

SEAL, MECHANICAL

3084837

$68.79

21

SEAL, OIL

3084836

Unavailable

22

O-RING

3084847

$6.39

23

PIN, DOWEL

3086838

$7.19

24

PIPE, PULSE

3083798

$9.52
