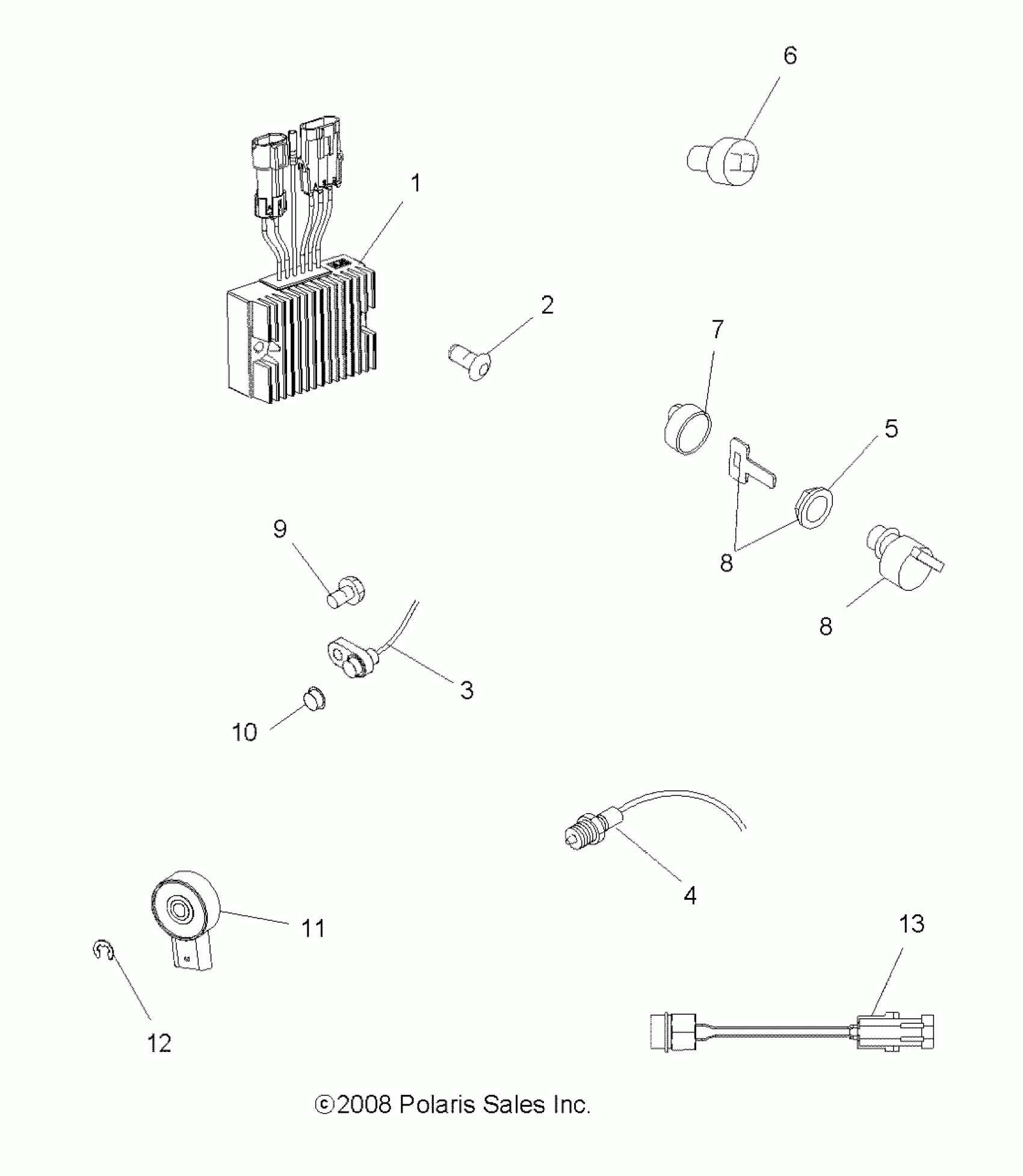

Polaris SPORTSMAN 500 HO - A10MH50AJ/AX/AZ ELECTRICAL, SWITCHES, SENSORS and ECM - A10MH50AJ/AX/AZ (49ATVELECT09SP500) Diagram

RECTIFIER/REGULATOR

4012192

$211.99

Screw

7512084

$1.49

Sensor, Hall Effect

4010298

$111.99

SENSOR, THERMO [ENGINE THERMAL]

3085352

$127.99

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

SWITCH [BRAKE PRESSURE]

4110164

Unavailable

KEY SWITCH KEY COVER

5433534

$12.35

SWITCH, KEY, 3 POSITION [INCL. 5,7, AND KEY]

4012165

$104.24

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

SWITCH, KEY, 3 POSITION [INCL. 5,7, AND KEY]

4012165

$104.24

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

Screw

7517658

$5.59

CAP

5132382

$23.99

SWITCH [GEAR POSITION]

3233835

Unavailable

RING, RETAINING

3233834

$10.39

SENSOR, THERMAL HARNESS [RADIATOR]

4010808

$87.99
