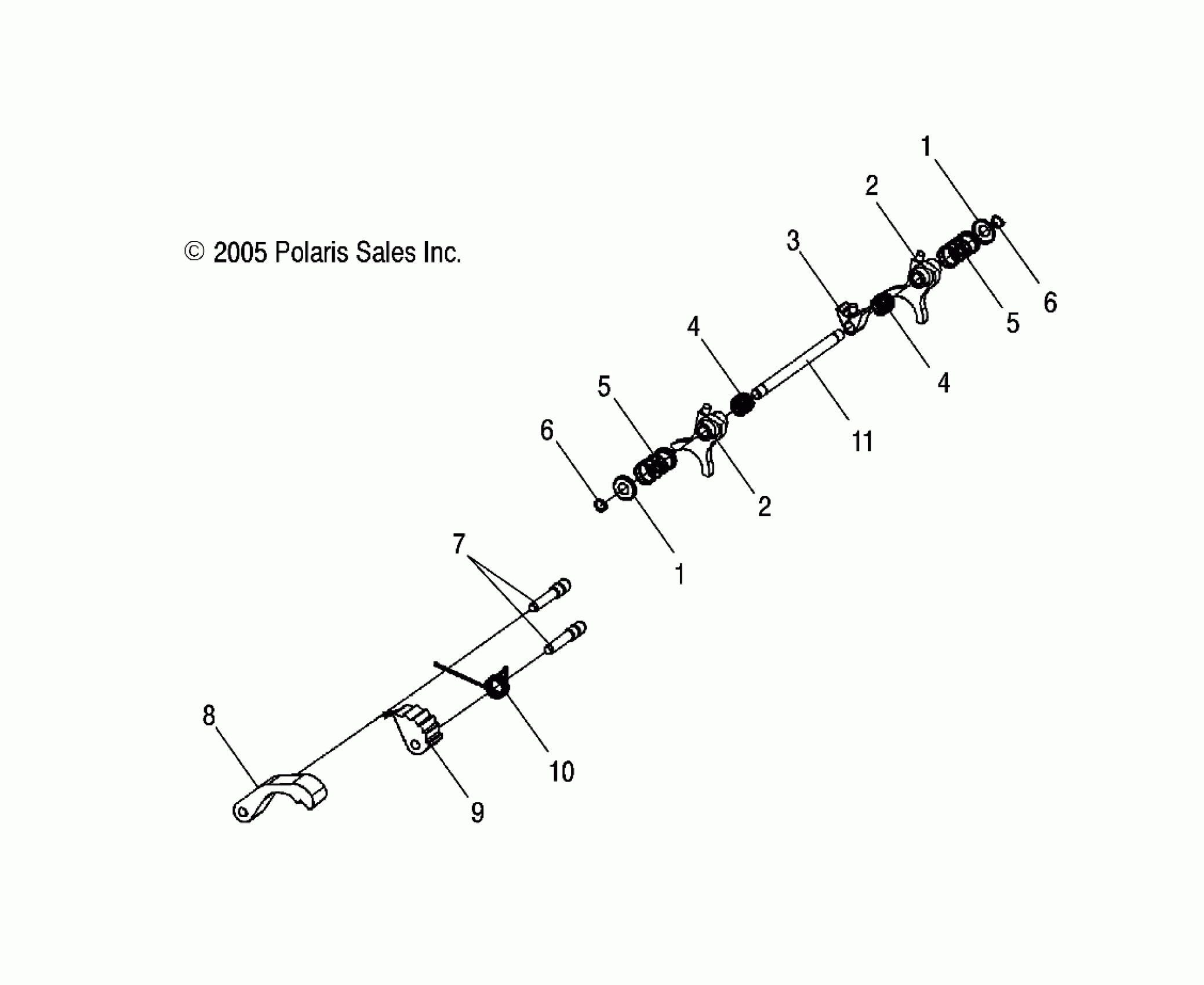

Polaris SPORTSMAN 500 HO - A10MH50AJ/AX/AZ DRIVE TRAIN, SHIFT FORKS - A10MH50AJ/AX/AZ (4999200059920005D02) Diagram

#

Description
Price

-

Asm., Gearcase

1332626

Unavailable

1

WASHER-CUP

3234091

$9.52

1

WASHER-CUP

3234091

$9.52

2

FORK, SHIFT

3234077

$182.13

2

FORK, SHIFT

3234077

$182.13

3

COLLAR-SHIFT

3234073

$31.75

4

SPRING, COMPRESSION

3234089

$28.32

4

SPRING, COMPRESSION

3234089

$28.32

5

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

5

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

6

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

6

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

7

PIN, DOWEL

3233432

$7.14

8

SHOE, CHAIN TENSIONER

3233433

$32.37

9

CAM, CHAIN TENSIONER

3233434

$13.75

10

SPRING, TORSION

3233431

$24.27

11

RAIL, SHIFT SHAFT

3234079

$28.32
